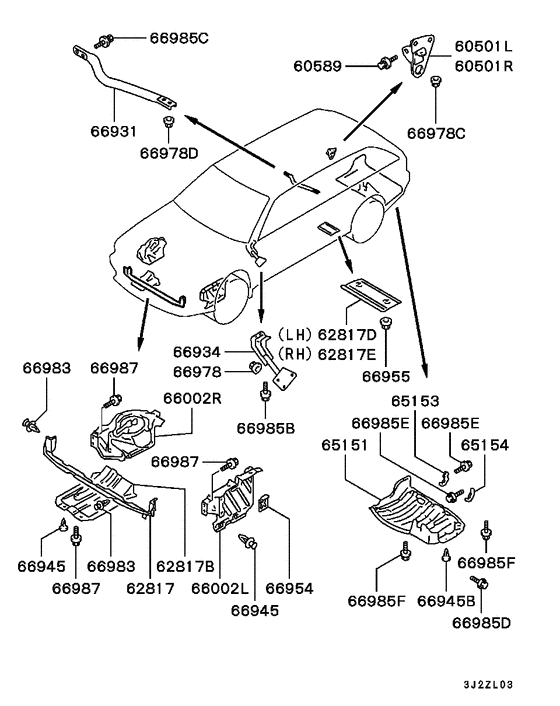

Loose panel Diagram Mitsubishi SIGMA WAGON
- Year
- 1992 - 1994
- Sales region
- EUR/MMAL
- Note
- V6-SOHC-MPI,4FA/T EC
- drive
- 2WD
- transmission
- 4FA/T
- grade
- EC
- body
- STATION WAGON
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
60501L
|
60501L
AW336137 HOOK, TRACTION, LH |
AW336137 |
US $118.40 |
||
|
60501R
|
60501R
AW336028 HOOK, TRACTION, RH |
AW336028 |
US $118.40 |
||
|
60589
|
60589
MB296029 BOLT, TRACTION HOOKWasher assembled,10x32 |
MB296029 |
US $3.85 |
||
|
62817
|
62817
MB656680 PANEL, AIR GUIDE |
MB656680 |
US $37 |
||
|
62817D
|
62817D
MB865983
PANEL,AIR GUIDE,LH
|
MB865983 |
— | ||
|
62817E
|
62817E
MB865984
PANEL,AIR GUIDE,RH
|
MB865984 |
— | ||
|
65151
|
65151
AW334846
PANEL,RR FLOOR COVER
|
AW334846 |
— | ||
|
65153
|
65153
AW334847
PANEL,RR FLOOR SIDE
|
AW334847 |
— | ||
|
65154
|
65154
AW334848
PANEL,TRUNK ROOM FLOOR SIDE
|
AW334848 |
— | ||
|
66002L
|
66002L
AW325291 COVER, ENG ROOM SIDE, LH |
AW325291 |
US $76.22 |
||
|
66002R
|
66002R
MB656752 COVER, ENG ROOM SIDE, RH |
MB656752 |
US $45.88 |
||
|
66931
|
66931
AW331099 BAR, ENG ROOM UNDER GUARD |
AW331099 |
US $127.28 |
||
|
66934
|
66934
MB835077
STAY,BODY LOOSE PANEL
|
MB835077 |
— | ||
|
66945
|
66945
MB547806 CLIP, SPLASH SHIELD8 |
MB547806 |
from US $1.68 |
||
|
66945B
|
66945B
MB887567 CLIP, FR BUMPER |
MB887567 |
US $3.42 |
||
|
66954
|
66954
MB656759
PLUG, ENG ROOM COVER
|
MB656759 |
— | ||
| replacement | |||||
|
66954
|
66954
MB934129 PLUG, ENG ROOM COVERPlastic |
MB934129 |
from US $6.84 |
||
|
66955
|
66955
MS440517 NUT, AIR CLEANERWasher assembled,6 |
MS440517 |
from US $1.40 |
||
|
66978
|
66978
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
66978C
|
66978C
MS440524 NUT, FUEL TANKWasher assembled,10 |
MS440524 |
US $2.46 |
||
|
66978D
|
66978D
AW337376 NUT, BODY LOOSE PANEL8 |
AW337376 |
US $2.66 |
||
|
66983
|
66983
MB406893 CLIP, SIDE AIR DAM6 |
MB406893 |
from US $2.30 |
||
|
66985B
|
66985B
MS240145 BOLT, ENG CONTROL EQUIPWasher assembled,8x20 |
MS240145 |
from US $1.42 |
||
|
66985C
|
66985C
AW337377 BOLT, BODY LOOSE PANEL8x30 |
AW337377 |
US $2.96 |
||
|
66985D
|
66985D
MS100238 BOLT, HOOD LOCKINGFlange,6x14 |
MS100238 |
from US $1.15 |
||
|
66985E
|
66985E
MS240122 BOLT, ENG FR MOUNTINGWasher assembled,6x20 |
MS240122 |
from US $0.84 |
||
|
66985F
|
66985F
MS240156 BOLTWasher assembled,6x20 |
MS240156 |
from US $0.78 |
||
|
66987
|
66987
MS240158 BOLT, FUEL TANKWasher assembled,8x20 |
MS240158 |
US $3.69 |
||
