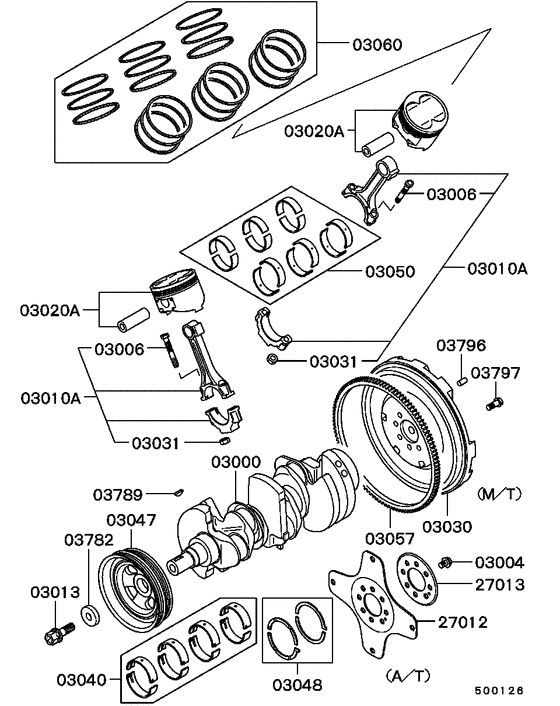

Piston & crankshaft Diagram Mitsubishi SIGMA WAGON
- Year
- 1992 - 1994
- Sales region
- EUR/MMAL
- Note
- V6-SOHC-MPI,4FA/T EC
- drive
- 2WD
- transmission
- 4FA/T
- grade
- EC
- body
- STATION WAGON
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
03000
|
03000
MD144525 CRANKSHAFT |
MD144525 |
US $1,509.68 |
||
|
03004
|
03004
MD720036 BOLT, A/T DRIVE PLATEFlange,10x16.5 |
MD720036 |
US $5.47 |
||
|
03006
|
03006
MD096144
BOLT, CONNROD
|
MD096144 |
— | ||
| replacement | |||||
|
03006
|
03006
MN149212 BOLT, CONNROD9x58.5 |
MN149212 |
from US $3.78 |
||
|
03010A
|
03010A
MD096043 CONNECTING ROD ASSY |
MD096043 |
from US $150.27 |
||
|
03013
|
03013
MD095201
CENTER BOLT, CRANKSHAFT PULLEY
|
MD095201 |
— | ||
| replacement | |||||
|
03013
|
03013
1101A022 CENTER BOLT, CRANKSHAFT PULLEY14x40 |
1101A022 |
from US $9.30 |
||
|
03020A
|
03020A
MD194548 PISTON & PIN ASSYStd b |
MD194548 |
US $155.40 |
||
|
03020A
|
03020A
MD197326 PISTON & PIN ASSYO/size 0.25 |
MD197326 |
US $149.48 |
||
|
03020A
|
03020A
MD197327 PISTON & PIN ASSYO/size 0.50 |
MD197327 |
US $155.40 |
||
|
03020A
|
03020A
MD197328
PISTON & PIN ASSY
|
MD197328 |
— | ||
|
03020A
|
03020A
MD197329 PISTON & PIN ASSYO/size 1.00 |
MD197329 |
US $155.40 |
||
|
03031
|
03031
MD006704 NUT, CONNROD9 |
MD006704 |
from US $4.33 |
||
|
03040
|
03040
MD105269 BEARING SET, CRANKSHAFTPlain,std |
MD105269 |
US $204.24 |
||
|
03047
|
03047
MD138339 PULLEY, CRANKSHAFTRibbed |
MD138339 |
US $414.96 |
||
|
03048
|
03048
MD116890
THRUST BEARING SET, CRANKSHAFT
|
MD116890 |
— | ||
| replacement | |||||
|
03048
|
03048
1052A271 THRUST BEARING SET, CRANKSHAFTPlain |
1052A271 |
from US $15.97 |
||
|
03050
|
03050
MD105277
BEARING SET, CONNROD
|
MD105277 |
— | ||
|
03060
|
03060
MD158334
RING SET, PISTON
|
MD158334 |
— | ||
|
03060
|
03060
MD158335 RING SET, PISTONO/size 0.25 |
MD158335 |
US $416.42 |
||
|
03060
|
03060
MD158336 RING SET, PISTONO/size 0.50 |
MD158336 |
US $390.73 |
||
|
03060
|
03060
MD158337
RING SET, PISTON
|
MD158337 |
— | ||
|
03060
|
03060
MD158338
RING SET, PISTON
|
MD158338 |
— | ||
|
03782
|
03782
MD096930
WASHER, CRANKSHAFT PULLEY
|
MD096930 |
— | ||
| replacement | |||||
|
03782
|
03782
MR994412 WASHER, CRANKSHAFT PULLEY14.5 |
MR994412 |
from US $4.97 |
||
|
03789
|
03789
MD008959 KEY, CRANKSHAFT |
MD008959 |
from US $2.03 |
||
|
03797
|
03797
MD113400 BOLT, A/T DRIVE PLATEFlange,10x25 |
MD113400 |
from US $3.26 |
||
|
27012
|
27012
MD740894 PLATE, A/T DRIVE |
MD740894 |
US $124.32 |
||
|
27013
|
27013
MD719871
PLATE, A/T DRIVE PLATE ADAPTER
|
MD719871 |
— | ||
| replacement | |||||
|
27013
|
27013
MD760089 PLATE, A/T DRIVE PLATE ADAPTER |
MD760089 |
from US $8.33 |
||
