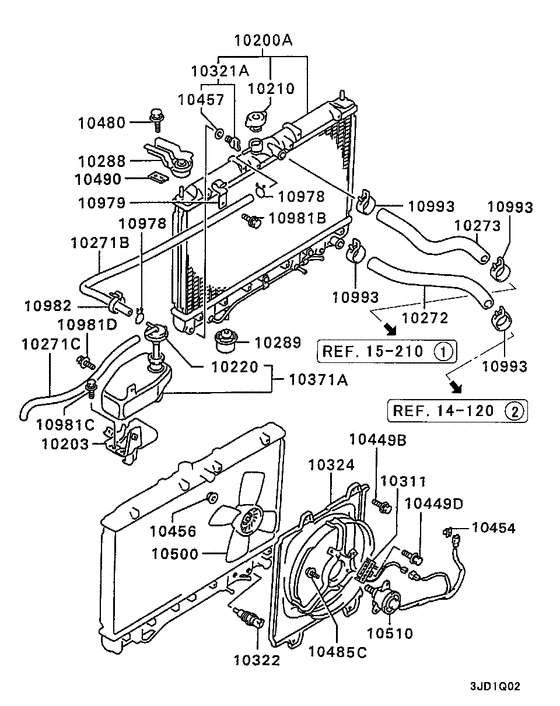

Radiator,hose & condenser tank Diagram Mitsubishi SIGMA WAGON
- Year
- 1992 - 1994
- Sales region
- EUR/MMAL
- Note
- V6-SOHC-MPI,4FA/T EC
- drive
- 2WD
- transmission
- 4FA/T
- grade
- EC
- body
- STATION WAGON
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
10200A
|
10200A
AW326701 RADIATOR ASSY |
AW326701 |
US $1,656 |
||
|
10203
|
10203
MB660247 BRACKET, RADIATOR CONDENSER TANK |
MB660247 |
US $66.60 |
||
|
10210
|
10210
AW332158
CAP,RADIATOR
|
AW332158 |
— | ||
|
10220
|
10220
MB605147 CAP, RADIATOR CONDENSER TANK |
MB605147 |
US $10.95 |
||
|
10271B
|
10271B
MS600699 HOSE, RADIATOR CONDENSER TANK7x10000 |
MS600699 |
US $62.90 |
||
|
10271C
|
10271C
MB660676
HOSE, RADIATOR CONDENSER TANK
|
MB660676 |
— | ||
|
10272
|
10272
AW321582 HOSE, RADIATOR, LWR |
AW321582 |
US $78.44 |
||
|
10273
|
10273
AW321581 HOSE, RADIATOR, UPR |
AW321581 |
US $62.90 |
||
|
10288
|
10288
MB660041 INSULATOR, RADIATOR SUPPORT, UPR |
MB660041 |
US $11.63 |
||
|
10289
|
10289
MB605172
INSULATOR, RADIATOR SUPPORT, LWR
|
MB605172 |
— | ||
|
10311
|
10311
MB605220 RESISTOR,RADIATOR SHROUD BLOWER |
MB605220 |
US $52.67 |
||
|
10321A
|
10321A
MB597892 PLUG ASSY, RADIATOR |
MB597892 |
from US $3.61 |
||
|
10322
|
10322
MB660663 SENSOR, RADIATOR WATER TEMPERATURE85 c |
MB660663 |
US $81.40 |
||
|
10324
|
10324
MB660015
SHROUD, COOLING FAN
|
MB660015 |
— | ||
|
10371A
|
10371A
MB660245
TANK ASSY, RADIATOR CONDENSER
|
MB660245 |
— | ||
|
10449B
|
10449B
MF243622 BOLT, ROCKER COVERWasher assembled,6x12 |
MF243622 |
from US $1.33 |
||
|
10449D
|
10449D
MF240024 BOLT, FUEL TANKWasher assembled,6x14 |
MF240024 |
US $2.60 |
||
|
10454
|
10454
MU802644 CLIP, GEARSHIFT LINK |
MU802644 |
US $3.11 |
||
|
10456
|
10456
MB356066
NUT, RADIATOR
|
MB356066 |
— | ||
| replacement | |||||
|
10456
|
10456
MB906064 NUT, RADIATOR |
MB906064 |
from US $1.74 |
||
|
10457
|
10457
MB007701 O-RING, RADIATORD=5 |
MB007701 |
from US $3.32 |
||
|
10480
|
10480
MU241006 BOLT, RADIATOR SUPPORTGimlet,8x20 |
MU241006 |
US $3.01 |
||
|
10485C
|
10485C
MF350767 SCREW, FUEL FILLER LID PANELWasher assembled,5x10 |
MF350767 |
US $2.05 |
||
|
10490
|
10490
AW333251 CUSHION, RADIATOR SUPPORT |
AW333251 |
US $4.59 |
||
|
10500
|
10500
MB660019
FAN,COOLING
|
MB660019 |
— | ||
|
10510
|
10510
MB660017
MOTOR,COOLING FAN
|
MB660017 |
— | ||
|
10978
|
10978
MS660205 CLIP, RADIATOR PIPINGD=11.5 |
MS660205 |
from US $1.33 |
||
|
10979
|
10979
MB605066 CLAMP, RADIATOR CONDENSER TANK12 |
MB605066 |
US $6.70 |
||
|
10981B
|
10981B
MF243622 BOLT, ROCKER COVERWasher assembled,6x12 |
MF243622 |
from US $1.33 |
||
|
10981C
|
10981C
MS240145 BOLT, ENG CONTROL EQUIPWasher assembled,8x20 |
MS240145 |
from US $1.42 |
||
|
10981D
|
10981D
MF196222 BOLT, RADIATOR CONDENSER TANKTapping,6x16 |
MF196222 |
US $2.96 |
||
|
10982
|
10982
MB249340 BAND, FUEL TANK PROTECTORL=219.5 |
MB249340 |
US $2.74 |
||
|
10993
|
10993
AW300924 CLIP, RADIATOR PIPING |
AW300924 |
US $5.33 |
||
|
