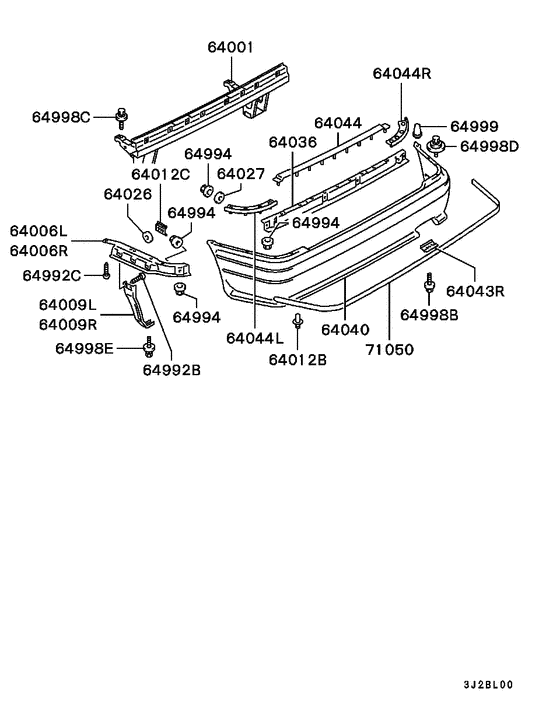

Rear bumper & support Diagram Mitsubishi SIGMA WAGON
- Year
- 1992 - 1994
- Sales region
- EUR/MMAL
- Note
- V6-SOHC-MPI,4FA/T EC
- drive
- 2WD
- transmission
- 4FA/T
- grade
- EC
- body
- STATION WAGON
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64001
|
64001
AW335924 REINFORCEMENT, RR BUMPER |
AW335924 |
US $480.48 |
||
|
64006L
|
64006L
AW330715 BRACKET, RR BUMPER SIDE, UPR LH |
AW330715 |
US $110.26 |
||
|
64006R
|
64006R
AW330716 BRACKET, RR BUMPER SIDE, UPR RH |
AW330716 |
US $110.26 |
||
|
64009L
|
64009L
AW324351 BRACKET, RR BUMPER SIDE, LWR LH |
AW324351 |
US $93.98 |
||
|
64009R
|
64009R
AW324352 BRACKET, RR BUMPER SIDE, LWR RH |
AW324352 |
US $93.98 |
||
|
64012B
|
64012B
MB271999 CLIP, FR BUMPER12.8 |
MB271999 |
from US $1.58 |
||
|
64012C
|
64012C
MB325299 CLIP, FR BUMPER0.3 |
MB325299 |
US $4.24 |
||
|
64026
|
64026
MB369257 GASKET, FR BUMPER |
MB369257 |
US $1.92 |
||
|
64027
|
64027
MB062076 GASKET, FR BUMPER REINF |
MB062076 |
US $4.44 |
||
|
64036
|
64036
AW337670 PLATE, RR BUMPER FACE SUPPORT |
AW337670 |
US $162.80 |
||
|
64040
|
64040
AW326335 FACE, RR BUMPER |
AW326335 |
US $1,177.90 |
||
|
64043R
|
64043R
AW324299 PLATE, RR BUMPER, LWR RH |
AW324299 |
US $10.66 |
||
|
64044
|
64044
AW327886 PLATE, RR BUMPER, UPR |
AW327886 |
US $204.24 |
||
|
64044L
|
64044L
AW329579 PLATE, RR BUMPER, UPR LH |
AW329579 |
US $92.50 |
||
|
64044R
|
64044R
AW329580 PLATE, RR BUMPER, UPR RH |
AW329580 |
US $92.50 |
||
|
64992B
|
64992B
MF453030 SCREW, ENG CONTROL EQUIPTapping,5x10 |
MF453030 |
from US $0.18 |
||
|
64992C
|
64992C
MS452348 SCREW, STEERING COLUMN |
MS452348 |
from US $2.34 |
||
|
64994
|
64994
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
64998B
|
64998B
MB403510 BOLT, FR BUMPERFlange,6x20 |
MB403510 |
US $2.96 |
||
|
64998C
|
64998C
MS240149 BOLT, FR BUMPERWasher assembled,10x25 |
MS240149 |
US $3.85 |
||
|
64998D
|
64998D
MB612553 BOLT, RR BUMPERWasher assembled,6x16 |
MB612553 |
from US $1.74 |
||
|
64998E
|
64998E
MS240602 BOLT, FR BUMPERWasher assembled,6x20 |
MS240602 |
from US $0.98 |
||
|
64999
|
64999
MU480035 GROMMET, ABS CONTROL EQUIPScrew,6 |
MU480035 |
from US $0.78 |
||
|
71050
|
71050
AW326352 MOULDING, RR BUMPER |
AW326352 |
US $133.20 |
