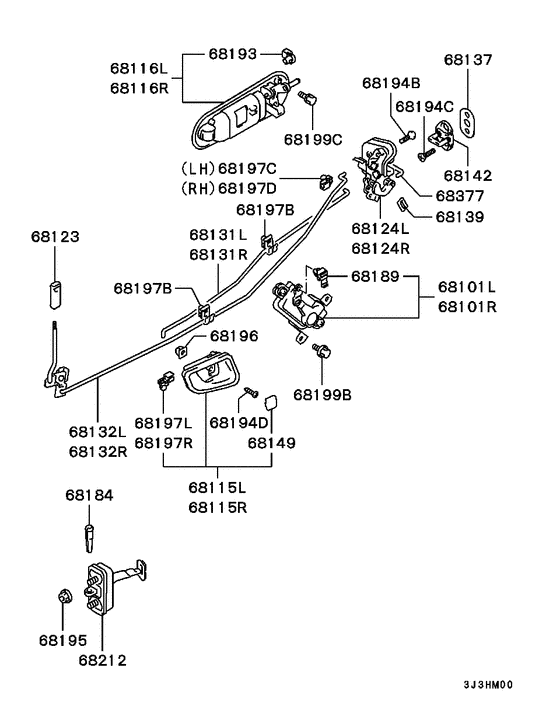

Rear door locking Diagram Mitsubishi SIGMA WAGON
- Year
- 1992 - 1994
- Sales region
- EUR/MMAL
- Note
- V6-SOHC-MPI,4FA/T EC
- drive
- 2WD
- transmission
- 4FA/T
- grade
- EC
- body
- STATION WAGON
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68101L
|
68101L
MB517615 ACTUATOR, RR DOOR LOCK, LH |
MB517615 |
US $173.16 |
||
|
68101L
|
68101L
MB546739 ACTUATOR, RR DOOR LOCK |
MB546739 |
US $167.24 |
||
|
68101R
|
68101R
MB517616 ACTUATOR, RR DOOR LOCK, RH |
MB517616 |
US $173.16 |
||
|
68101R
|
68101R
MB546739 ACTUATOR, RR DOOR LOCK |
MB546739 |
US $167.24 |
||
|
68115L
|
68115L
MB578695 HANDLE, FR DOOR INSIDE, LH |
MB578695 |
US $68.08 |
||
|
68115R
|
68115R
MB578696 HANDLE, FR DOOR INSIDE, RH |
MB578696 |
US $68.08 |
||
|
68116L
|
68116L
11689EA1 HANDLE, RR DOOR OUTSIDE, LH |
11689EA1 |
US $391.66 |
||
|
68116L
|
68116L
11689EB2
HANDLE,RR DOOR OUTSIDE,LH
|
11689EB2 |
— | ||
|
68116L
|
68116L
11689EG1 HANDLE, RR DOOR OUTSIDE, LH |
11689EG1 |
US $419.33 |
||
|
68116L
|
68116L
11689ES1
HANDLE,RR DOOR OUTSIDE,LH
|
11689ES1 |
— | ||
|
68116L
|
68116L
11689EW1
HANDLE,RR DOOR OUTSIDE,LH
|
11689EW1 |
— | ||
|
68116L
|
68116L
11689FR4
HANDLE,RR DOOR OUTSIDE,LH
|
11689FR4 |
— | ||
|
68116L
|
68116L
11689GB6
HANDLE,RR DOOR OUTSIDE,LH
|
11689GB6 |
— | ||
|
68116L
|
68116L
11689GG3 HANDLE, RR DOOR OUTSIDE, LH |
11689GG3 |
US $400.40 |
||
|
68116L
|
68116L
11689GS4
HANDLE,RR DOOR OUTSIDE,LH
|
11689GS4 |
— | ||
|
68116R
|
68116R
11690EA1 HANDLE, RR DOOR OUTSIDE, RH |
11690EA1 |
US $391.66 |
||
|
68116R
|
68116R
11690EB2
HANDLE,RR DOOR OUTSIDE,RH
|
11690EB2 |
— | ||
|
68116R
|
68116R
11690EG1 HANDLE, RR DOOR OUTSIDE, RH |
11690EG1 |
US $391.66 |
||
|
68116R
|
68116R
11690ES1
HANDLE,RR DOOR OUTSIDE,RH
|
11690ES1 |
— | ||
|
68116R
|
68116R
11690EW1
HANDLE,RR DOOR OUTSIDE,RH
|
11690EW1 |
— | ||
|
68116R
|
68116R
11690FR4
HANDLE,RR DOOR OUTSIDE,RH
|
11690FR4 |
— | ||
|
68116R
|
68116R
11690GB6
HANDLE,RR DOOR OUTSIDE,RH
|
11690GB6 |
— | ||
|
68116R
|
68116R
11690GG3 HANDLE, RR DOOR OUTSIDE, RH |
11690GG3 |
US $400.40 |
||
|
68116R
|
68116R
11690GS4
HANDLE,RR DOOR OUTSIDE,RH
|
11690GS4 |
— | ||
|
68123
|
68123
MB578690 KNOB, FR DOOR INSIDE LOCK |
MB578690 |
US $4 |
||
|
68124L
|
68124L
MB676265 LATCH, RR DOOR, LH |
MB676265 |
US $120.62 |
||
|
68124R
|
68124R
MB676266 LATCH, RR DOOR, RH |
MB676266 |
US $120.62 |
||
|
68131L
|
68131L
MB626717 ROD, RR DOOR INSIDE HANDLE, LH |
MB626717 |
US $12.58 |
||
|
68131R
|
68131R
MB626718 ROD, RR DOOR INSIDE HANDLE, RH |
MB626718 |
US $12.58 |
||
|
68132L
|
68132L
MB676269 ROD, RR DOOR INSIDE LOCK, LH |
MB676269 |
US $14.65 |
||
|
68132R
|
68132R
MB676270 ROD, RR DOOR INSIDE LOCK, RH |
MB676270 |
US $14.65 |
||
|
68137
|
68137
MB574974 SHIM, FR DOOR LATCH STRIKER1.6 |
MB574974 |
US $4.65 |
||
|
68139
|
68139
AW332113 COVER, RR DOOR CHILD LOCK KNOB |
AW332113 |
US $2.96 |
||
|
68142
|
68142
MB655369 STRIKER, FR DOOR LATCH |
MB655369 |
US $13.02 |
||
|
68149
|
68149
MB626285 CAP, FR DOOR INSIDE HANDLE COVER |
MB626285 |
US $6.07 |
||
|
68184
|
68184
MB632510 SPRING PIN, FR DOOR LOCKING6x27 |
MB632510 |
US $3.56 |
||
|
68189
|
68189
MU481203 HOLDER, RR DOOR LOCK |
MU481203 |
US $2.96 |
||
|
68189
|
68189
MU481204 HOLDER, RR DOOR LOCK |
MU481204 |
US $2.96 |
||
|
68193
|
68193
MU481090 SNAP, FR DOOR LOCKING |
MU481090 |
from US $0.82 |
||
|
68194B
|
68194B
MB632457 SCREW, FR DOOR LOCKINGMachine,6x8 |
MB632457 |
US $3.26 |
||
|
68194C
|
68194C
MU340028
SCREW, FR DOOR LOCKING
|
MU340028 |
— | ||
| replacement | |||||
|
68194C
|
68194C
MU340023 SCREW, FR DOOR LOCKINGWasher assembled(plus),8x22.5 |
MU340023 |
from US $0.96 |
||
|
68194D
|
68194D
MF453333 SCREW, STEERING COLUMN COVERTapping,5x16 |
MF453333 |
US $2.22 |
||
|
68195
|
68195
MS440512 NUT, AIR SPOILERWasher assembled,6 |
MS440512 |
US $2.46 |
||
|
68196
|
68196
MS480002 GROMMET, HOOD LOCKINGScrew,5 |
MS480002 |
from US $1.29 |
||
|
68197B
|
68197B
MU481161 CLIP, RR DOOR LOCKING |
MU481161 |
US $4.38 |
||
|
68197C
|
68197C
MU481193 CLIP, FR DOOR LOCKING6 |
MU481193 |
from US $0.66 |
||
|
68197D
|
68197D
MU481194 CLIP, FR DOOR LOCKING6 |
MU481194 |
from US $0.80 |
||
|
68197L
|
68197L
MS470434 CLIP, FR DOOR LOCKING4.2 |
MS470434 |
from US $2.07 |
||
|
68197R
|
68197R
MS470433 CLIP, PTO GEARSHIFT LINK4.2 |
MS470433 |
US $4.24 |
||
|
68199B
|
68199B
MB321590
Bolt
|
MB321590 |
— | ||
| replacement | |||||
|
68199B
|
68199B
MU240087 BOLTWasher assembled,6x10 |
MU240087 |
from US $1.31 |
||
|
68199C
|
68199C
MF240022 BOLT, ROCKER COVERWasher assembled,6x10 |
MF240022 |
US $2.05 |
||
|
68212
|
68212
MB547025
CHECK, RR DOOR
|
MB547025 |
— | ||
|
68377
|
68377
AW332112 PROTECTOR, RR DOOR LOCK ACTUATOR |
AW332112 |
US $3.55 |
||
