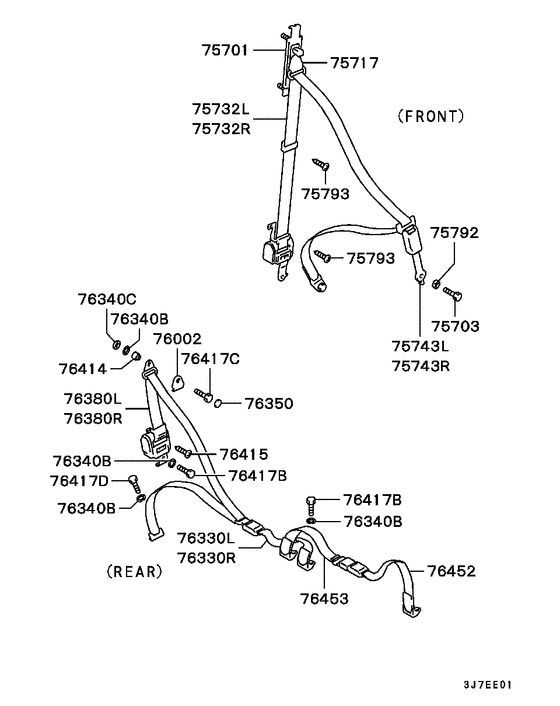

Seat belt (SEAT BELT) Diagram Mitsubishi SIGMA WAGON
- Year
- 1992 - 1994
- Sales region
- EUR/MMAL
- Note
- V6-SOHC-MPI,4FA/T EC
- drive
- 2WD
- transmission
- 4FA/T
- grade
- EC
- body
- STATION WAGON
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75701
|
75701
MB777923 ADJUSTER, FR SEAT BELT SLIDE |
MB777923 |
US $59.20 |
||
|
75703
|
75703
AW300926 BOLT, FR SEAT BELT7/16x1 |
AW300926 |
US $3.26 |
||
|
75717
|
75717
AW334514
COVER,FR SEAT BELT SASH GUIDE
|
AW334514 |
— | ||
|
75732L
|
75732L
AW329515
SEAT BELT,FR SEAT,OTR LH
|
AW329515 |
— | ||
|
75732L
|
75732L
AW335903
SEAT BELT,FR SEAT,OTR LH
|
AW335903 |
— | ||
|
75732L
|
75732L
AW337565
SEAT BELT,FR SEAT,OTR LH
|
AW337565 |
— | ||
|
75732R
|
75732R
AW329516
SEAT BELT,FR SEAT,OTR RH
|
AW329516 |
— | ||
|
75732R
|
75732R
AW335904
SEAT BELT,FR SEAT,OTR RH
|
AW335904 |
— | ||
|
75732R
|
75732R
AW337566
SEAT BELT,FR SEAT,OTR RH
|
AW337566 |
— | ||
|
75743L
|
75743L
AW335096 SEAT BELT, FR SEAT, INR |
AW335096 |
US $85.10 |
||
|
75743L
|
75743L
AW336415 SEAT BELT, FR SEAT, INR |
AW336415 |
US $87.32 |
||
|
75743R
|
75743R
AW335096 SEAT BELT, FR SEAT, INR |
AW335096 |
US $85.10 |
||
|
75743R
|
75743R
AW336415 SEAT BELT, FR SEAT, INR |
AW336415 |
US $87.32 |
||
|
75792
|
75792
00120383
WASHER, FR SEAT BELT
|
00120383 |
— | ||
| replacement | |||||
|
75792
|
75792
120383
no 'Representative Part Name'
|
120383 |
— | ||
|
75793
|
75793
MF453030 SCREW, ENG CONTROL EQUIPTapping,5x10 |
MF453030 |
from US $0.18 |
||
|
76002
|
76002
04255881
PLUG, RR SEAT BELT
|
04255881 |
— | ||
| replacement | |||||
|
76002
|
76002
4255881
no 'Representative Part Name'
|
4255881 |
— | ||
|
76330L
|
76330L
AW336558 SEAT BELT, RR SEAT, INR |
AW336558 |
US $69.56 |
||
|
76330L
|
76330L
AW338855
SEAT BELT,RR SEAT,INR
|
AW338855 |
— | ||
|
76330R
|
76330R
AW336558 SEAT BELT, RR SEAT, INR |
AW336558 |
US $69.56 |
||
|
76330R
|
76330R
AW338855
SEAT BELT,RR SEAT,INR
|
AW338855 |
— | ||
|
76340B
|
76340B
00120383
WASHER, FR SEAT BELT
|
00120383 |
— | ||
| replacement | |||||
|
76340B
|
76340B
120383
no 'Representative Part Name'
|
120383 |
— | ||
|
76340C
|
76340C
03714313
WASHER, RR SEAT BELT
|
03714313 |
— | ||
| replacement | |||||
|
76340C
|
76340C
3714313
no 'Representative Part Name'
|
3714313 |
— | ||
|
76350
|
76350
03883394
CAP, RR SEAT BELT
|
03883394 |
— | ||
| replacement | |||||
|
76350
|
76350
3883394 no 'Representative Part Name' |
3883394 |
US $2.96 |
||
|
76380L
|
76380L
AW336559
SEAT BELT,RR SEAT,OTR LH
|
AW336559 |
— | ||
|
76380L
|
76380L
AW338847
SEAT BELT,RR SEAT,OTR LH
|
AW338847 |
— | ||
|
76380R
|
76380R
AW336560
SEAT BELT,RR SEAT,OTR RH
|
AW336560 |
— | ||
|
76380R
|
76380R
AW338848
SEAT BELT,RR SEAT,OTR RH
|
AW338848 |
— | ||
|
76414
|
76414
AW313210 SPACER, RR SEAT BELT10mm |
AW313210 |
US $7.70 |
||
|
76415
|
76415
MF453030 SCREW, ENG CONTROL EQUIPTapping,5x10 |
MF453030 |
from US $0.18 |
||
|
76417B
|
76417B
AW300926 BOLT, FR SEAT BELT7/16x1 |
AW300926 |
US $3.26 |
||
|
76417C
|
76417C
03883478
BOLT, RR SEAT BELT
|
03883478 |
— | ||
| replacement | |||||
|
76417C
|
76417C
3883478 no 'Representative Part Name' |
3883478 |
US $9.32 |
||
|
76417D
|
76417D
AW335123 BOLT, RR SEAT BELT7/16-20x1.1 |
AW335123 |
US $4.14 |
||
|
76452
|
76452
AW338856
SEAT BELT,RR SEAT,INR CTR
|
AW338856 |
— | ||
|
76453
|
76453
AW334938 SEAT BELT, RR SEAT, OTR CTR |
AW334938 |
US $62.16 |
||
|
76453
|
76453
AW338857
SEAT BELT,RR SEAT,OTR CTR
|
AW338857 |
— | ||
