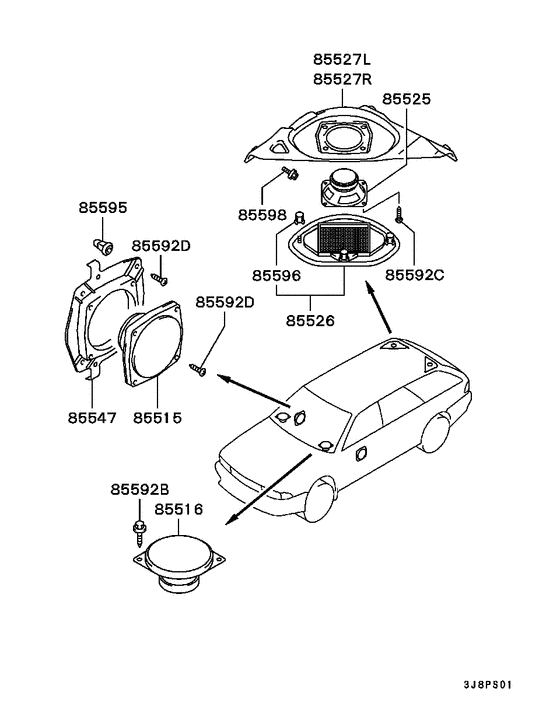

Speaker Diagram Mitsubishi SIGMA WAGON
- Year
- 1992 - 1994
- Sales region
- EUR/MMAL
- Note
- V6-SOHC-MPI,4FA/T EC
- drive
- 2WD
- transmission
- 4FA/T
- grade
- EC
- body
- STATION WAGON
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85515
|
85515
AW325843
SPEAKER,FR DOOR
|
AW325843 |
— | ||
|
85516
|
85516
MB764722 SPEAKER, FR5w,7cm |
MB764722 |
US $83.62 |
||
|
85525
|
85525
AW336850
SPEAKER,ROOF
|
AW336850 |
— | ||
|
85526
|
85526
13355GA1 GARNISH, RR SPEAKER |
13355GA1 |
US $69.56 |
||
|
85526
|
85526
14407HA1 GARNISH, RR SPEAKER |
14407HA1 |
US $71.04 |
||
|
85527L
|
85527L
AW332925 BRACKET, RR SPEAKER, LH |
AW332925 |
US $103.60 |
||
|
85527R
|
85527R
AW332926 BRACKET, RR SPEAKER, RH |
AW332926 |
US $103.60 |
||
|
85547
|
85547
MB627445 COVER, FR DOOR SPEAKER |
MB627445 |
US $19.24 |
||
|
85592B
|
85592B
MS453031
SCREW,CRUISE CONTROL ELECTRICALS
|
MS453031 |
— | ||
|
85592C
|
85592C
MF453031 SCREW 5x12Tapping,5x12 |
MF453031 |
from US $1.50 |
||
|
85592D
|
85592D
MF453031 SCREW 5x12Tapping,5x12 |
MF453031 |
from US $1.50 |
||
|
85595
|
85595
MS480012 GROMMET, FUEL TANK5 |
MS480012 |
from US $1.56 |
||
|
85596
|
85596
AW336041 CLIP, SPEAKER |
AW336041 |
US $4.29 |
||
|
85598
|
85598
MS240028 BOLT, CRUISE CONTROL EQUIPWasher assembled,6x12 |
MS240028 |
US $3.28 |
