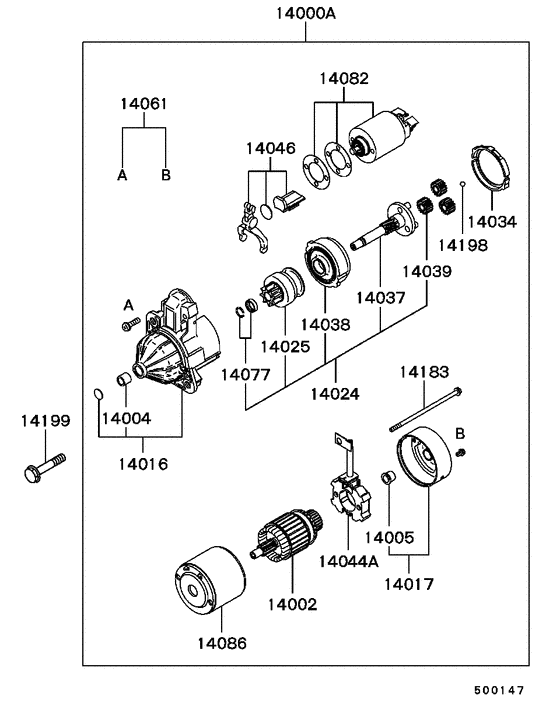

Starter (9407.3- M/T) Diagram Mitsubishi SIGMA WAGON
- Year
- 1992 - 1994
- Sales region
- EUR/MMAL
- Note
- V6-SOHC-MPI,4FA/T EC
- drive
- 2WD
- transmission
- 4FA/T
- grade
- EC
- body
- STATION WAGON
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14000A
|
14000A
MD172864 STARTER ASSY1.2kw |
MD172864 |
US $934.23 |
||
|
14002
|
14002
MD618453
ARMATURE, STARTER
|
MD618453 |
— | ||
|
14004
|
14004
MD607892 BEARING, STARTER ARMATURE, FR |
MD607892 |
US $2.59 |
||
|
14005
|
14005
MD618334 BEARING, STARTER ARMATURE, RR |
MD618334 |
US $4 |
||
|
14016
|
14016
MD618345
BRACKET, STARTER, FR
|
MD618345 |
— | ||
|
14017
|
14017
MD618507
BRACKET, STARTER, RR
|
MD618507 |
— | ||
|
14024
|
14024
MD611206
CLUTCH KIT, STARTER PINION & REDUCTION
|
MD611206 |
— | ||
|
14025
|
14025
MD611211 CLUTCH, STARTER OVERRUNNING |
MD611211 |
US $81.47 |
||
|
14034
|
14034
MD611213
GASKET, STARTER INR
|
MD611213 |
— | ||
|
14037
|
14037
MD611207 GEAR, STARTER REDUCTION |
MD611207 |
US $201.41 |
||
|
14038
|
14038
MD611209
GEAR, STARTER REDUCTION INTERNAL
|
MD611209 |
— | ||
|
14039
|
14039
MD611210
GEAR, STARTER REDUCTION PINION
|
MD611210 |
— | ||
|
14044A
|
14044A
MD611918
HOLDER ASSY, STARTER BRUSH
|
MD611918 |
— | ||
|
14046
|
14046
MD611223
LEVER KIT, STARTER PINION SHIFT
|
MD611223 |
— | ||
|
14061
|
14061
MD607887
SCREW SET, STARTER INR
|
MD607887 |
— | ||
|
14077
|
14077
MD611212
STOPPER KIT, STARTER PINION
|
MD611212 |
— | ||
|
14082
|
14082
MD611591
SWITCH KIT, STARTER MAGNETIC
|
MD611591 |
— | ||
|
14086
|
14086
MD611215
YOKE, STARTER
|
MD611215 |
— | ||
|
14183
|
14183
MD611222 BOLT, STARTER INR |
MD611222 |
US $3.85 |
||
|
14198
|
14198
MD611214
BALL, STARTER INR
|
MD611214 |
— | ||
|
14199
|
14199
MF140269 BOLT, ENG RR PLATEFlange,10x55 |
MF140269 |
from US $2.52 |
