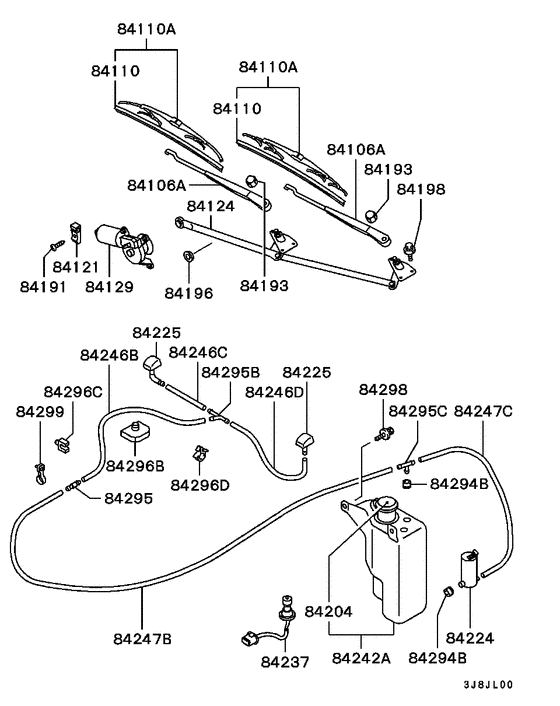

Windshield wiper & washer Diagram Mitsubishi SIGMA WAGON
- Year
- 1992 - 1994
- Sales region
- EUR/MMAL
- Note
- V6-SOHC-MPI,4FA/T EC
- drive
- 2WD
- transmission
- 4FA/T
- grade
- EC
- body
- STATION WAGON
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84106A
|
84106A
MB859016
ARM ASSY,WINDSHIELD WIPER
|
MB859016 |
— | ||
|
84106A
|
84106A
MB859017
ARM ASSY,WINDSHIELD WIPER
|
MB859017 |
— | ||
|
84110
|
84110
MB572522
BLADE,WINDSHIELD WIPER
|
MB572522 |
— | ||
|
84110
|
84110
MB821509 BLADE, WINDSHIELD WIPER500 |
MB821509 |
from US $5.42 |
||
|
84110A
|
84110A
MB683712
BLADE ASSY,WINDSHIELD WIPER
|
MB683712 |
— | ||
|
84110A
|
84110A
MB859019
BLADE ASSY,WINDSHIELD WIPER,LH
|
MB859019 |
— | ||
|
84121
|
84121
MB617725 INSULATOR, WINDSHIELD WIPER MOTOR |
MB617725 |
US $6.51 |
||
|
84124
|
84124
MB617862
LINK,WINDSHIELD WIPER
|
MB617862 |
— | ||
|
84129
|
84129
MB617845
MOTOR,WINDSHIELD WIPER
|
MB617845 |
— | ||
|
84191
|
84191
MF453031 SCREW 5x12Tapping,5x12 |
MF453031 |
from US $1.50 |
||
|
84193
|
84193
MS440074 NUT, PTO GEARSHIFT LINKCap,8 |
MS440074 |
from US $2.63 |
||
|
84196
|
84196
MU670035 PLUG, BODY30 |
MU670035 |
from US $2.77 |
||
|
84198
|
84198
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
84204
|
84204
AW335390 CAP, WINDSHIELD WASHER TANK FILLER |
AW335390 |
US $14.21 |
||
|
84224
|
84224
AW333610 MOTOR, WINDSHIELD WASHER |
AW333610 |
US $121.36 |
||
|
84225
|
84225
AW325497 NOZZLE, WINDSHIELD WASHER |
AW325497 |
US $59.20 |
||
|
84225
|
84225
AW325498 NOZZLE, WINDSHIELD WASHER |
AW325498 |
US $59.20 |
||
|
84237
|
84237
MB821463 SWITCH, WINDSHIELD WASHER TANK FLUID LEVEL |
MB821463 |
US $62.16 |
||
|
84242A
|
84242A
AW337607 TANK ASSY, WINDSHIELD WASHER |
AW337607 |
US $153.92 |
||
|
84246B
|
84246B
AW335100 TUBE, WINDSHIELD WASHER MOTOR SIDERubber,4mmx10m |
AW335100 |
US $88.06 |
||
|
84246C
|
84246C
AW335100 TUBE, WINDSHIELD WASHER MOTOR SIDERubber,4mmx10m |
AW335100 |
US $88.06 |
||
|
84246D
|
84246D
AW335100 TUBE, WINDSHIELD WASHER MOTOR SIDERubber,4mmx10m |
AW335100 |
US $88.06 |
||
|
84247B
|
84247B
AW335100 TUBE, WINDSHIELD WASHER MOTOR SIDERubber,4mmx10m |
AW335100 |
US $88.06 |
||
|
84247C
|
84247C
AW335100 TUBE, WINDSHIELD WASHER MOTOR SIDERubber,4mmx10m |
AW335100 |
US $88.06 |
||
|
84294B
|
84294B
04157188 GROMMET, WINDSHIELD WASHER |
04157188 |
US $5.62 |
||
| replacement | |||||
|
84294B
|
84294B
4157188 no 'Representative Part Name' |
4157188 |
US $13.76 |
||
|
84295
|
84295
MB171570 JOINT, RR WINDOW WASHER |
MB171570 |
US $3.83 |
||
|
84295B
|
84295B
MB623192 JOINT, WINDSHIELD WASHER |
MB623192 |
from US $1.15 |
||
|
84295C
|
84295C
AW332428
JOINT, RR WINDOW WASHER
|
AW332428 |
— | ||
|
84296B
|
84296B
MB529507 CLIP, WINDSHIELD WASHER7x3 |
MB529507 |
US $4.24 |
||
|
84296C
|
84296C
MU481044 CLIP, WINDSHIELD WASHER8 |
MU481044 |
from US $1.87 |
||
|
84296D
|
84296D
MU481163 CLIP, WINDSHIELD WASHER7 |
MU481163 |
US $3.15 |
||
|
84298
|
84298
MS240411 BOLT, ENG CONTROL EQUIPWasher assembled,6x20 |
MS240411 |
US $1.92 |
||
|
84299
|
84299
MS470402 CLIP, WIRING, NO.2 |
MS470402 |
US $2.87 |
||
