	Description	OEM Part #	Price
82162B	82162B MB568959 SWITCH, WATER TEMPERATURE	MB568959	—
	replacement
82162B	82162B MB439576 SWITCH, WATER TEMPERATURE	MB439576	from US $70.45
82799C	82799C MB629083 RELAY, ABS	MB629083	—
	replacements
82799C	82799C 8627A011 RELAY (A/T FAIL SAFE CONTROL)	8627A011	—
82799C	82799C 8627A030 RELAY	8627A030	from US $5.97
87035	87035 MB813840 HOSE, A/C COMPRESSOR DISCHARGE	MB813840	—
87035	87035 MR117009 HOSE, A/C COMPRESSOR DISCHARGE	MR117009	—
87036	87036 MB813841 HOSE, A/C COMPRESSOR SUCTION	MB813841	—
87036	87036 MR117018 HOSE, A/C COMPRESSOR SUCTION	MR117018	—
87051	87051 MB899347 PIPE, A/C CONDENSER OUTLET	MB899347	—
87051	87051 MR117019 PIPE, A/C CONDENSER OUTLET	MR117019	—
87054B	87054B MB899372 PIPE,A/C RECEIVER OUTLET	MB899372	—
87054B	87054B MR117024 PIPE,A/C RECEIVER OUTLET	MR117024	—
87054C	87054C MB609864 PIPE,A/C RECEIVER OUTLET	MB609864	—
87054C	87054C MR117025 PIPE,A/C RECEIVER OUTLET	MR117025	—
87065A	87065A MB899497 RECEIVER ASSY,A/C	MB899497	—
87065A	87065A MR117107 RECEIVER ASSY,A/C	MR117107	—
87076	87076 MB276842 SWITCH, A/C REFRIGERANT PIPE PRESSURE	MB276842	—
87076	87076 MR117068 SWITCH, A/C REFRIGERANT PRESSURE	MR117068	US $73.19
87145	87145 MB657410 SWITCH, A/C	MB657410	US $48.77
87145	87145 MB657790 SWITCH, A/C	MB657790	—
87539	87539 MS810965 FUSE, SWITCH Blade type,10a	MS810965	from US $1.31
87539	87539 MS810966 FUSE, BODY WIRING Blade type,15a	MS810966	from US $1.19
87539	87539 MS810968 FUSE, INSTRUMENT PANEL WIRING Blade type,25a	MS810968	from US $1.33
87582B	87582B MS440503 NUT, ENG FR MOUNTING Washer assembled,8	MS440503	from US $0.84
87582C	87582C MS440502 NUT, FUEL TANK Washer assembled,6	MS440502	from US $1.74
87585B	87585B MU481162 CLIP, A/C PIPING 12	MU481162	from US $1.33
87585C	87585C MS470477 CLIP, ACCEL CONTROL EQUIP 8.3-12	MS470477	US $3.85
87585E	87585E MS470457 CLIP, FUEL LINE 8.3-16.5	MS470457	US $3.55
87585F	87585F MB553164 CLIP, P/S OIL LINE 13-23	MB553164	US $8.62
87586B	87586B MB877146 CLAMP, A/C PIPING	MB877146	—
87586B	87586B MR114548 CLAMP, A/C PIPING	MR114548	—
87586C	87586C MB877145 CLAMP, A/C PIPING	MB877145	—
87586C	87586C MR114547 CLAMP, A/C PIPING	MR114547	—
87587E	87587E MB879208 BRACKET,A/C PIPING	MB879208	—
87587E	87587E MR146602 BRACKET,A/C PIPING	MR146602	—
87588B	87588B MF244830 BOLT, ENG RR PLATE	MF244830	US $2.19
87588DB	87588DB MF244832 BOLT, A/C PIPING	MF244832	—
87588DB	87588DB MF244857 BOLT, A/C DRIVING Washer assembled,8x35	MF244857	from US $1.56
87588E	87588E MF243628 BOLT, CONNROD Washer assembled,6x25	MF243628	US $0.55
87588J	87588J MF243651 BOLT, ENG RR MOUNTING Washer assembled,8x20	MF243651	from US $0.92
87588P	87588P MF243655 BOLT, ROCKER COVER Washer assembled,8x30	MF243655	from US $1.46
87588P	87588P MF243657 BOLT, TIMING POWER TRAIN CASE Washer assembled,8x35	MF243657	US $0.82
87618	87618 MB879202 PIPE,A/C COMPRESSOR SUCTION	MB879202	—
87618	87618 MR117026 PIPE,A/C COMPRESSOR SUCTION	MR117026	—
87668B	87668B MB276213 O-RING, A/C PIPING 8	MB276213	from US $1.23
87668B	87668B MR114742 O-RING, A/C PIPING	MR114742	—
87668B	87668B MR117053 O-RING, A/C PIPING D=8	MR117053	from US $1.27
	replacement
87668B	87668B 9491420010 O-RING, A/C PIPING	9491420010	US $2.19
87668C	87668C MB276213 O-RING, A/C PIPING 8	MB276213	from US $1.23
87668C	87668C MR114742 O-RING, A/C PIPING	MR114742	—
87668C	87668C MR117053 O-RING, A/C PIPING D=8	MR117053	from US $1.27
	replacement
87668C	87668C 9491420010 O-RING, A/C PIPING	9491420010	US $2.19
87668D	87668D MB276213 O-RING, A/C PIPING 8	MB276213	from US $1.23
87668D	87668D MR117054 O-RING, A/C PIPING	MR117054	US $2.44
	replacement
87668D	87668D 9491420020 O-RING, A/C PIPING	9491420020	US $3.01
87668E	87668E MB276215 O-RING, A/C PIPING 5/8;	MB276215	US $0.92
87668E	87668E MR117055 O-RING, A/C PIPING	MR117055	US $2.63
	replacement
87668E	87668E 9491420030 O-RING, A/C PIPING	9491420030	US $3.28
87668F	87668F MB276213 O-RING, A/C PIPING 8	MB276213	from US $1.23
87668F	87668F MR114742 O-RING, A/C PIPING	MR114742	—
87668F	87668F MR117053 O-RING, A/C PIPING D=8	MR117053	from US $1.27
	replacement
87668F	87668F 9491420010 O-RING, A/C PIPING	9491420010	US $2.19
87668P	87668P MB276213 O-RING, A/C PIPING 8	MB276213	from US $1.23
87668P	87668P MR114744 O-RING, A/C PIPING 5/8	MR114744	US $1.48
87668P	87668P MR117055 O-RING, A/C PIPING	MR117055	US $2.63
	replacement
87668P	87668P 9491420030 O-RING, A/C PIPING	9491420030	US $3.28

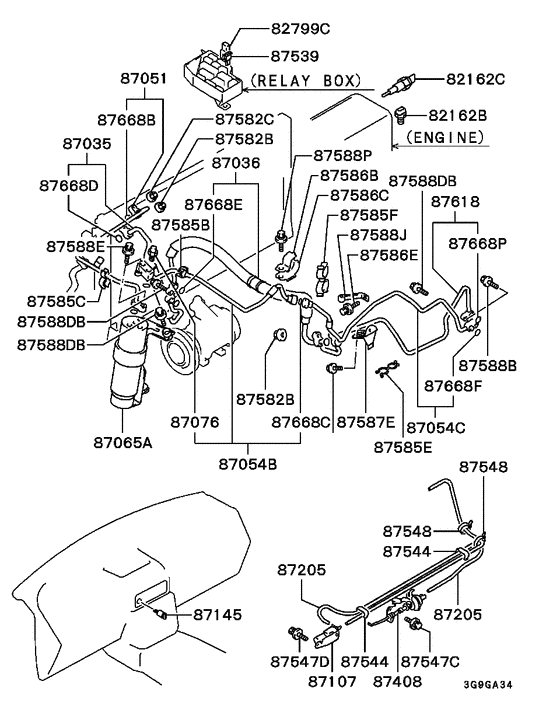

A/c condenser, piping (A/C PIPING) Diagram Mitsubishi SPACE RUNNER EUR 1890686-165948

A/c condenser, piping (A/C PIPING) Diagram Mitsubishi SPACE RUNNER EUR 1890686-165948
