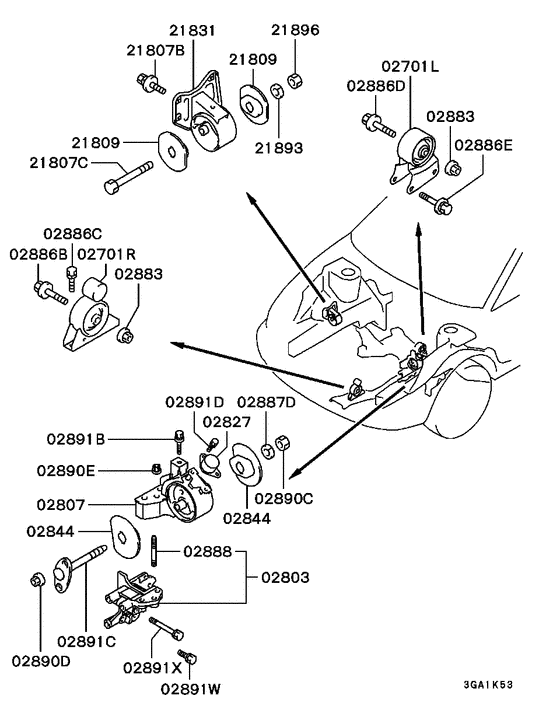

Engine mounting & support (ALL) Diagram Mitsubishi SPACE RUNNER
- Year
- 1991 - 1999
- Sales region
- EUR
- Note
- GLXI(4WD),5FM/T LHD
- drive
- 4WD/4WD
- transmission
- 5FM/T
- grade
- GLXI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02701L
|
02701L
MB691492 BRACKET, ENG ROLL STOPPER, LH |
MB691492 |
US $85.84 |
||
|
02701R
|
02701R
MB691500 BRACKET, ENG ROLL STOPPER, RH |
MB691500 |
US $91.02 |
||
|
02803
|
02803
MD171321 BRACKET, CYLINDER BLOCK ENG FR MOUNTING |
MD171321 |
US $182.04 |
||
|
02807
|
02807
MB691480 BRACKET, ENG FR MOUNTING |
MB691480 |
US $222 |
||
|
02807
|
02807
MB914987
BRACKET, ENG FR MOUNTING
|
MB914987 |
— | ||
|
02807
|
02807
MR171269
BRACKET,ENG FR MOUNTING
|
MR171269 |
— | ||
|
02827
|
02827
MR171272
DAMPER,ENG MOUNTING BRACKET DYNAMIC
|
MR171272 |
— | ||
|
02844
|
02844
MB691476 STOPPER, ENG RR MOUNTING CUSHION |
MB691476 |
US $22.94 |
||
|
02844
|
02844
MB892818
STOPPER, ENG RR MOUNTING CUSHION
|
MB892818 |
— | ||
|
02883
|
02883
MB288462 NUT, ENG SUPPORT RODFlange self locking,10 |
MB288462 |
from US $2.07 |
||
| replacement | |||||
|
02883
|
02883
MB288462V
nut
|
MB288462V |
— | ||
|
02886B
|
02886B
MF140273 BOLT, ENG SUPPORT RODFlange,10x75 |
MF140273 |
from US $2.40 |
||
|
02886C
|
02886C
MB007176 BOLT, ENG RR MOUNTINGWasher assembled,10x25 |
MB007176 |
US $5.88 |
||
|
02886D
|
02886D
MB691358 BOLT, ENG SUPPORT RODCone point,10x85 |
MB691358 |
US $6.36 |
||
|
02886E
|
02886E
MF244892 BOLT, ENG SUPPORT RODWasher assembled,10x70 |
MF244892 |
US $3.70 |
||
|
02887D
|
02887D
MF450407 WASHERSpring,12 |
MF450407 |
from US $0.84 |
||
|
02888
|
02888
MD171367 STUD, ENG MOUNTING10x65 |
MD171367 |
US $6.98 |
||
|
02890C
|
02890C
MF430007 NUT12 |
MF430007 |
from US $1.46 |
||
|
02890D
|
02890D
MS440504 NUTWasher assembled,10 |
MS440504 |
from US $0.66 |
||
|
02890E
|
02890E
MB288462 NUT, ENG SUPPORT RODFlange self locking,10 |
MB288462 |
from US $2.07 |
||
| replacement | |||||
|
02890E
|
02890E
MB288462V
nut
|
MB288462V |
— | ||
|
02891B
|
02891B
MB006929 BOLT, ENG MOUNTINGWasher assembled,10x73 |
MB006929 |
US $7.66 |
||
|
02891B
|
02891B
MB309043 BOLT, ENG MOUNTINGWasher assembled,10x73 |
MB309043 |
US $4.59 |
||
|
02891C
|
02891C
MB175769
BOLT, ENG MOUNTING
|
MB175769 |
— | ||
|
02891D
|
02891D
MF240022 BOLT, ROCKER COVERWasher assembled,6x10 |
MF240022 |
US $2.05 |
||
|
02891W
|
02891W
MF241284 BOLT, CYLINDER BLOCKWasher assembled,10x30 |
MF241284 |
from US $1.31 |
||
|
02891X
|
02891X
MF241296 BOLT, ENG MOUNTINGWasher assembled,10x80 |
MF241296 |
US $2.74 |
||
|
21807B
|
21807B
MB309345
BOLT, ENG RR MOUNTING
|
MB309345 |
— | ||
|
21807C
|
21807C
MF104927 BOLT, ENG FR MOUNTING12x100 |
MF104927 |
US $4.92 |
||
|
21809
|
21809
MB691477 STOPPER, T/M MOUNTING |
MB691477 |
US $12.28 |
||
|
21809
|
21809
MB949453 STOPPER, T/M MOUNTING |
MB949453 |
US $12.28 |
||
|
21831
|
21831
MB691464 BRACKET, T/M MOUNTING BODY SIDE |
MB691464 |
US $170.20 |
||
|
21831
|
21831
MB948003 BRACKET, T/M MOUNTING BODY SIDE |
MB948003 |
US $156.88 |
||
|
21893
|
21893
MF450407 WASHERSpring,12 |
MF450407 |
from US $0.84 |
||
|
21896
|
21896
MF430007 NUT12 |
MF430007 |
from US $1.46 |
||
