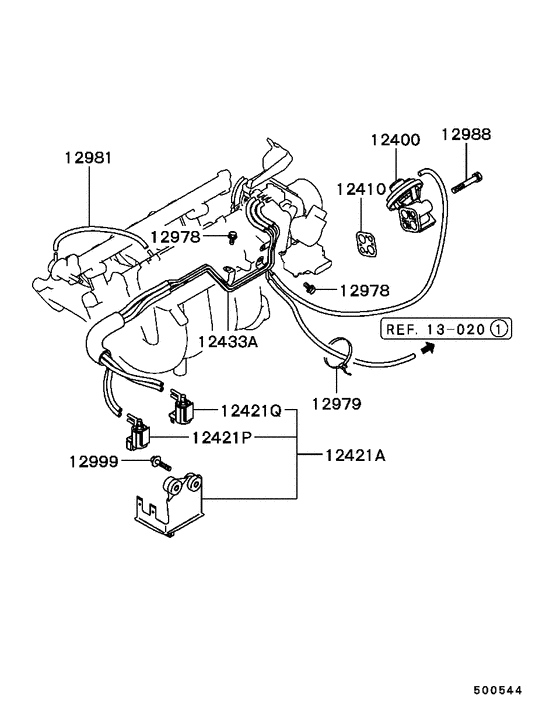

Emission control (9409.1-) Diagram Mitsubishi SPACE RUNNER
- Year
- 1991 - 1999
- Sales region
- EUR
- Note
- GLXI(4WD),5FM/T RHD
- drive
- 4WD/4WD
- transmission
- 5FM/T
- grade
- GLXI
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12400
|
12400
MD112794
VALVE, EGR
|
MD112794 |
— | ||
|
12400
|
12400
MD304625 VALVE, EGR |
MD304625 |
US $358.28 |
||
|
12410
|
12410
MD088604
GASKET, EGR VALVE
|
MD088604 |
— | ||
| replacement | |||||
|
12410
|
12410
MD119127 GASKET, EGR VALVE |
MD119127 |
from US $2.44 |
||
|
12421A
|
12421A
MD164013
VALVE ASSY,EMISSION SOLENOID
|
MD164013 |
— | ||
|
12421A
|
12421A
MD164014
VALVE ASSY,EMISSION SOLENOID
|
MD164014 |
— | ||
|
12421A
|
12421A
MR160227
VALVE ASSY,EMISSION SOLENOID
|
MR160227 |
— | ||
|
12421P
|
12421P
MD112375 VALVE, EMISSION SOLENOID |
MD112375 |
US $77.29 |
||
|
12421Q
|
12421Q
MB890843
VALVE ASSY,EMISSION SOLENOID
|
MB890843 |
— | ||
|
12421Q
|
12421Q
MD126812 VALVE, EMISSION SOLENOID |
MD126812 |
US $75.92 |
||
|
12433A
|
12433A
MB890891
HOSE & PIPE ASSY,EMISSION CONTROL
|
MB890891 |
— | ||
|
12433A
|
12433A
MD172764
HOSE & PIPE ASSY,EMISSION CONTROL
|
MD172764 |
— | ||
|
12433A
|
12433A
MR160228
HOSE & PIPE ASSY,EMISSION CONTROL
|
MR160228 |
— | ||
|
12978
|
12978
MF140202 BOLT, FLANGE (6x10)Flange,6x10 |
MF140202 |
from US $1.66 |
||
|
12979
|
12979
MB249339 BAND, ENG BREATHERL=169.5 |
MB249339 |
from US $1.95 |
||
|
12981
|
12981
MS632392 HOSE, EMISSION CONTROL EQUIP3x2000 |
MS632392 |
US $54.72 |
||
|
12988
|
12988
M811946 BOLT, FUEL INJECTORHexagon,8x50 |
M811946 |
US $2.81 |
||
|
12988
|
12988
MF241263 BOLT, BALANCER BELT TRAINWasher assembled,8x50 |
MF241263 |
US $1.50 |
||
|
12999
|
12999
MF247230 BOLT, ENG OIL COOLER LINEWasher assembled,6x30 |
MF247230 |
US $2.74 |
||
|
