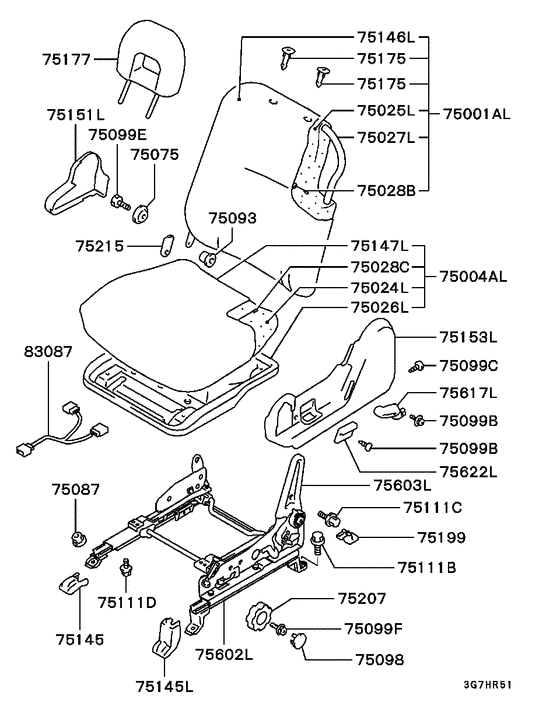

Front seat (LH..DUAL HEIGHT -'94MODEL) Diagram Mitsubishi SPACE RUNNER
- Year
- 1991 - 1999
- Sales region
- EUR
- Note
- GLXI(4WD),5FM/T RHD
- drive
- 4WD/4WD
- transmission
- 5FM/T
- grade
- GLXI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75001AL
|
75001AL
MB915844
BACK ASSY,FR SEAT,LH
|
MB915844 |
— | ||
|
75001AL
|
75001AL
MB915845
BACK ASSY,FR SEAT,LH
|
MB915845 |
— | ||
|
75001AL
|
75001AL
MR717238
BACK ASSY,FR SEAT,LH
|
MR717238 |
— | ||
|
75001AL
|
75001AL
MR743577
BACK ASSY,FR SEAT,LH
|
MR743577 |
— | ||
|
75001AL
|
75001AL
MR766753
BACK ASSY,FR SEAT,LH
|
MR766753 |
— | ||
|
75004AL
|
75004AL
MB915828
CUSHION ASSY,FR SEAT,LH
|
MB915828 |
— | ||
|
75004AL
|
75004AL
MB915829
CUSHION ASSY,FR SEAT,LH
|
MB915829 |
— | ||
|
75004AL
|
75004AL
MR714015
CUSHION ASSY,FR SEAT,LH
|
MR714015 |
— | ||
|
75004AL
|
75004AL
MR714016
CUSHION ASSY,FR SEAT,LH
|
MR714016 |
— | ||
|
75004AL
|
75004AL
MR717232
CUSHION ASSY,FR SEAT,LH
|
MR717232 |
— | ||
|
75004AL
|
75004AL
MR743556
CUSHION ASSY,FR SEAT,LH
|
MR743556 |
— | ||
|
75004AL
|
75004AL
MR766740
CUSHION ASSY,FR SEAT,LH
|
MR766740 |
— | ||
|
75024L
|
75024L
MB902533 PAD,FR SEAT CUSHION,LH |
MB902533 |
US $2.81 |
||
|
75024L
|
75024L
MB940443
PAD,FR SEAT CUSHION,LH
|
MB940443 |
— | ||
|
75024L
|
75024L
MR202579 PAD, FR SEAT CUSHION, LH |
MR202579 |
US $190.92 |
||
|
75025L
|
75025L
MB902541 PAD, FR SEAT BACK, LH |
MB902541 |
US $168.72 |
||
|
75025L
|
75025L
MR202591 PAD, FR SEAT BACK, LH |
MR202591 |
US $279.72 |
||
|
75026L
|
75026L
MB873509 FRAME, FR SEAT CUSHION |
MB873509 |
US $68.82 |
||
|
75027L
|
75027L
MB902539 FRAME, FR SEAT BACK, LH |
MB902539 |
US $150.96 |
||
|
75027L
|
75027L
MR202589 FRAME, FR SEAT BACK, LH |
MR202589 |
US $182.04 |
||
|
75028B
|
75028B
MB042374 WIRE, RR SEAT TRIMMING1.6x420 |
MB042374 |
US $2.37 |
||
|
75028B
|
75028B
MB130809 WIRE, RR SEAT TRIMMING2.0x220 |
MB130809 |
US $1.48 |
||
|
75028B
|
75028B
MB130811 WIRE, RR SEAT TRIMMING2.0x300 |
MB130811 |
US $1.48 |
||
|
75028B
|
75028B
MB191102 WIRE, FR SEAT TRIMMING2.0x440 |
MB191102 |
US $2.52 |
||
|
75028B
|
75028B
MB191305 WIRE, RR SEAT TRIMMING2.0x280 |
MB191305 |
US $1.92 |
||
|
75028B
|
75028B
MB323495 WIRE, FR SEAT TRIMMING2.0x160 |
MB323495 |
US $1.92 |
||
|
75028B
|
75028B
MB323497 WIRE, RR SEAT TRIMMING2.0x140 |
MB323497 |
US $1.92 |
||
|
75028B
|
75028B
MB324649 WIRE, FR SEAT TRIMMING2.0x120 |
MB324649 |
US $1.92 |
||
|
75028B
|
75028B
MB342502 WIRE, 2ND SEAT TRIMMING2.0x420 |
MB342502 |
US $2.05 |
||
|
75028C
|
75028C
MB130809 WIRE, RR SEAT TRIMMING2.0x220 |
MB130809 |
US $1.48 |
||
|
75028C
|
75028C
MB130811 WIRE, RR SEAT TRIMMING2.0x300 |
MB130811 |
US $1.48 |
||
|
75028C
|
75028C
MB130812 WIRE, FR SEAT TRIMMING2.0x320 |
MB130812 |
US $2.07 |
||
|
75028C
|
75028C
MB130813 WIRE, RR SEAT TRIMMING2.0x340 |
MB130813 |
US $2.07 |
||
|
75028C
|
75028C
MB225112 WIRE, FR SEAT TRIMMING1.6x520 |
MB225112 |
US $2.22 |
||
|
75028C
|
75028C
MB237156 WIRE, RR SEAT TRIMMING2.0x260 |
MB237156 |
US $2.37 |
||
|
75028C
|
75028C
MB323495 WIRE, FR SEAT TRIMMING2.0x160 |
MB323495 |
US $1.92 |
||
|
75028C
|
75028C
MB323497 WIRE, RR SEAT TRIMMING2.0x140 |
MB323497 |
US $1.92 |
||
|
75075
|
75075
MB850061 WASHER, FR SEAT |
MB850061 |
US $2.66 |
||
|
75087
|
75087
MS440504 NUTWasher assembled,10 |
MS440504 |
from US $0.66 |
||
|
75093
|
75093
MB079118 BUSHING, FR SEAT12x5.5 |
MB079118 |
US $3.11 |
||
|
75093
|
75093
MB158706 BUSHING, FR SEAT12x6 |
MB158706 |
from US $1.42 |
||
|
75098
|
75098
MR727810 CAP, FR SEAT |
MR727810 |
US $4.14 |
||
|
75099B
|
75099B
MB410568 SCREW, FR SEAT4x6 |
MB410568 |
US $3.56 |
||
|
75099C
|
75099C
MF455510 SCREW, GLOVEBOXTapping,5x10 |
MF455510 |
from US $0.45 |
||
|
75099E
|
75099E
MB074040 SCREW, FR SEAT6x12 |
MB074040 |
US $3.85 |
||
|
75099F
|
75099F
MF350768 SCREW, FUEL FILLER LID PANELWasher assembled,5x12 |
MF350768 |
from US $1.77 |
||
|
75111B
|
75111B
MS240188 BOLT, FR BUMPERWasher assembled,10x30 |
MS240188 |
from US $1.44 |
||
|
75111B
|
75111B
MU240135 BOLT, FR SEATWasher assembled,10x30 |
MU240135 |
US $2.52 |
||
|
75111C
|
75111C
MF241279 BOLT, ENG RR MOUNTINGWasher assembled,10x18 |
MF241279 |
US $1.50 |
||
|
75111C
|
75111C
MF241280 BOLT, RR SEATWasher assembled,10x20 |
MF241280 |
from US $0.98 |
||
|
75111D
|
75111D
MB190985 BOLT, FR SEAT8x20 |
MB190985 |
US $2.81 |
||
|
75145
|
75145
MB960932 COVER, FR SEAT ANCHOR |
MB960932 |
US $3.85 |
||
|
75145
|
75145
MB960933
COVER,FR SEAT ANCHOR
|
MB960933 |
— | ||
|
75145L
|
75145L
MB960978 COVER, FR SEAT ANCHOR, LH |
MB960978 |
US $7.99 |
||
|
75145L
|
75145L
MB960979
COVER,FR SEAT ANCHOR,LH
|
MB960979 |
— | ||
|
75146L
|
75146L
MB915934
COVER,FR SEAT BACK,LH
|
MB915934 |
— | ||
|
75146L
|
75146L
MB915935
COVER,FR SEAT BACK,LH
|
MB915935 |
— | ||
|
75146L
|
75146L
MR717250
COVER,FR SEAT BACK,LH
|
MR717250 |
— | ||
|
75146L
|
75146L
MR743619
COVER,FR SEAT BACK,LH
|
MR743619 |
— | ||
|
75146L
|
75146L
MR766781
COVER,FR SEAT BACK,LH
|
MR766781 |
— | ||
|
75147L
|
75147L
MB915918
COVER,FR SEAT CUSHION,LH
|
MB915918 |
— | ||
|
75147L
|
75147L
MB915919
COVER,FR SEAT CUSHION,LH
|
MB915919 |
— | ||
|
75147L
|
75147L
MR714039
COVER,FR SEAT CUSHION,LH
|
MR714039 |
— | ||
|
75147L
|
75147L
MR714040
COVER,FR SEAT CUSHION,LH
|
MR714040 |
— | ||
|
75147L
|
75147L
MR717244
COVER,FR SEAT CUSHION,LH
|
MR717244 |
— | ||
|
75147L
|
75147L
MR743598
COVER,FR SEAT CUSHION,LH
|
MR743598 |
— | ||
|
75147L
|
75147L
MR766768
COVER,FR SEAT CUSHION,LH
|
MR766768 |
— | ||
|
75151L
|
75151L
MB915866 COVER, FR SEAT HINGE, LH |
MB915866 |
US $9.77 |
||
|
75151L
|
75151L
MB915867
COVER,FR SEAT HINGE,LH
|
MB915867 |
— | ||
|
75153L
|
75153L
MB915862
COVER,FR SEAT SIDE SHIELD,LH
|
MB915862 |
— | ||
|
75153L
|
75153L
MB915863
COVER,FR SEAT SIDE SHIELD,LH
|
MB915863 |
— | ||
|
75175
|
75175
MB797373 GUIDE, FR SEAT HEADRESTW/lock |
MB797373 |
US $9.62 |
||
|
75175
|
75175
MB797375 GUIDE, FR SEAT HEADRESTW/o lock |
MB797375 |
US $9.62 |
||
|
75175
|
75175
MB965689 GUIDE, FR SEAT HEADRESTW/lock |
MB965689 |
US $9.62 |
||
|
75175
|
75175
MB965690 GUIDE, FR SEAT HEADRESTW/o lock |
MB965690 |
US $9.62 |
||
|
75177
|
75177
MB915860
HEADREST,FR SEAT
|
MB915860 |
— | ||
|
75177
|
75177
MB915861
HEADREST,FR SEAT
|
MB915861 |
— | ||
|
75177
|
75177
MR717231
HEADREST,FR SEAT
|
MR717231 |
— | ||
|
75177
|
75177
MR736969
HEADREST,FR SEAT
|
MR736969 |
— | ||
|
75177
|
75177
MR746736 HEADREST, FR SEAT |
MR746736 |
US $279.72 |
||
|
75199
|
75199
MB960934 COVER, FR SEAT ANCHOR, RR |
MB960934 |
US $3.85 |
||
|
75199
|
75199
MB960935
COVER,FR SEAT ANCHOR,RR
|
MB960935 |
— | ||
|
75207
|
75207
MR727828 LEVER, FR SEAT |
MR727828 |
US $16.28 |
||
|
75215
|
75215
MB389118 PROTECTOR, FR SEAT FRAME |
MB389118 |
US $4.74 |
||
|
75617L
|
75617L
MB915908 LEVER, FR SEAT RECLINING ADJUSTER, LH |
MB915908 |
US $7.40 |
||
|
75617L
|
75617L
MB915909
LEVER,FR SEAT RECLINING ADJUSTER,LH
|
MB915909 |
— | ||
|
75622L
|
75622L
MB915912 LEVER, FR SEAT SLIDE ADJUSTER, LH |
MB915912 |
US $13.32 |
||
|
75622L
|
75622L
MB915913
LEVER,FR SEAT SLIDE ADJUSTER,LH
|
MB915913 |
— |
