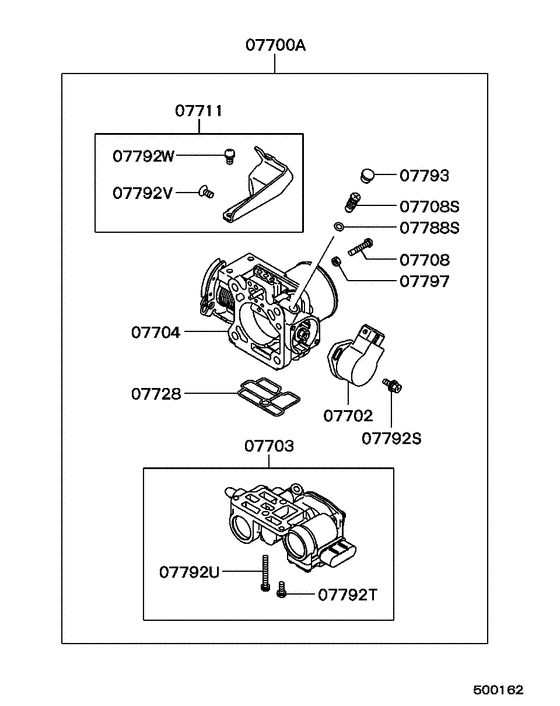

Injector & throttle body (9206.1- (INNER PARTS)) Diagram Mitsubishi SPACE RUNNER
- Year
- 1991 - 1999
- Sales region
- EUR
- Note
- GLXI(4WD),5FM/T RHD
- drive
- 4WD/4WD
- transmission
- 5FM/T
- grade
- GLXI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
07700A
|
07700A
MD177140
Throttle Body Assy
|
MD177140 |
— | ||
|
07700A
|
07700A
MD180875 Throttle Body AssyAcn50-004 |
MD180875 |
US $1,067.25 |
||
|
07700A
|
07700A
MD308047 Throttle Body AssyAcn50-004 |
MD308047 |
US $1,381.74 |
||
|
07700A
|
07700A
MD308048
Throttle Body Assy
|
MD308048 |
— | ||
|
07702
|
07702
MD614375 SENSOR, THROTTLE BODY THROTTLE |
MD614375 |
from US $296.09 |
||
|
07703
|
07703
MD614506
SERVO KIT,THROTTLE BODY IDLE SPEED CONTROL
|
MD614506 |
— | ||
|
07703
|
07703
MD614527 SERVO KIT, THROTTLE BODY IDLE SPEED CONTROL |
MD614527 |
US $464.46 |
||
|
07703
|
07703
MD614696 SERVO KIT, THROTTLE BODY IDLE SPEED CONTROL |
MD614696 |
US $505.23 |
||
|
07704
|
07704
MD614504
BODY,THROTTLE BODY MIXING
|
MD614504 |
— | ||
|
07704
|
07704
MD614526 BODY, THROTTLE BODY MIXING |
MD614526 |
US $511.06 |
||
|
07704
|
07704
MD614588
BODY,THROTTLE BODY MIXING
|
MD614588 |
— | ||
|
07708
|
07708
MD614304 ADJUSTING SCREW, THROTTLE BODY SPEED |
MD614304 |
US $4.79 |
||
|
07708S
|
07708S
MD614948 ADJUSTING SCREW, THROTTLE BODY SPEED |
MD614948 |
from US $3.53 |
||
|
07711
|
07711
MD614529 BRACKET, THROTTLE BODY THROTTLE CABLE |
MD614529 |
US $36.26 |
||
|
07711
|
07711
MD614531
BRACKET,THROTTLE BODY THROTTLE CABLE
|
MD614531 |
— | ||
|
07728
|
07728
MD614482
O-RING, THROTTLE BODY FAST IDLE AIR VALVE
|
MD614482 |
— | ||
|
07728
|
07728
MD614530 O-RING, THROTTLE BODY IDLE SPEED CONTROL SERVO |
MD614530 |
from US $9.32 |
||
|
07788S
|
07788S
MD608806 O-RING, THROTTLE BODY INR |
MD608806 |
from US $3.74 |
||
|
07792S
|
07792S
MD614528 SCREW, THROTTLE BODY INR |
MD614528 |
US $4.38 |
||
|
07792T
|
07792T
MF200075 SCREW, ENG FR MOUNTINGMachine,6x12 |
MF200075 |
from US $1.93 |
||
|
07792T
|
07792T
MF350049 SCREW, ROCKER COVERWasher assembled,5x14 |
MF350049 |
US $2.74 |
||
|
07792U
|
07792U
MF200088
SCREW, THROTTLE BODY INR
|
MF200088 |
— | ||
|
07792U
|
07792U
MF350060 SCREW, CARB INR |
MF350060 |
US $3.42 |
||
|
07792V
|
07792V
MF201570 SCREW, ROCKER COVERMachine,6x12 |
MF201570 |
US $2.52 |
||
|
07792W
|
07792W
MF350071 SCREW, ENG SAFETY COVERWasher assembled,6x12 |
MF350071 |
from US $1.01 |
||
|
07793
|
07793
MD614532 CAP, THROTTLE BODY INR |
MD614532 |
US $12.45 |
||
|
07797
|
07797
MD614305 NUT, THROTTLE BODY |
MD614305 |
US $2.74 |
