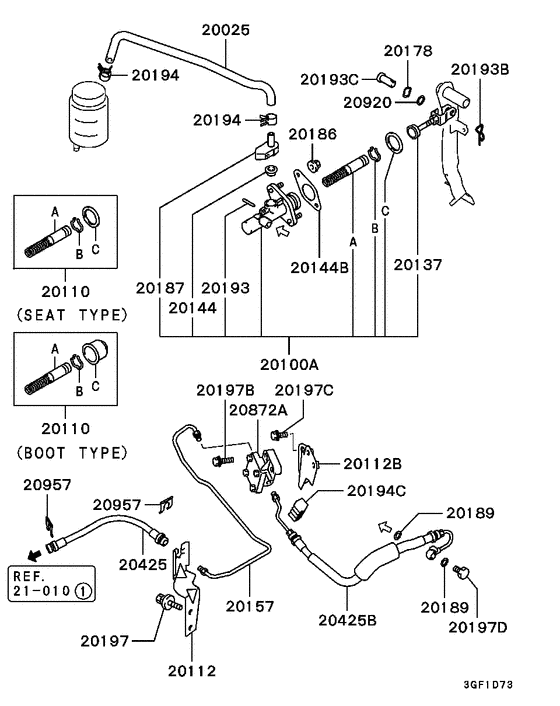

Clutch control (LHD) Diagram Mitsubishi SPACE RUNNER
- Year
- 2000 - 2002
- Sales region
- EUR
- Note
- GLX(MPI/STEP3),5FM/T GERMANY
- drive
- 2WD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20025
|
20025
MR272934
HOSE,CLUTCH FLUID RESERVOIR
|
MR272934 |
— | ||
|
20100A
|
20100A
MR272928
CYLINDER ASSY,CLUTCH MASTER
|
MR272928 |
— | ||
|
20110
|
20110
MR403052 CYLINDER KIT, CLUTCH MASTER |
MR403052 |
from US $36.21 |
||
|
20112
|
20112
MR272938
BRACKET,CLUTCH M/CYL TUBE
|
MR272938 |
— | ||
|
20112B
|
20112B
MR102658
CLAMP,CLUTCH M/CYL
|
MR102658 |
— | ||
|
20137
|
20137
MR403051
PUSH ROD,CLUTCH M/CYL
|
MR403051 |
— | ||
|
20144
|
20144
MR244929 SEAL, CLUTCH M/CYL |
MR244929 |
from US $2.09 |
||
|
20144B
|
20144B
MB555016 SEAL, CLUTCH M/CYL |
MB555016 |
US $3.56 |
||
|
20157
|
20157
MR519640
TUBE,CLUTCH M/CYL
|
MR519640 |
— | ||
|
20178
|
20178
MF451105 WASHER, BACK DOOR LOCKINGWave,10 |
MF451105 |
US $2.74 |
||
|
20186
|
20186
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
20187
|
20187
MR403050 NIPPLE, CLUTCH M/CYL |
MR403050 |
US $8.73 |
||
|
20189
|
20189
MA111832 GASKET, CLUTCH M/CYL10.2 |
MA111832 |
from US $1.07 |
||
|
20193
|
20193
MR244930 PIN, CLUTCH M/CYL |
MR244930 |
US $2.07 |
||
|
20193B
|
20193B
MF472042 PIN, CLUTCH PEDALSplit,2x30 |
MF472042 |
US $0.96 |
||
|
20193C
|
20193C
MF473492 PIN, CLUTCH M/CYLClevis,10x23 |
MF473492 |
from US $2.67 |
||
|
20194
|
20194
MB058362 CLIP, FUEL VAPOR CONTROL LINE13.2 |
MB058362 |
US $3.28 |
||
|
20194
|
20194
MS660164 CLAMP, T/M OIL COOLER LINED=13.1 |
MS660164 |
from US $1.13 |
||
|
20194C
|
20194C
MR249620 CLIP, BRAKE FLUID LINE |
MR249620 |
US $3.11 |
||
|
20197
|
20197
MS240095 BOLT, ENG OIL COOLER LINEWasher assembled,8x16 |
MS240095 |
US $2.74 |
||
|
20197B
|
20197B
MF241257 BOLT, CRANKCASEWasher assembled,8x30 |
MF241257 |
from US $1.42 |
||
|
20197C
|
20197C
MF241253 BOLT, CRANKCASEWasher assembled,8x20 |
MF241253 |
from US $1.01 |
||
|
20197D
|
20197D
MB555284 BAND, CLUTCH M/CYL |
MB555284 |
US $6.66 |
||
|
20425
|
20425
MR151522 HOSE, CLUTCH RELEASE CYLINDER250 |
MR151522 |
US $25.90 |
||
|
20425B
|
20425B
MR519644
HOSE,CLUTCH RELEASE CYLINDER
|
MR519644 |
— | ||
|
20872A
|
20872A
MD749641
DAMPER ASSY, CLUTCH CONTROL FLUID LINE
|
MD749641 |
— | ||
| replacement | |||||
|
20872A
|
20872A
2348A184 DAMPER ASSY, CLUTCH CONTROL FLUID LINE |
2348A184 |
from US $63.98 |
||
|
20920
|
20920
MF520006 O-RING, ENG OIL FILLER10.1 |
MF520006 |
from US $0.96 |
||
|
20957
|
20957
MA431825 CLIP, BRAKE FLUID LINE13 |
MA431825 |
from US $1.83 |
||
|
21 010
|
Clutch & clutch release
21 010
|
||||
