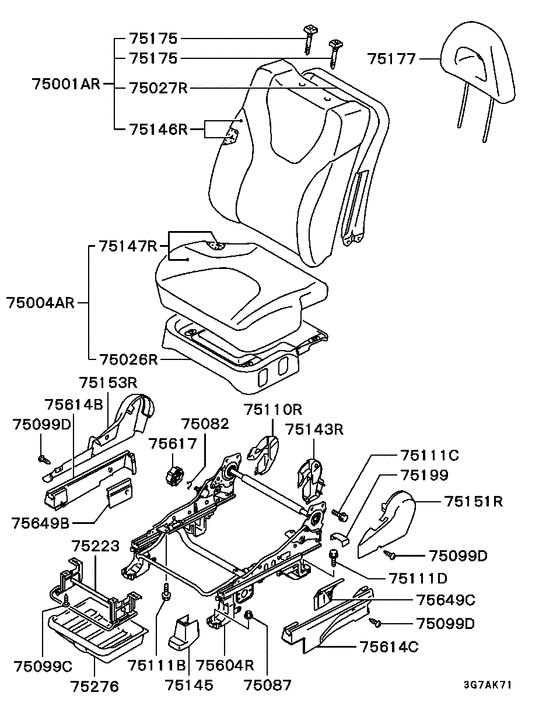

Front seat (RH..W/O HEIGHT(W/O SIDE AIR BAG)) Diagram Mitsubishi SPACE RUNNER
- Year
- 1999 - 2002
- Sales region
- EUR
- Note
- GLX(MPI),4FA/T LHD
- drive
- 2WD
- transmission
- 4FA/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75001AR
|
75001AR
MR624461
BACK ASSY,FR SEAT,RH
|
MR624461 |
— | ||
|
75001AR
|
75001AR
MR798217
BACK ASSY,FR SEAT,RH
|
MR798217 |
— | ||
|
75004AR
|
75004AR
MR783814 CUSHION ASSY, FR SEAT, LH |
MR783814 |
US $679.95 |
||
|
75026R
|
75026R
MR177224 FRAME, FR SEAT CUSHION, LH |
MR177224 |
US $193.88 |
||
|
75027R
|
75027R
MR177780 FRAME, FR SEAT BACK, LH |
MR177780 |
US $236.80 |
||
|
75082
|
75082
MB916447 SNAP RING, FR SEAT |
MB916447 |
from US $1.15 |
||
|
75087
|
75087
MS440504 NUTWasher assembled,10 |
MS440504 |
from US $0.66 |
||
|
75099C
|
75099C
MF455510 SCREW, GLOVEBOXTapping,5x10 |
MF455510 |
from US $0.45 |
||
|
75099D
|
75099D
MF455510 SCREW, GLOVEBOXTapping,5x10 |
MF455510 |
from US $0.45 |
||
|
75110R
|
75110R
MR798227
COVER,FR SEAT HINGE,INR LH
|
MR798227 |
— | ||
|
75111B
|
75111B
MF140223 BOLT, CYLINDER HEADFlange,8x16 |
MF140223 |
from US $1.01 |
||
|
75111B
|
75111B
MF241253 BOLT, CRANKCASEWasher assembled,8x20 |
MF241253 |
from US $1.01 |
||
|
75111B
|
75111B
MS240139 BOLT, STEERING COLUMNWasher assembled,8x20 |
MS240139 |
from US $1.23 |
||
|
75111C
|
75111C
MF140258 BOLT, ENG WATER COOLERFlange,10x20 |
MF140258 |
from US $1.23 |
||
|
75111C
|
75111C
MF241280 BOLT, RR SEATWasher assembled,10x20 |
MF241280 |
from US $0.98 |
||
|
75111C
|
75111C
MF241282 BOLT, CYLINDER BLOCKWasher assembled,10x25 |
MF241282 |
from US $1.33 |
||
|
75111D
|
75111D
MU240135 BOLT, FR SEATWasher assembled,10x30 |
MU240135 |
US $2.52 |
||
|
75143R
|
75143R
MR798226
COVER,FR SEAT SIDE SHIELD,INR LH
|
MR798226 |
— | ||
|
75145
|
75145
MR780019 COVER, FR SEAT ANCHOR |
MR780019 |
US $5.18 |
||
|
75146R
|
75146R
MR788183 COVER,FR SEAT BACK,RH |
MR788183 |
US $703.25 |
||
|
75146R
|
75146R
MR798231
COVER,FR SEAT BACK,RH
|
MR798231 |
— | ||
|
75147R
|
75147R
MR781481 COVER, FR SEAT CUSHION, LHW/pad |
MR781481 |
US $525.62 |
||
|
75151R
|
75151R
MR798225
COVER,FR SEAT HINGE,RH
|
MR798225 |
— | ||
|
75153R
|
75153R
MR798223
COVER,FR SEAT SIDE SHIELD,RH
|
MR798223 |
— | ||
|
75175
|
75175
MR779904 GUIDE, FR SEAT HEADRESTW/lock |
MR779904 |
US $10.80 |
||
|
75175
|
75175
MR779905 GUIDE, FR SEAT HEADRESTW/o lock |
MR779905 |
US $10.36 |
||
|
75177
|
75177
MR602025
HEADREST,FR SEAT
|
MR602025 |
— | ||
|
75199
|
75199
MR779845 COVER, FR SEAT ANCHOR, RR |
MR779845 |
US $5.18 |
||
|
75223
|
75223
MR378486
RAIL,FR SEAT UNDER TRAY
|
MR378486 |
— | ||
|
75276
|
75276
MB158863 TRAY, FR SEAT UNDER |
MB158863 |
US $28.73 |
||
|
75604R
|
75604R
MR347286
ADJUSTER,FR SEAT SLIDE,RH
|
MR347286 |
— | ||
|
75614B
|
75614B
MR781458 COVER, FR SEAT SLIDE ADJUSTER SIDE |
MR781458 |
US $18.50 |
||
|
75614C
|
75614C
MR781462 COVER, FR SEAT SLIDE ADJUSTER SIDE |
MR781462 |
US $24.42 |
||
|
75617
|
75617
MR798228
LEVER,FR SEAT
|
MR798228 |
— | ||
|
75649B
|
75649B
MR781470 COVER, FR SEAT SLIDE ADJUSTER SIDE, INR |
MR781470 |
US $5.18 |
||
|
75649C
|
75649C
MR781466 COVER, FR SEAT SLIDE ADJUSTER SIDE, INR |
MR781466 |
US $5.18 |
