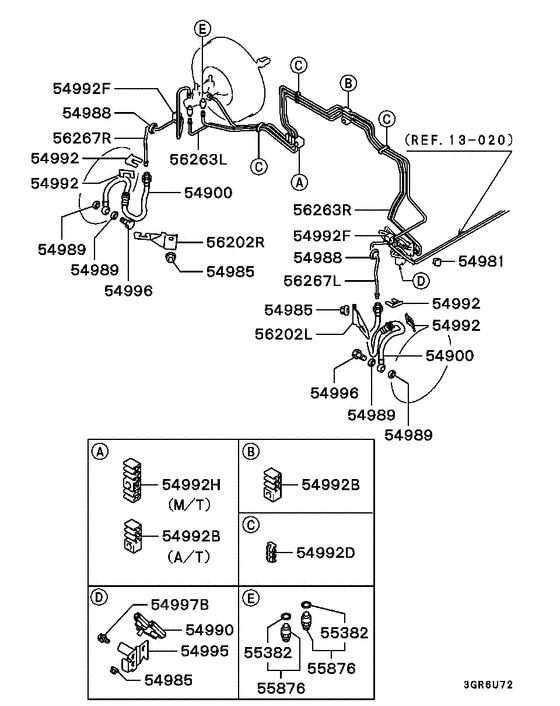

Brake line (FRONT..RHD(EXC.ABS)) Diagram Mitsubishi SPACE RUNNER
- Year
- 1999 - 2002
- Sales region
- EUR
- Note
- GLX(MPI),4FA/T RHD
- drive
- 2WD
- transmission
- 4FA/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
54900
|
54900
MR370755 HOSE, FR BRAKE275+210 |
MR370755 |
US $29.60 |
||
|
54900
|
54900
MR449323
HOSE,FR BRAKE
|
MR449323 |
— | ||
|
54985
|
54985
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
54988
|
54988
MS810053 GROMMET, FUEL LINE6 |
MS810053 |
US $3.01 |
||
|
54989
|
54989
MA111832 GASKET, CLUTCH M/CYL10.2 |
MA111832 |
from US $1.07 |
||
|
54990
|
54990
MR390094 JOINT, BRAKE FLUID LINE |
MR390094 |
US $40.70 |
||
|
54990
|
54990
MR569055 JOINT, BRAKE FLUID LINE |
MR569055 |
US $19.24 |
||
|
54992
|
54992
MA431825 CLIP, BRAKE FLUID LINE13 |
MA431825 |
from US $1.83 |
||
|
54992B
|
54992B
MR249620 CLIP, BRAKE FLUID LINE |
MR249620 |
US $3.11 |
||
|
54992D
|
54992D
MB344693 CLIP, BRAKE FLUID LINE4.8-4.8-4.8 |
MB344693 |
from US $2.63 |
||
|
54992F
|
54992F
MR249619 CLIP, CLUTCH M/CYL |
MR249619 |
US $2.52 |
||
|
54995
|
54995
MR334970 BRACKET, BRAKE FLUID LINE |
MR334970 |
US $9.47 |
||
|
54995
|
54995
MR449122
BRACKET,BRAKE FLUID LINE
|
MR449122 |
— | ||
|
54996
|
54996
MR249625
EYEBOLT, BRAKE FLUID LINE
|
MR249625 |
— | ||
| replacement | |||||
|
54996
|
54996
MU001458 EYEBOLT, RR AXLE BRAKE TUBE |
MU001458 |
from US $3.37 |
||
|
54997B
|
54997B
MS240139 BOLT, STEERING COLUMNWasher assembled,8x20 |
MS240139 |
from US $1.23 |
||
|
55382
|
55382
4655A005 O-RING, BRAKE CONTROL VALVE INR |
4655A005 |
from US $1.46 |
||
|
55876
|
55876
MR249607 VALVE, BRAKE FLUID PROPORTIONING |
MR249607 |
from US $50.17 |
||
|
56202L
|
56202L
MR370611 BRACKET, BRAKE HOSE, LH |
MR370611 |
US $5.03 |
||
|
56202R
|
56202R
MR370612 BRACKET, BRAKE HOSE, RH |
MR370612 |
US $5.03 |
||
|
56263L
|
56263L
MR289270 TUBE, BRAKE MAIN, FR LH |
MR289270 |
US $9.47 |
||
|
56263L
|
56263L
MR334812 TUBE, BRAKE MAIN, FR LH |
MR334812 |
US $26.64 |
||
|
56263L
|
56263L
MR527802 TUBE, BRAKE MAIN, FR LH |
MR527802 |
US $10.21 |
||
|
56263L
|
56263L
MR527830
TUBE,BRAKE MAIN,FR LH
|
MR527830 |
— | ||
|
56263R
|
56263R
MR289271 TUBE, BRAKE MAIN, FR RH |
MR289271 |
US $9.47 |
||
|
56263R
|
56263R
MR334813 TUBE, BRAKE MAIN, FR RH |
MR334813 |
US $26.64 |
||
|
56263R
|
56263R
MR527803 TUBE, BRAKE MAIN, FR RH |
MR527803 |
US $9.03 |
||
|
56263R
|
56263R
MR527831
TUBE,BRAKE MAIN,FR RH
|
MR527831 |
— | ||
|
56267L
|
56267L
MR289260 TUBE, FR BRAKE, LH |
MR289260 |
US $30.34 |
||
|
56267L
|
56267L
MR289268 TUBE, FR BRAKE, LH |
MR289268 |
US $12.58 |
||
|
56267R
|
56267R
MR289261 TUBE, FR BRAKE, RH |
MR289261 |
US $12.58 |
||
|
56267R
|
56267R
MR289269 TUBE, FR BRAKE, RH |
MR289269 |
US $5.88 |
||
|
