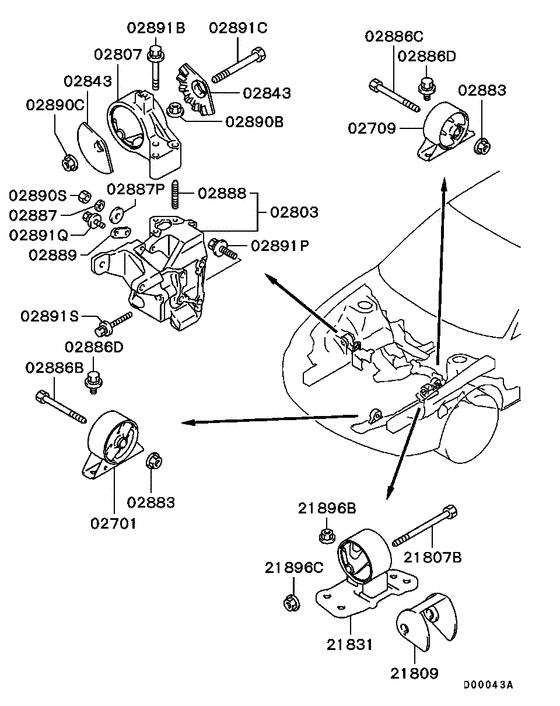

Engine mounting & support (A/T) Diagram Mitsubishi SPACE STAR
- Year
- 2001 - 2004
- Sales region
- EUR/NEDCAR
- Note
- COMFORT,S4FA/T LHD
- transmission
- S4FA/T
- grade
- COMFORT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02701
|
02701
MR102113 BRACKET, ENG ROLL STOPPER |
MR102113 |
US $73.26 |
||
|
02701
|
02701
MR333675
BRACKET, ENG ROLL STOPPER, RH
|
MR333675 |
— | ||
|
02709
|
02709
MR102115 BRACKET, ENG RR ROLL STOPPER |
MR102115 |
US $73.26 |
||
|
02803
|
02803
MD369041
BRACKET,CYLINDER BLOCK ENG FR MOUNTING
|
MD369041 |
— | ||
|
02807
|
02807
MR554877
BRACKET,ENG FR MOUNTING
|
MR554877 |
— | ||
|
02843
|
02843
MR369586 STOPPER, ENG FR MOUNTING CUSHION |
MR369586 |
US $10.95 |
||
|
02883
|
02883
M862188 NUT, T/M MOUNTINGFlange,10 |
M862188 |
US $2.22 |
||
|
02886B
|
02886B
M864029 BOLT, ENG SUPPORT RODFlange,10x75 |
M864029 |
US $5.62 |
||
|
02886C
|
02886C
M864030 BOLT, ENG SUPPORT RODFlange,10x80 |
M864030 |
US $6.22 |
||
|
02886D
|
02886D
M811937 BOLT, ENG SUPPORT ROD10x20 |
M811937 |
US $3.26 |
||
|
02887
|
02887
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.41 |
||
|
02887P
|
02887P
MF450006 WASHER, CYLINDER HEADPlain,10 |
MF450006 |
from US $1.01 |
||
|
02888
|
02888
MD339079 STUD, ENG MOUNTING10x71 |
MD339079 |
US $11.40 |
||
|
02889
|
02889
MD362479 STAY, ENG MOUNTING |
MD362479 |
US $2.52 |
||
|
02890B
|
02890B
M862188 NUT, T/M MOUNTINGFlange,10 |
M862188 |
US $2.22 |
||
|
02890C
|
02890C
M889350 NUT, ENG MOUNTINGFlange,12 |
M889350 |
US $2.52 |
||
|
02890S
|
02890S
MF430122 NUT, ENG RR MOUNTING10 |
MF430122 |
from US $0.99 |
||
|
02891B
|
02891B
M812367 BOLT, ENG MOUNTING10x70 |
M812367 |
US $5.62 |
||
|
02891C
|
02891C
M812003 BOLT, ENG MOUNTING12x109.7 |
M812003 |
US $7.84 |
||
|
02891P
|
02891P
MF244884 BOLT, ENG RR MOUNTINGWasher assembled,10x35 |
MF244884 |
from US $1.37 |
||
|
02891Q
|
02891Q
MF241252 BOLT, CARBWasher assembled,8x18 |
MF241252 |
from US $0.96 |
||
|
02891S
|
02891S
MF244863 BOLT, A/C COMPRESSORWasher assembled,8x60 |
MF244863 |
US $3.11 |
||
|
21807B
|
21807B
M812003 BOLT, ENG MOUNTING12x109.7 |
M812003 |
US $7.84 |
||
|
21809
|
21809
MR223362 STOPPER, T/M MOUNTING |
MR223362 |
US $10.95 |
||
|
21831
|
21831
MR131004 BRACKET, T/M MOUNTING BODY SIDE |
MR131004 |
US $155.95 |
||
|
21896B
|
21896B
M862188 NUT, T/M MOUNTINGFlange,10 |
M862188 |
US $2.22 |
||
|
21896B
|
21896B
M862189
NUT, FR SUSP LWR ARM
|
M862189 |
— | ||
|
21896C
|
21896C
M889350 NUT, ENG MOUNTINGFlange,12 |
M889350 |
US $2.52 |
