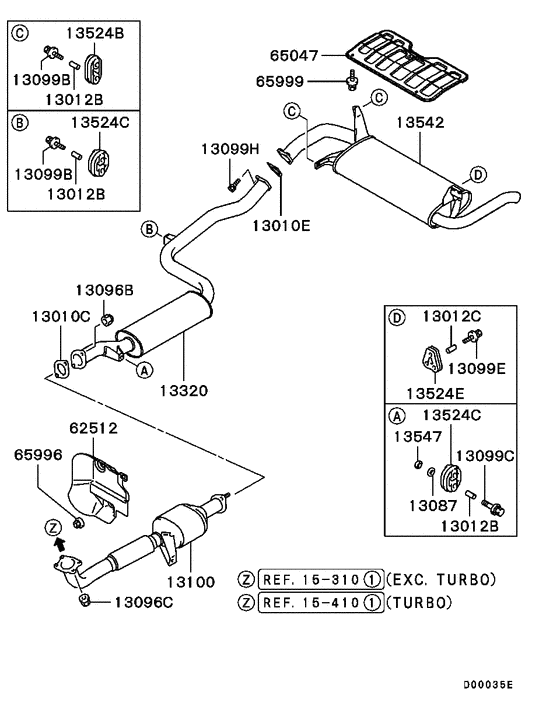

Exhaust pipe & muffler (ALL) Diagram Mitsubishi SPACE STAR
- Year
- 2002 - 2004
- Sales region
- EUR/NEDCAR
- Note
- SPORT(HIGH POWER),5FM/T RHD
- transmission
- 5FM/T
- grade
- SPORT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13010C
|
13010C
MR355121 GASKET, EXHAUST PIPE |
MR355121 |
US $14.50 |
||
|
13010E
|
13010E
MR464918
GASKET,EXHAUST PIPE
|
MR464918 |
— | ||
|
13012B
|
13012B
MB514690 COLLAR, EXHAUST PIPE |
MB514690 |
from US $1.48 |
||
|
13012C
|
13012C
MB549177 COLLAR, EXHAUST PIPE |
MB549177 |
US $2.60 |
||
|
13087
|
13087
M819627 WASHER, GEARSHIFT LINK8 |
M819627 |
US $3.26 |
||
|
13096B
|
13096B
MB059359 NUT, CATALYTIC CONVERTERSelf locking,6t,12 |
MB059359 |
from US $2.48 |
||
|
13096C
|
13096C
M945408 NUT, T/M CONTROL UNITFlange,8 |
M945408 |
US $1.48 |
||
|
13099B
|
13099B
M811925 BOLT, EXHAUST PIPEFlange,8x40 |
M811925 |
US $3.26 |
||
|
13099C
|
13099C
M812060 BOLT, EXHAUST PIPEFlange,8x45 |
M812060 |
US $3.55 |
||
|
13099E
|
13099E
M946470 BOLT, A/C PIPINGFlange,8x35 |
M946470 |
US $4.14 |
||
|
13099H
|
13099H
M980111 BOLT, A/C COMPRESSOR10x30 |
M980111 |
US $4.29 |
||
|
13099H
|
13099H
M980112 BOLT, EXHAUST PIPEFlange,10x35 |
M980112 |
US $2.96 |
||
|
13100
|
13100
MR912479
PIPE,EXHAUST,FR
|
MR912479 |
— | ||
|
13100
|
13100
MR916040
PIPE,EXHAUST,FR
|
MR916040 |
— | ||
|
13320
|
13320
MR464951
PIPE,EXHAUST,CTR
|
MR464951 |
— | ||
|
13524B
|
13524B
MR266292 HANGER, EXHAUST MUFFLER |
MR266292 |
US $14.36 |
||
|
13524C
|
13524C
MR266294 HANGER, EXHAUST MUFFLER |
MR266294 |
US $14.36 |
||
|
13524E
|
13524E
MR281176
HANGER,EXHAUST MUFFLER
|
MR281176 |
— | ||
|
13542
|
13542
MR912798
MUFFLER,EXHAUST MAIN
|
MR912798 |
— | ||
|
13547
|
13547
MB651931 SEAT, EXHAUST MUFFLER HANGER |
MB651931 |
from US $2.75 |
||
|
62512
|
62512
MR915028
PROTECTOR,DASH PANEL HEAT
|
MR915028 |
— | ||
|
65047
|
65047
MR247108
PROTECTOR,UNDER RR FLOOR HEAT
|
MR247108 |
— | ||
|
65996
|
65996
M968761 NUT, FLOOR HEAT PROTECTOR6 |
M968761 |
US $2.52 |
||
|
65999
|
65999
M969336 BOLT, ACCEL CONTROL EQUIP6x12 |
M969336 |
US $2.22 |
||
|
