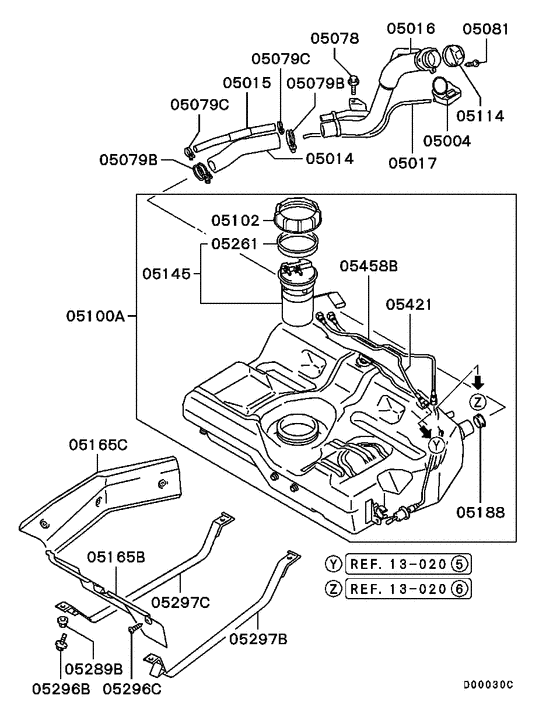

Fuel tank (ALL) Diagram Mitsubishi SPACE STAR
- Year
- 2002 - 2004
- Sales region
- EUR/NEDCAR
- Note
- SPORT(HIGH POWER),5FM/T RHD
- transmission
- 5FM/T
- grade
- SPORT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05004
|
05004
MR134399 COVER, FUEL FILLER NECK |
MR134399 |
US $8.14 |
||
|
05014
|
05014
MR271519
HOSE,FUEL FILLER
|
MR271519 |
— | ||
|
05015
|
05015
MR271520
HOSE,FUEL FILLER NECK BREATHER
|
MR271520 |
— | ||
|
05016
|
05016
MR913777
NECK,FUEL FILLER
|
MR913777 |
— | ||
|
05016
|
05016
MR913779
NECK,FUEL FILLER
|
MR913779 |
— | ||
|
05017
|
05017
MR911115
PIPE,FUEL FILLER NECK COVER DRAIN
|
MR911115 |
— | ||
|
05078
|
05078
M969338 BOLT, ABS CONTROL EQUIPFlange,6x16 |
M969338 |
US $2.66 |
||
|
05079B
|
05079B
M943478 CLAMP, FUEL FILLER PIPE56 |
M943478 |
US $4.74 |
||
|
05079C
|
05079C
M943472 CLAMP, FUEL FILLER PIPE25 |
M943472 |
US $4.14 |
||
|
05081
|
05081
M851912 SCREW, FUEL FILLER PIPE6x20 |
M851912 |
US $2.81 |
||
|
05100A
|
05100A
MR473543
FUEL TANK ASSY
|
MR473543 |
— | ||
|
05102
|
05102
MR271375 CAP, FUEL TANK PUMP & GAUGE MOUNTING |
MR271375 |
US $24.62 |
||
|
05114
|
05114
M853642 CAP, FUEL TANK |
M853642 |
US $37 |
||
|
05114
|
05114
MN120696
CAP,FUEL TANK
|
MN120696 |
— | ||
|
05145
|
05145
MR566032
PUMP & GAUGE ASSY,FUEL TANK
|
MR566032 |
— | ||
|
05165B
|
05165B
MR100986 PROTECTOR, FUEL TANK |
MR100986 |
US $19.24 |
||
|
05165B
|
05165B
MR916098
PROTECTOR,FUEL TANK
|
MR916098 |
— | ||
|
05165B
|
05165B
MR916100
PROTECTOR,FUEL TANK
|
MR916100 |
— | ||
|
05165C
|
05165C
MR135897
PROTECTOR,FUEL TANK
|
MR135897 |
— | ||
|
05188
|
05188
MR135829 VALVE, FUEL FILLER NECK |
MR135829 |
US $9.58 |
||
|
05261
|
05261
MR101046
GASKET, FUEL TANK PUMP
|
MR101046 |
— | ||
|
05289B
|
05289B
M852063 NUT, FR SUSP STABILIZERFlange,10 |
M852063 |
US $5.18 |
||
|
05296B
|
05296B
M965175 BOLT, TIMING BELT COVERFlange,6x12 |
M965175 |
US $2.07 |
||
|
05296C
|
05296C
M979737 SCREW, FUEL GAUGE WIRING |
M979737 |
US $2.37 |
||
|
05297B
|
05297B
MR135899
BAND,FUEL TANK
|
MR135899 |
— | ||
|
05297C
|
05297C
MR135900
BAND,FUEL TANK
|
MR135900 |
— | ||
|
05421
|
05421
MR473550
TUBE,FUEL MAIN
|
MR473550 |
— | ||
|
05458B
|
05458B
MR473551
TUBE,FUEL RETURN LINE
|
MR473551 |
— | ||
|
13 020
|
Fuel line & vapor gas control
13 020
|
||||
