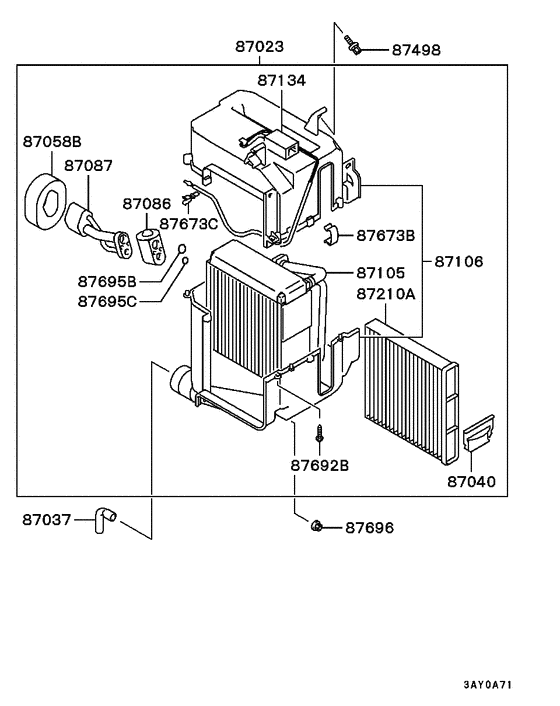

A/c unit Diagram Mitsubishi SPACE STAR
- Year
- 1998 - 2000
- Sales region
- EUR/NEDCAR
- Note
- GL(D3),5FM/T GERMANY
- transmission
- 5FM/T
- grade
- GL
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87023
|
87023
MR262441
COOLING UNIT,A/C
|
MR262441 |
— | ||
|
87037
|
87037
MR114458
HOSE, A/C EVAPORATOR DRAIN
|
MR114458 |
— | ||
|
87040
|
87040
MR262791
BRACKET, A/C
|
MR262791 |
— | ||
|
87058B
|
87058B
MR500303
INSULATOR,A/C
|
MR500303 |
— | ||
|
87086
|
87086
MR500298
VALVE,A/C EXPANSION
|
MR500298 |
— | ||
|
87087
|
87087
MR500305
PIPE,A/C EXPANSION VALVE INLET
|
MR500305 |
— | ||
|
87105
|
87105
MR500304
EVAPORATOR,A/C
|
MR500304 |
— | ||
|
87106
|
87106
MR500302
CASE,A/C
|
MR500302 |
— | ||
|
87134
|
87134
MR460499
THERMISTOR, A/C EVAPORATOR AIR OUTLET
|
MR460499 |
— | ||
|
87210A
|
87210A
MR262425
AIR REFRESHER ASSY
|
MR262425 |
— | ||
|
87210A
|
87210A
MR460201
AIR REFRESHER ASSY
|
MR460201 |
— | ||
|
87498
|
87498
M811986
BOLT, RR SEAT
|
M811986 |
— | ||
|
87673B
|
87673B
MR500294
CLIP,A/C
|
MR500294 |
— | ||
|
87673C
|
87673C
MR500295
CLIP,A/C
|
MR500295 |
— | ||
|
87692B
|
87692B
MF456099 SCREW, FR DOOR ARMRESTTapping,4x16 |
MF456099 |
US $1.92 |
||
|
87695B
|
87695B
MR117053 O-RING, A/C PIPINGD=8 |
MR117053 |
from US $1.27 |
||
| replacement | |||||
|
87695B
|
87695B
9491420010 O-RING, A/C PIPING |
9491420010 |
US $2.19 |
||
|
87695C
|
87695C
MR117055 O-RING, A/C PIPING |
MR117055 |
US $2.63 |
||
| replacement | |||||
|
87695C
|
87695C
9491420030 O-RING, A/C PIPING |
9491420030 |
US $3.28 |
||
|
87696
|
87696
M945408 NUT, T/M CONTROL UNITFlange,8 |
M945408 |
US $1.48 |
||
