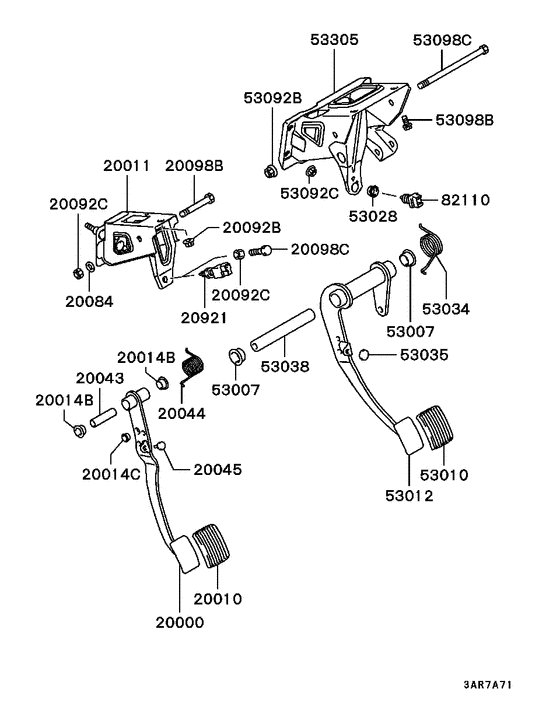

Brake & clutch pedal (LHD) Diagram Mitsubishi SPACE STAR
- Year
- 1998 - 2000
- Sales region
- EUR/NEDCAR
- Note
- GLX(D3),5FM/T GERMANY
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20000
|
20000
MR370295
PEDAL,CLUTCH
|
MR370295 |
— | ||
|
20010
|
20010
MR197643
PAD,BRAKE PEDAL
|
MR197643 |
— | ||
|
20011
|
20011
MR370293
BRACKET,CLUTCH PEDAL
|
MR370293 |
— | ||
|
20014B
|
20014B
MB003682 BUSHING, CLUTCH PEDAL14x10 |
MB003682 |
from US $2.40 |
||
|
20014C
|
20014C
MB555171 BUSHING, CLUTCH PEDAL10x8 |
MB555171 |
from US $3.53 |
||
|
20043
|
20043
MB807218 SPACER, CLUTCH PEDAL10.5x53 |
MB807218 |
US $6.81 |
||
|
20044
|
20044
MR103610 SPRING, CLUTCH PEDAL RETURN |
MR103610 |
US $7.25 |
||
|
20045
|
20045
MB151298 STOPPER, STEERING COLUMN BRACKET |
MB151298 |
from US $2.52 |
||
|
20084
|
20084
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.43 |
||
|
20092B
|
20092B
M945408 NUT, T/M CONTROL UNITFlange,8 |
M945408 |
US $1.48 |
||
|
20092B
|
20092B
M948645 NUT, BRAKE M/CYLLock,8 |
M948645 |
US $2.66 |
||
|
20092C
|
20092C
M819862
NUT,CLUTCH PEDAL
|
M819862 |
— | ||
|
20098B
|
20098B
MF102597 BOLT, CLUTCH PEDAL10x70 |
MF102597 |
US $3.70 |
||
|
20921
|
20921
MB435457 SWITCH, STOP LAMP |
MB435457 |
from US $11.21 |
||
|
53007
|
53007
MR130312
BUSHING,BRAKE PEDAL
|
MR130312 |
— | ||
|
53010
|
53010
MR197643
PAD,BRAKE PEDAL
|
MR197643 |
— | ||
|
53012
|
53012
MR370271
PEDAL,BRAKE
|
MR370271 |
— | ||
|
53028
|
53028
MR194262 RING, BRAKE PEDAL ARM STOP LAMP SWITCH |
MR194262 |
US $2.22 |
||
|
53034
|
53034
MR130536
SPRING,BRAKE PEDAL RETURN
|
MR130536 |
— | ||
|
53035
|
53035
MB151298 STOPPER, STEERING COLUMN BRACKET |
MB151298 |
from US $2.52 |
||
|
53035
|
53035
MB500595 STOPPER, BRAKE PEDAL |
MB500595 |
US $3.55 |
||
|
53038
|
53038
MR130311
SPACER,BRAKE PEDAL
|
MR130311 |
— | ||
|
53092B
|
53092B
M971098 NUT, BRAKE PEDALFlange,10 |
M971098 |
US $3.55 |
||
|
53092C
|
53092C
M948645 NUT, BRAKE M/CYLLock,8 |
M948645 |
US $2.66 |
||
|
53098B
|
53098B
M980241 BOLT, BRAKE PEDALFlange,8x17.35 |
M980241 |
US $2.37 |
||
|
53098C
|
53098C
M970966
BOLT,BRAKE PEDAL
|
M970966 |
— | ||
|
53305
|
53305
MR370269
MEMBER,PEDAL SUPPORT
|
MR370269 |
— | ||
|
82110
|
82110
MB953385 SWITCH, STOP LAMP |
MB953385 |
US $17.76 |
