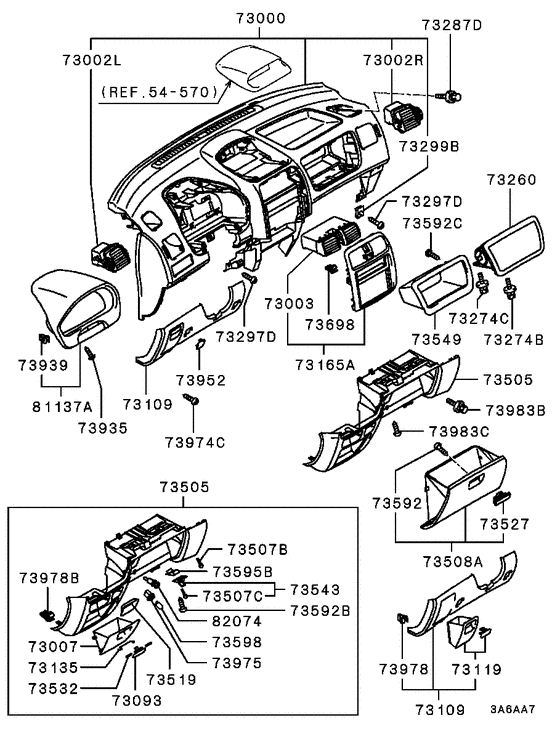

I/panel & related parts (I/PANEL PAD,GLOVEBOX,ETC. -0204.3) Diagram Mitsubishi SPACE STAR
- Year
- 1998 - 2000
- Sales region
- EUR/NEDCAR
- Note
- GLX(D3),5FM/T GERMANY
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
73000
|
73000
MR602419
PANEL,INSTRUMENT
|
MR602419 |
— | ||
|
73002L
|
73002L
MR602412
AIR OUTLET,INSTRUMENT PANEL SIDE,LH
|
MR602412 |
— | ||
|
73002R
|
73002R
MR602413
AIR OUTLET,INSTRUMENT PANEL SIDE,RH
|
MR602413 |
— | ||
|
73003
|
73003
MR216278
AIR OUTLET,INSTRUMENT PANEL,CTR
|
MR216278 |
— | ||
|
73007
|
73007
MR913561
BOX,INSTRUMENT PANEL PARCEL
|
MR913561 |
— | ||
|
73007
|
73007
MR913562
BOX,INSTRUMENT PANEL PARCEL
|
MR913562 |
— | ||
|
73007
|
73007
MR913563
BOX,INSTRUMENT PANEL PARCEL
|
MR913563 |
— | ||
|
73093
|
73093
MR602461
LOCK,INSTRUMENT PANEL BOX LID
|
MR602461 |
— | ||
|
73093
|
73093
MR602462
LOCK,INSTRUMENT PANEL BOX LID
|
MR602462 |
— | ||
|
73093
|
73093
MR602463
LOCK,INSTRUMENT PANEL BOX LID
|
MR602463 |
— | ||
|
73093
|
73093
MR915862
LOCK,INSTRUMENT PANEL BOX LID
|
MR915862 |
— | ||
|
73109
|
73109
MR913567
PANEL,INSTRUMENT,LWR
|
MR913567 |
— | ||
|
73109
|
73109
MR913568
PANEL,INSTRUMENT,LWR
|
MR913568 |
— | ||
|
73109
|
73109
MR913569
PANEL,INSTRUMENT,LWR
|
MR913569 |
— | ||
|
73119
|
73119
MR913579
POCKET,SUNGLASSES
|
MR913579 |
— | ||
|
73119
|
73119
MR913580
POCKET,SUNGLASSES
|
MR913580 |
— | ||
|
73119
|
73119
MR913581
POCKET,SUNGLASSES
|
MR913581 |
— | ||
|
73135
|
73135
MR270222
SPRING,INSTRUMENT PANEL PARCEL BOX LID
|
MR270222 |
— | ||
|
73165A
|
73165A
MR602415
PANEL ASSY,INSTRUMENT,CTR
|
MR602415 |
— | ||
|
73260
|
73260
MR602414
MODULE,PASSENGER GAS AIR BAG
|
MR602414 |
— | ||
|
73274B
|
73274B
M971306 BOLT, AIR BAG EQUIP |
M971306 |
US $2.81 |
||
|
73274C
|
73274C
M973037 BOLT, AIR BAG EQUIP |
M973037 |
US $4.29 |
||
|
73287D
|
73287D
MU240027 BOLT, INSTRUMENT PANELGimlet,6x16 |
MU240027 |
US $2.07 |
||
|
73297D
|
73297D
M974192 BOLT, INSTRUMENT PANEL |
M974192 |
US $2.37 |
||
|
73299B
|
73299B
MR149497 NUT, INSTRUMENT PANEL PAD |
MR149497 |
US $2.52 |
||
|
73505
|
73505
MR913555
COVER,GLOVEBOX
|
MR913555 |
— | ||
|
73505
|
73505
MR913556
COVER,GLOVEBOX
|
MR913556 |
— | ||
|
73505
|
73505
MR913557
COVER,GLOVEBOX
|
MR913557 |
— | ||
|
73507B
|
73507B
MR115997 CUSHION, GLOVEBOX |
MR115997 |
US $4.14 |
||
|
73507C
|
73507C
MR115997 CUSHION, GLOVEBOX |
MR115997 |
US $4.14 |
||
|
73508A
|
73508A
MR913617
GLOVEBOX ASSY
|
MR913617 |
— | ||
|
73508A
|
73508A
MR913618
GLOVEBOX ASSY
|
MR913618 |
— | ||
|
73508A
|
73508A
MR913619
GLOVEBOX ASSY
|
MR913619 |
— | ||
|
73519
|
73519
MR602455
COVER,GLOVEBOX LOCK HOLE
|
MR602455 |
— | ||
|
73519
|
73519
MR602456
COVER,GLOVEBOX LOCK HOLE
|
MR602456 |
— | ||
|
73519
|
73519
MR602457
COVER,GLOVEBOX LOCK HOLE
|
MR602457 |
— | ||
|
73527
|
73527
MR602416
LOCK,GLOVEBOX
|
MR602416 |
— | ||
|
73527
|
73527
MR602417
LOCK,GLOVEBOX
|
MR602417 |
— | ||
|
73527
|
73527
MR602418
LOCK,GLOVEBOX
|
MR602418 |
— | ||
|
73532
|
73532
MF472538 PIN,FR SEAT |
MF472538 |
from US $1.48 |
||
|
73543
|
73543
MR270173
STRIKER,GLOVEBOX
|
MR270173 |
— | ||
|
73549
|
73549
MR602488
GLOVEBOX,UPR
|
MR602488 |
— | ||
|
73592
|
73592
M965294 SCREW, GLOVEBOX |
M965294 |
US $2.37 |
||
|
73592B
|
73592B
M955140 SCREW, HOOD LOCKINGTapping,st4.8x16 |
M955140 |
US $2.05 |
||
|
73592C
|
73592C
M968943
SCREW,FUEL GAUGE WIRING
|
M968943 |
— | ||
|
73595B
|
73595B
MR149497 NUT, INSTRUMENT PANEL PAD |
MR149497 |
US $2.52 |
||
|
73598
|
73598
MF820572 BULB, GLOVEBOX |
MF820572 |
from US $1.50 |
||
| replacement | |||||
|
73598
|
73598
MB439505
BULB, HEATER CONTROL EQUIP
|
MB439505 |
— | ||
|
73698
|
73698
MR115436 CLIP, INSTRUMENT PANEL CONSOLE |
MR115436 |
US $3.26 |
||
|
73935
|
73935
M955140 SCREW, HOOD LOCKINGTapping,st4.8x16 |
M955140 |
US $2.05 |
||
|
73939
|
73939
MR115436 CLIP, INSTRUMENT PANEL CONSOLE |
MR115436 |
US $3.26 |
||
|
73952
|
73952
MR786574
PLUG,INSTRUMENT PANEL UNDER TRIM
|
MR786574 |
— | ||
|
73952
|
73952
MR786575
PLUG,INSTRUMENT PANEL UNDER TRIM
|
MR786575 |
— | ||
|
73952
|
73952
MR786576
PLUG,INSTRUMENT PANEL UNDER TRIM
|
MR786576 |
— | ||
|
73952
|
73952
MR913542
PLUG,INSTRUMENT PANEL UNDER TRIM
|
MR913542 |
— | ||
|
73974C
|
73974C
M955140 SCREW, HOOD LOCKINGTapping,st4.8x16 |
M955140 |
US $2.05 |
||
|
73974C
|
73974C
M969229 SCREW, HEATER DUCTTapping,st4.8x13 |
M969229 |
US $2.37 |
||
|
73975
|
73975
MB521846 SOCKET,GEARSHIFT LINK |
MB521846 |
US $4.59 |
||
|
73978
|
73978
MR115436 CLIP, INSTRUMENT PANEL CONSOLE |
MR115436 |
US $3.26 |
||
|
73978B
|
73978B
MR115436 CLIP, INSTRUMENT PANEL CONSOLE |
MR115436 |
US $3.26 |
||
|
73983B
|
73983B
M946544 BOLT, ENG OIL COOLER LINEFlange,6x16 |
M946544 |
US $2.37 |
||
|
73983B
|
73983B
M974192 BOLT, INSTRUMENT PANEL |
M974192 |
US $2.37 |
||
|
73983C
|
73983C
M955140 SCREW, HOOD LOCKINGTapping,st4.8x16 |
M955140 |
US $2.05 |
||
|
81137A
|
81137A
MR602487
HOOD ASSY,COMBINATION METER
|
MR602487 |
— | ||
|
82074
|
82074
M276810
SWITCH,GLOVEBOX LAMP
|
M276810 |
— | ||
|
54 570
|
Miscellaneous accessory parts
54 570
|
||||
|
54 570
|
Miscellaneous accessory parts
54 570
|
||||
