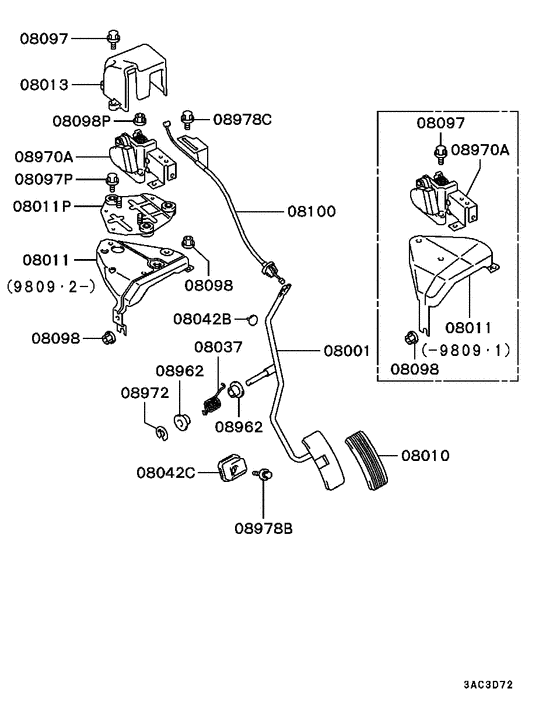

Engine control (RHD..CABLE TYPE -0208.3) Diagram Mitsubishi SPACE STAR
- Year
- 2001 - 2002
- Sales region
- EUR/NEDCAR
- Note
- JAM,5FM/T RHD
- transmission
- 5FM/T
- grade
- JAM
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
08010
|
08010
MB181266 PEDAL, ACCEL |
MB181266 |
from US $8.37 |
||
|
08013
|
08013
MR911351
COVER,ACCEL SENSOR
|
MR911351 |
— | ||
|
08037
|
08037
MR103605
SPRING, ACCEL PEDAL ARM RETURN
|
MR103605 |
— | ||
|
08042B
|
08042B
MB134911
STOPPER, BRAKE PEDAL
|
MB134911 |
— | ||
| replacement | |||||
|
08042B
|
08042B
MA306227 STOPPER, ACCEL PEDAL ARM |
MA306227 |
from US $1.58 |
||
|
08042C
|
08042C
MR407093 STOPPER, ACCEL PEDAL ARM |
MR407093 |
US $5.48 |
||
|
08097
|
08097
M946544 BOLT, ENG OIL COOLER LINEFlange,6x16 |
M946544 |
US $2.37 |
||
|
08097P
|
08097P
M969215
BOLT,ENG AIR INTAKE LINE
|
M969215 |
— | ||
|
08098
|
08098
M945407 NUT, CRUISE CONTROL EQUIPFlange,6 |
M945407 |
US $2.19 |
||
|
08098P
|
08098P
M945408 NUT, T/M CONTROL UNITFlange,8 |
M945408 |
US $1.48 |
||
|
08962
|
08962
MB539102 BUSHING, ACCEL CONTROL EQUIP |
MB539102 |
US $6.84 |
||
|
08962
|
08962
MR911644 BUSHING, ACCEL CONTROL EQUIP |
MR911644 |
US $8.88 |
||
|
08970A
|
08970A
MD358645
SENSOR ASSY,ACCEL
|
MD358645 |
— | ||
|
08972
|
08972
M951670 SNAP RING, ACCEL CONTROL EQUIP |
M951670 |
US $2.52 |
||
|
08978B
|
08978B
M811891 BOLT, STEERING COLUMNM6x20 |
M811891 |
US $2.22 |
||
|
08978C
|
08978C
M945414 BOLT, ACCEL CONTROL EQUIPFlange,m6x14 |
M945414 |
US $2.22 |
||
