Component List SPACE WAGON
A/t case (ALL (EQUIPMENT PARTS OF T/M CASE))

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
25156	25156 MB001265 PLUG KIT, RR AXLE HOUSING	MB001265	from US $4.49
26100A	26100A MD715551 CASE ASSY, A/T	MD715551	US $877.97
26100A	26100A MD721477 CASE ASSY, A/T	MD721477	US $796.43
26100A	26100A MD725832 CASE ASSY, A/T	MD725832	US $796.43
26100A	26100A MD726759 CASE ASSY, A/T	MD726759	US $544.54
26100A	26100A MD729984 CASE ASSY,A/T	MD729984	US $861.95
26100A	26100A MD732247 CASE ASSY,A/T	MD732247	—
26100A	26100A MD738845 CASE ASSY,A/T	MD738845	—
26106	26106 MD714737 BRACKET, A/T CASE MOUNTING	MD714737	US $92.50
26106	26106 MD723811 BRACKET,A/T CASE MOUNTING	MD723811	—
26106	26106 MD731239 BRACKET,A/T CASE MOUNTING	MD731239	—
26106	26106 MD737081 BRACKET,A/T CASE MOUNTING	MD737081	—
26106	26106 MD739516 BRACKET,A/T CASE MOUNTING	MD739516	—
26119	26119 MD728103 CAP, A/T CASE	MD728103	US $6.29
26119	26119 MT209219 CAP, CLUTCH HOUSING BREATHER PIPE	MT209219	US $2.37
26120	26120 MD700782 GASKET, A/T CASE TO CLUTCH HOUSING	MD700782	US $19.98
26120	26120 MD721395 GASKET, A/T CASE TO CLUTCH HOUSING	MD721395	US $19.98
26120	26120 MD730804 GASKET, A/T CASE TO CLUTCH HOUSING	MD730804	US $34.78
26133	26133 MD711938 HOUSING, A/T TORQUE CONVERTER	MD711938	US $556.19
26133	26133 MD721396 HOUSING, A/T TORQUE CONVERTER	MD721396	US $557.65
26133	26133 MD721830 HOUSING, A/T TORQUE CONVERTER	MD721830	US $419.33
26134	26134 MD713479 OIL PAN, A/T CASE	MD713479	US $79.92
26134	26134 MD728630 OIL PAN, A/T CASE	MD728630	US $99.90
26134	26134 MD735353 OIL PAN, A/T CASE	MD735353	US $95.46
26145	26145 MD714286 RETAINER, A/T CASE ANCHOR ROD	MD714286	US $3.70
26147	26147 MD715555 ROD, A/T CASE ANCHOR	MD715555	US $53.28
26151	26151 MD707606 ROD, A/T PARKING PAWL	MD707606	US $14.21
26151	26151 MD723227 ROD, A/T PARKING PAWL	MD723227	US $18.50
26151	26151 MD733430 ROD, A/T PARKING PAWL	MD733430	US $15.54
26163	26163 MD707617 SUPPORT, A/T PARKING PAWL ROD	MD707617	US $20.72
26210	26210 MD707198 PLUG KIT, A/T CASE	MD707198	US $5.48
26283XB	26283XB MD707204 SEAL RING, A/T CASE 22	MD707204	US $5.18
26283XC	26283XC MD707202 SEAL RING, A/T CASE 45	MD707202	US $5.77
26285	26285 MF472405 PIN, CYLINDER BLOCK Dowel,10x20	MF472405	from US $1.31
26286PC	26286PC MD707200 O-RING, OIL FILTER	MD707200	—
	replacement
26286PC	26286PC MR486844 O-RING, A/T CASE 9.8	MR486844	from US $1.25
26286PD	26286PD MD707187 O-RING, A/T CASE	MD707187	—
	replacement
26286PD	26286PD 2502A002 PLUG KIT, A/T CASE	2502A002	US $2.46
26286YB	26286YB MD707193 O-RING, A/T CASE 84	MD707193	US $6.36
26286YB	26286YB MD722636 O-RING, A/T CASE 87.8	MD722636	US $8.44
26289	26289 MB001294 Gasket, Drain Plug D=18.2	MB001294	from US $1.11
26289	26289 MF660035 GASKET, ENG OIL PAN DRAIN PLUG D=14	MF660035	from US $0.66
26291	26291 MD707199 JOINT, A/T CASE	MD707199	US $10.21
	replacement
26291	26291 2502A007 JOINT, A/T CASE	2502A007	US $6.66
26297SC	26297SC MF241223 BOLT, ROCKER COVER Washer assembled,6x12	MF241223	from US $1.05
26297SC	26297SC MF241823 BOLT, FUEL INJECTOR Washer assembled,6x12	MF241823	US $3.42
26297YB	26297YB MD700758 BOLT, M/T CASE Washer assembled,8x20	MD700758	US $1.92
26297YD	26297YD MF241262 BOLT, ENG RH COVER Washer assembled,8x45	MF241262	US $4.10
26297ZB	26297ZB MF241309 BOLT, ENG MOUNTING Washer assembled,12x30	MF241309	from US $1.50
26299PC	26299PC MD050316 PLUG, ENG OIL PAN...	MD050316	from US $5.32
26301	26301 MD050316 PLUG, ENG OIL PAN...	MD050316	from US $5.32
26302	26302 MD050317 GASKET, ENG OIL PAN DRAIN PLUG D=14	MD050317	from US $1.23
26303	26303 MD707820 GAUGE, A/T OIL LEVEL	MD707820	US $25.16
26303	26303 MD731323 GAUGE, A/T OIL LEVEL	MD731323	US $24.42
26303	26303 MD738837 GAUGE, A/T OIL LEVEL	MD738837	US $23.68
26304	26304 MD955485 MAGNET, M/T CASE	MD955485	from US $2.20
26310	26310 MD707183 GASKET, A/T OIL PAN	MD707183	US $7.84
26400	26400 MD707600 LEVER, A/T MANUAL CONTROL	MD707600	US $10.36
26400	26400 MD719202 LEVER, A/T MANUAL CONTROL	MD719202	US $9.77
26400	26400 MD734278 LEVER, A/T MANUAL CONTROL	MD734278	US $20.72
26406	26406 MD715717 CABLE, A/T THROTTLE CONTROL	MD715717	US $55.50
26406	26406 MD726593 CABLE,A/T THROTTLE CONTROL	MD726593	—
26406	26406 MD738703 CABLE,A/T THROTTLE CONTROL	MD738703	—
26411	26411 MD715044 GASKET, A/T ACCUMULATOR PISTON	MD715044	US $6.51
26411	26411 MD733467 GASKET, A/T ACCUMULATOR PISTON	MD733467	US $7.25
26415	26415 MD715043 PISTON, A/T ACCUMULATOR	MD715043	US $17.02
26415	26415 MD733466 PISTON, A/T ACCUMULATOR	MD733466	US $19.98
26422	26422 MD714764 PULSE GENERATOR, A/T	MD714764	US $119.14
26422	26422 MD724631 PULSE GENERATOR, A/T	MD724631	US $130.98
26422	26422 MD731243 PULSE GENERATOR, A/T	MD731243	US $144.30
26427	26427 MD707595 SHAFT, A/T MANUAL CONTROL LEVER	MD707595	US $50.32
26427	26427 MD726962 SHAFT, A/T MANUAL CONTROL LEVER	MD726962	US $45.14
26427	26427 MD728646 SHAFT, A/T MANUAL CONTROL LEVER	MD728646	US $41.44
26427	26427 MD738300 SHAFT, A/T MANUAL CONTROL LEVER	MD738300	US $44.40
26432	26432 MD717619 SPRING, A/T MANUAL CONTROL SHAFT POPPET	MD717619	US $2.07
26432	26432 MD727498 SPRING, A/T MANUAL CONTROL SHAFT POPPET	MD727498	US $2.07
26432	26432 MD728178 SPRING, A/T MANUAL CONTROL SHAFT POPPET	MD728178	US $1.92
26432	26432 MD955461 SPRING, A/T MANUAL CONTROL SHAFT POPPET	MD955461	US $3.40
26434	26434 MD711965 SWITCH, A/T CASE INHIBITOR	MD711965	US $125.06
26434	26434 MD730801 SWITCH, A/T CASE INHIBITOR	MD730801	US $113.22
26438	26438 MD728554 SEAT, A/T MANUAL CONTROL SHAFT POPPET SPRING	MD728554	US $5.18
26962	26962 MD707601 SET SCREW, A/T CONTROL EQUIP 8x11.3	MD707601	US $3.55
26963	26963 MF450406 WASHER Spring,10	MF450406	from US $0.41
26969	26969 MD707603 O-RING, A/T CASE 8	MD707603	US $3.11
	replacement
26969	26969 2781A005 O-RING, A/T CASE 7.8	2781A005	US $3.11
26969PC	26969PC MD707603 O-RING, A/T CASE 8	MD707603	US $3.11
	replacement
26969PC	26969PC 2781A005 O-RING, A/T CASE 7.8	2781A005	US $3.11
26969PC	26969PC MD726966 O-RING, A/T CONTROL EQUIP 8.2	MD726966	from US $1.29
26969PD	26969PD MD707200 O-RING, OIL FILTER	MD707200	—
	replacement
26969PD	26969PD MR486844 O-RING, A/T CASE 9.8	MR486844	from US $1.25
26969UE	26969UE MD611717 O-RING, A/T CONTROL EQUIP	MD611717	US $2.46
26971	26971 MF430006 NUT 10	MF430006	from US $1.35
26972	26972 MF660032 GASKET, ENG OIL LINE 8	MF660032	from US $1.29
26974PC	26974PC MD707930 CLAMP, A/T CONTROL EQUIP	MD707930	US $5.18
26976SB	26976SB MF140205 BOLT, CYLINDER BLOCK Flange,6x16	MF140205	from US $0.82
26976SC	26976SC MF140204 BOLT, ACCEL CABLE SUPPORT Flange,6x14	MF140204	from US $0.80
26976YB	26976YB MF140227 BOLT, ROCKER COVER Flange,8x25	MF140227	from US $0.96
26977	26977 MF540010 BALL, CAMSHAFT 5/16	MF540010	from US $1.31
27617	27617 MD707195 COVER, A/T KICKDOWN SERVO SLEEVE	MD707195	US $15.54
27617	27617 MD719814 COVER, A/T KICKDOWN SERVO SLEEVE	MD719814	US $56.98
27621	27621 MD707194 D-RING, A/T CASE 73	MD707194	US $8.14
27621	27621 MD719815 D-RING, T/F CASE 77.7	MD719815	US $7.25
27655	27655 MD707197 HOLDER, T/F DRIVEN GEAR COVER	MD707197	US $5.03
27655	27655 MD722544 HOLDER, T/F DRIVEN GEAR COVER	MD722544	US $4.29
27676	27676 MD710338 RETAINER, A/T T/F DRIVE SHAFT BEARING	MD710338	US $17.02
27676	27676 MD722542 RETAINER, A/T T/F DRIVE SHAFT BEARING	MD722542	US $79.18
32268	32268 MD707184 OIL SEAL,RR DIFF SIDE BEARING,LH	MD707184	from US $4.78
23 310	A/t oil cooler & tube 23 310

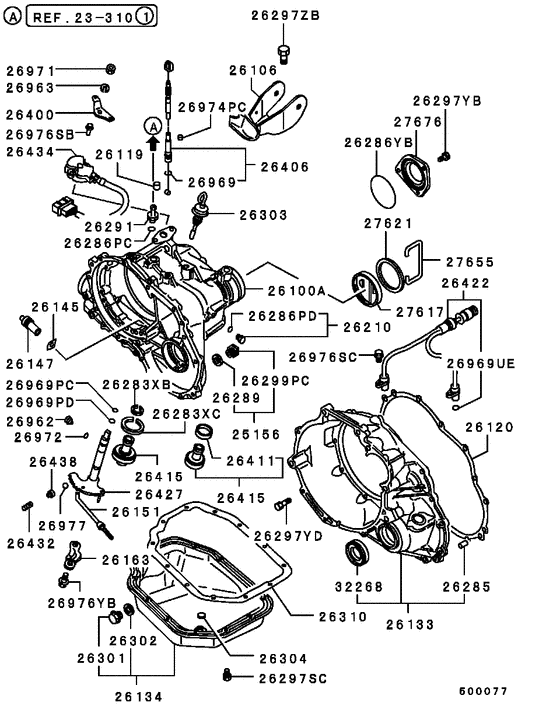

A/t case (ALL (EQUIPMENT PARTS OF T/M CASE)) Diagram Mitsubishi SPACE WAGON PUERTO RICO&GUAM 1863701-163617

A/t case (ALL (EQUIPMENT PARTS OF T/M CASE)) Diagram Mitsubishi SPACE WAGON PUERTO RICO&GUAM 1863701-163617
