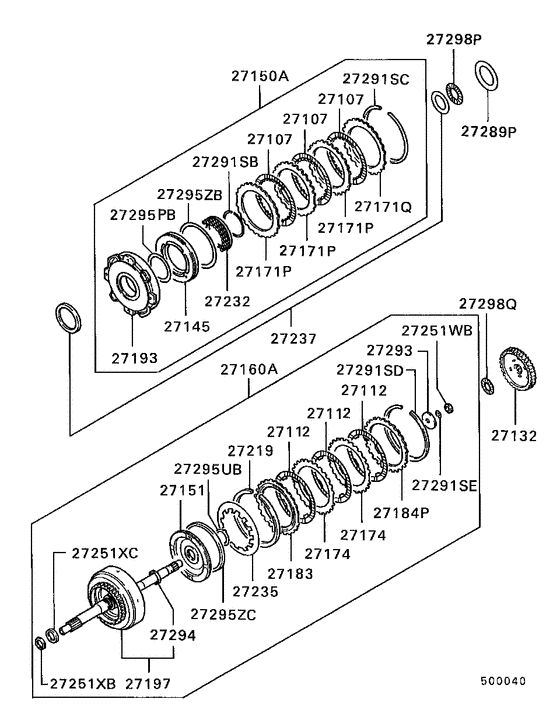

A/t clutch (9002.1-) Diagram Mitsubishi SPACE WAGON
- Year
- 1983 - 1991
- Sales region
- PUERTO RICO&GUAM
- Note
- MEDIUM LINE,3FA/T DOD-FED
- drive
- 2WD
- transmission
- 3FA/T
- grade
- MEDIUM LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27107
|
27107
MD713655 DISC, A/T FR CLUTCH |
MD713655 |
US $43.20 |
||
|
27107
|
27107
MD722555 DISC, A/T RR CLUTCH |
MD722555 |
US $54.72 |
||
|
27107
|
27107
MD737892 DISC, A/T RR CLUTCH |
MD737892 |
from US $43.28 |
||
|
27112
|
27112
MD713655 DISC, A/T FR CLUTCH |
MD713655 |
US $43.20 |
||
|
27112
|
27112
MD722555 DISC, A/T RR CLUTCH |
MD722555 |
US $54.72 |
||
|
27112
|
27112
MD737892 DISC, A/T RR CLUTCH |
MD737892 |
from US $43.28 |
||
|
27132
|
27132
MD712536 HUB, A/T RR CLUTCH |
MD712536 |
US $92.16 |
||
|
27132
|
27132
MD722562 HUB, A/T RR CLUTCH |
MD722562 |
US $106.56 |
||
|
27145
|
27145
MD707280 PISTON, A/T CLUTCH |
MD707280 |
US $33.84 |
||
|
27145
|
27145
MD731319 PISTON, A/T CLUTCH |
MD731319 |
US $54.72 |
||
|
27150A
|
27150A
MD711882 CLUTCH ASSY, A/T, FR |
MD711882 |
US $521.28 |
||
|
27150A
|
27150A
MD731573 CLUTCH ASSY, A/T, FR |
MD731573 |
US $596.16 |
||
|
27151
|
27151
MD707240 PISTON, A/T CLUTCH |
MD707240 |
US $39.60 |
||
|
27151
|
27151
MD723037 PISTON, A/T CLUTCH |
MD723037 |
US $84.96 |
||
|
27160A
|
27160A
MD711939 CLUTCH ASSY, A/T, RR |
MD711939 |
US $650.88 |
||
|
27160A
|
27160A
MD720117 CLUTCH ASSY, A/T, RR |
MD720117 |
US $649.44 |
||
|
27160A
|
27160A
MD732248
CLUTCH ASSY,A/T,RR
|
MD732248 |
— | ||
|
27171P
|
27171P
MD707256 PLATE, A/T FR CLUTCH REACTION |
MD707256 |
US $38.16 |
||
|
27171P
|
27171P
MD722559
PLATE, A/T FR CLUTCH REACTION
|
MD722559 |
— | ||
|
27171P
|
27171P
MD727157 PLATE, A/T FR CLUTCH REACTION |
MD727157 |
US $38.16 |
||
|
27171Q
|
27171Q
MD707256 PLATE, A/T FR CLUTCH REACTION |
MD707256 |
US $38.16 |
||
|
27171Q
|
27171Q
MD715064 PLATE, A/T RR CLUTCH REACTION |
MD715064 |
US $38.16 |
||
|
27171Q
|
27171Q
MD722557 PLATE, A/T FR CLUTCH REACTION |
MD722557 |
US $48.84 |
||
|
27171Q
|
27171Q
MD727157 PLATE, A/T FR CLUTCH REACTION |
MD727157 |
US $38.16 |
||
|
27174
|
27174
MD707255 PLATE, A/T RR CLUTCH |
MD707255 |
US $38.16 |
||
|
27174
|
27174
MD722556 PLATE, A/T RR CLUTCH |
MD722556 |
US $66 |
||
|
27183
|
27183
MD707251 PLATE, A/T RR CLUTCH PRESSURE |
MD707251 |
US $38.16 |
||
|
27183
|
27183
MD732408 PLATE, A/T RR CLUTCH PRESSURE |
MD732408 |
US $48.84 |
||
|
27184P
|
27184P
MD715064 PLATE, A/T RR CLUTCH REACTION |
MD715064 |
US $38.16 |
||
|
27184P
|
27184P
MD722557 PLATE, A/T FR CLUTCH REACTION |
MD722557 |
US $48.84 |
||
|
27193
|
27193
MD704959 RETAINER, A/T FR CLUTCH |
MD704959 |
US $338.40 |
||
|
27193
|
27193
MD720913 RETAINER, A/T FR CLUTCH |
MD720913 |
US $306.72 |
||
|
27193
|
27193
MD727523 RETAINER, A/T FR CLUTCH |
MD727523 |
US $358.56 |
||
|
27197
|
27197
MD711940 RETAINER, A/T RR CLUTCH |
MD711940 |
US $397.44 |
||
|
27197
|
27197
MD718043 RETAINER, A/T RR CLUTCH |
MD718043 |
US $414.72 |
||
|
27197
|
27197
MD729636
RETAINER,A/T RR CLUTCH
|
MD729636 |
— | ||
|
27219
|
27219
MD707253 SPRING, A/T RR CLUTCH WAVE |
MD707253 |
US $10.22 |
||
|
27232
|
27232
MD707295 SPRING, A/T FR CLUTCH PISTON |
MD707295 |
US $11.38 |
||
|
27232
|
27232
MD720543 SPRING, A/T FR CLUTCH PISTON |
MD720543 |
US $11.23 |
||
|
27232
|
27232
MD729580 SPRING, A/T FR CLUTCH PISTON |
MD729580 |
US $18 |
||
|
27232
|
27232
MD729806 SPRING, A/T FR CLUTCH PISTON |
MD729806 |
US $15.84 |
||
|
27235
|
27235
MD707250 SPRING, A/T RR CLUTCH PISTON |
MD707250 |
US $12.96 |
||
|
27237
|
27237
MD707901 THRUST WASHER SET, A/T CLUTCH1.8 & 0.8 |
MD707901 |
US $15.84 |
||
|
27237
|
27237
MD707902 THRUST WASHER SET, A/T CLUTCH2.2 & 1.2 |
MD707902 |
US $15.84 |
||
|
27237
|
27237
MD707903 THRUST WASHER SET, A/T CLUTCH2.6 & 1.6 |
MD707903 |
US $15.84 |
||
|
27237
|
27237
MD707904 THRUST WASHER SET, A/T CLUTCH3.0 & 2.0 |
MD707904 |
US $16.56 |
||
|
27237
|
27237
MD997847 THRUST WASHER SET, A/T CLUTCH1.4 & 1.2 |
MD997847 |
US $18 |
||
|
27237
|
27237
MD997848 THRUST WASHER SET, A/T CLUTCH1.8 & 1.4 |
MD997848 |
US $18 |
||
|
27237
|
27237
MD997849 THRUST WASHER SET, A/T CLUTCH1.8 & 1.6 |
MD997849 |
US $18 |
||
|
27237
|
27237
MD997850 THRUST WASHER SET, A/T CLUTCH2.2 & 1.8 |
MD997850 |
US $18 |
||
|
27237
|
27237
MD997851 THRUST WASHER SET, A/T CLUTCH2.2 & 2.0 |
MD997851 |
US $18.72 |
||
|
27237
|
27237
MD997852 THRUST WASHER SET, A/T CLUTCH2.6 & 2.2 |
MD997852 |
US $18.72 |
||
|
27237
|
27237
MD997853 THRUST WASHER SET, A/T CLUTCH2.6 & 2.4 |
MD997853 |
US $20.16 |
||
|
27237
|
27237
MD997854 THRUST WASHER SET, A/T CLUTCH1.4 & 1.0 |
MD997854 |
US $20.16 |
||
|
27251WB
|
27251WB
MD707237 SEAL RING, A/T CLUTCH10 |
MD707237 |
US $4.32 |
||
|
27251XB
|
27251XB
MD707236 SEAL RING, A/T CLUTCH22 |
MD707236 |
US $6.62 |
||
|
27251XB
|
27251XB
MD722551 SEAL RING, A/T23 |
MD722551 |
from US $4.83 |
||
|
27251XC
|
27251XC
MD707235 SEAL RING, A/T CASE29 |
MD707235 |
US $8.35 |
||
|
27251XC
|
27251XC
MD722639 SEAL RING, A/T31 |
MD722639 |
from US $7.70 |
||
|
27289P
|
27289P
MD707290 THRUST WASHER, A/T CLUTCH1.8 |
MD707290 |
US $12.96 |
||
|
27289P
|
27289P
MD729336 THRUST WASHER, A/T CLUTCH1.8 |
MD729336 |
US $12.67 |
||
|
27291SB
|
27291SB
MD707285 SNAP RING, A/T CLUTCH59 |
MD707285 |
US $4.61 |
||
|
27291SB
|
27291SB
MD720544 SNAP RING, A/T CLUTCH59 |
MD720544 |
US $6.34 |
||
|
27291SB
|
27291SB
MD722581 SNAP RING, A/T CLUTCH58 |
MD722581 |
US $8.50 |
||
|
27291SC
|
27291SC
MD730930 SNAP RING, A/T CLUTCH1.7 |
MD730930 |
US $9.50 |
||
|
27291SC
|
27291SC
MD730931 SNAP RING, A/T CLUTCH1.9 |
MD730931 |
US $9.50 |
||
|
27291SC
|
27291SC
MD730932 SNAP RING, A/T CLUTCH2.1 |
MD730932 |
US $9.50 |
||
|
27291SC
|
27291SC
MD730933 SNAP RING, A/T CLUTCH2.3 |
MD730933 |
US $9.50 |
||
|
27291SC
|
27291SC
MD730934 SNAP RING, A/T CLUTCH2.5 |
MD730934 |
US $9.50 |
||
|
27291SC
|
27291SC
MD730935 SNAP RING, A/T CLUTCH2.7 |
MD730935 |
US $9.50 |
||
|
27291SC
|
27291SC
MD730936 SNAP RING, A/T CLUTCH2.9 |
MD730936 |
US $9.50 |
||
|
27291SC
|
27291SC
MD955630 SNAP RING, A/T BRAKE1.6 |
MD955630 |
US $8.21 |
||
|
27291SC
|
27291SC
MD955631 SNAP RING, A/T BRAKE1.8 |
MD955631 |
US $8.21 |
||
|
27291SC
|
27291SC
MD955632 SNAP RING, A/T BRAKE2.0 |
MD955632 |
US $8.21 |
||
|
27291SC
|
27291SC
MD955633 SNAP RING, A/T BRAKE2.2 |
MD955633 |
US $8.21 |
||
|
27291SC
|
27291SC
MD955634 SNAP RING, A/T BRAKE2.4 |
MD955634 |
US $8.21 |
||
|
27291SC
|
27291SC
MD955635 SNAP RING, A/T BRAKE2.6 |
MD955635 |
US $8.21 |
||
|
27291SC
|
27291SC
MD955636 SNAP RING, A/T BRAKE2.8 |
MD955636 |
US $8.21 |
||
|
27291SC
|
27291SC
MD955637 SNAP RING, A/T BRAKE3.0 |
MD955637 |
US $8.21 |
||
|
27291SD
|
27291SD
MD730930 SNAP RING, A/T CLUTCH1.7 |
MD730930 |
US $9.50 |
||
|
27291SD
|
27291SD
MD730931 SNAP RING, A/T CLUTCH1.9 |
MD730931 |
US $9.50 |
||
|
27291SD
|
27291SD
MD730932 SNAP RING, A/T CLUTCH2.1 |
MD730932 |
US $9.50 |
||
|
27291SD
|
27291SD
MD730933 SNAP RING, A/T CLUTCH2.3 |
MD730933 |
US $9.50 |
||
|
27291SD
|
27291SD
MD730934 SNAP RING, A/T CLUTCH2.5 |
MD730934 |
US $9.50 |
||
|
27291SD
|
27291SD
MD730935 SNAP RING, A/T CLUTCH2.7 |
MD730935 |
US $9.50 |
||
|
27291SD
|
27291SD
MD730936 SNAP RING, A/T CLUTCH2.9 |
MD730936 |
US $9.50 |
||
|
27291SD
|
27291SD
MD955630 SNAP RING, A/T BRAKE1.6 |
MD955630 |
US $8.21 |
||
|
27291SD
|
27291SD
MD955631 SNAP RING, A/T BRAKE1.8 |
MD955631 |
US $8.21 |
||
|
27291SD
|
27291SD
MD955632 SNAP RING, A/T BRAKE2.0 |
MD955632 |
US $8.21 |
||
|
27291SD
|
27291SD
MD955633 SNAP RING, A/T BRAKE2.2 |
MD955633 |
US $8.21 |
||
|
27291SD
|
27291SD
MD955634 SNAP RING, A/T BRAKE2.4 |
MD955634 |
US $8.21 |
||
|
27291SD
|
27291SD
MD955635 SNAP RING, A/T BRAKE2.6 |
MD955635 |
US $8.21 |
||
|
27291SD
|
27291SD
MD955636 SNAP RING, A/T BRAKE2.8 |
MD955636 |
US $8.21 |
||
|
27291SD
|
27291SD
MD955637 SNAP RING, A/T BRAKE3.0 |
MD955637 |
US $8.21 |
||
|
27291SE
|
27291SE
MD704981 SNAP RING, A/T CLUTCH17.4 |
MD704981 |
US $3.60 |
||
|
27291SE
|
27291SE
MD720752 SNAP RING, A/T CLUTCH19.4 |
MD720752 |
US $2.88 |
||
|
27291SE
|
27291SE
MD739501 SNAP RING, A/T CLUTCH19.4 |
MD739501 |
US $5.33 |
||
|
27293
|
27293
MD704980 RACE, A/T CLUTCH |
MD704980 |
US $6.19 |
||
|
27293
|
27293
MD722552 RACE, A/T CLUTCHT=2.4 |
MD722552 |
US $8.21 |
||
|
27294
|
27294
MD732133 O-RING, A/T CLUTCH25.6 |
MD732133 |
US $15.12 |
||
|
27295PB
|
27295PB
MD707279 D-RING, A/T CLUTCH61 |
MD707279 |
US $5.90 |
||
|
27295PB
|
27295PB
MD722577 D-RING, A/T CLUTCH62 |
MD722577 |
US $9.79 |
||
|
27295UB
|
27295UB
MD707248 D-RING, A/T CLUTCH30 |
MD707248 |
US $4.61 |
||
|
27295UB
|
27295UB
MD722586 D-RING, A/T CLUTCH36 |
MD722586 |
US $5.62 |
||
|
27295ZB
|
27295ZB
MD707282 D-RING, A/T CLUTCH109 |
MD707282 |
US $7.49 |
||
|
27295ZC
|
27295ZC
MD707247 D-RING, A/T CLUTCH114 |
MD707247 |
US $7.49 |
||
|
27298P
|
27298P
MD707271 THRUST BEARING, A/T BRAKEThrust,48.09 |
MD707271 |
US $10.80 |
||
|
27298Q
|
27298Q
MD704930 THRUST BEARING, A/T CLUTCH |
MD704930 |
US $9.79 |
||
|
27298Q
|
27298Q
MD720753 THRUST BEARING, A/T CLUTCHThrust,42.6 |
MD720753 |
US $11.09 |
