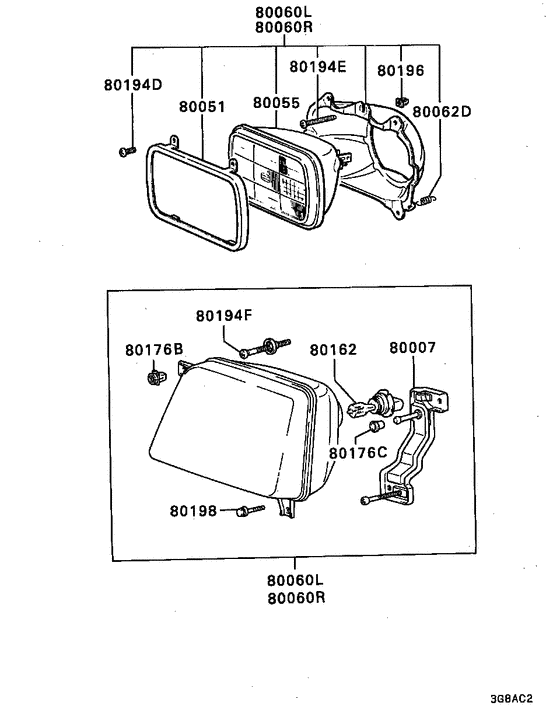

Headlamp Diagram Mitsubishi SPACE WAGON
- Year
- 1983 - 1991
- Sales region
- PUERTO RICO&GUAM
- Note
- MEDIUM LINE,3FA/T DOD-FED
- drive
- 2WD
- transmission
- 3FA/T
- grade
- MEDIUM LINE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
80007
|
80007
MB572423
BRACKET,HEADLAMP BEZEL
|
MB572423 |
— | ||
|
80007
|
80007
MB572424
BRACKET,HEADLAMP BEZEL
|
MB572424 |
— | ||
|
80051
|
80051
MB140585 RING, HEADLAMP RETAINING |
MB140585 |
US $28.73 |
||
|
80055
|
80055
MS820176
SEALED BEAM UNIT
|
MS820176 |
— | ||
| replacement | |||||
|
80055
|
80055
8301A957
HEADLAMP UNIT
|
8301A957 |
— | ||
|
80060L
|
80060L
MB185649
HEADLAMP KIT,LH
|
MB185649 |
— | ||
|
80060L
|
80060L
MB527805
HEADLAMP KIT,LH
|
MB527805 |
— | ||
|
80060R
|
80060R
MB185650
HEADLAMP KIT,RH
|
MB185650 |
— | ||
|
80060R
|
80060R
MB527806
HEADLAMP KIT,RH
|
MB527806 |
— | ||
|
80062D
|
80062D
MB140586 SPRING, HEADLAMP EXTENSION |
MB140586 |
US $4.59 |
||
|
80062D
|
80062D
MB262736
SPRING, HEADLAMP EXTENSION
|
MB262736 |
— | ||
|
80162
|
80162
MS820958
BULB,HEADLAMP
|
MS820958 |
— | ||
|
80176B
|
80176B
MB509891
BEARING,HEADLAMP
|
MB509891 |
— | ||
|
80194D
|
80194D
MB414629 SCREW, HEADLAMPMachine,4x8 |
MB414629 |
US $3.83 |
||
|
80194E
|
80194E
MB083557 SCREW, HEADLAMPAdjusting,5x45 |
MB083557 |
US $8.29 |
||
|
80194E
|
80194E
MB140587 SCREW,HEADLAMP |
MB140587 |
US $7.10 |
||
|
80194F
|
80194F
MB572425
SCREW,HEADLAMP
|
MB572425 |
— | ||
|
80196
|
80196
MS480009 GROMMET, RADIATOR GRILLEScrew,5 |
MS480009 |
US $2.96 |
||
|
80198
|
80198
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
