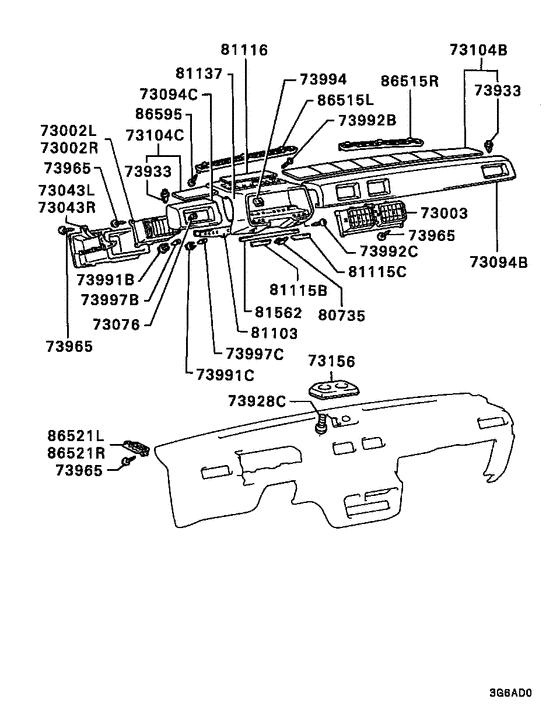

I/panel & related parts (INSTRUMENT PAD ETC.) Diagram Mitsubishi SPACE WAGON
- Year
- 1983 - 1991
- Sales region
- PUERTO RICO&GUAM
- Note
- MEDIUM LINE,3FA/T DOD-FED
- drive
- 2WD
- transmission
- 3FA/T
- grade
- MEDIUM LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
73002L
|
73002L
MB280403 AIR OUTLET, INSTRUMENT PANEL SIDE, LH |
MB280403 |
US $44.40 |
||
|
73002R
|
73002R
MB280404 AIR OUTLET, INSTRUMENT PANEL SIDE, RH |
MB280404 |
US $44.40 |
||
|
73003
|
73003
MB280409 AIR OUTLET, INSTRUMENT PANEL, CTR |
MB280409 |
US $68.08 |
||
|
73043L
|
73043L
MB280405 DUCT, INSTRUMENT PANEL AIR OUTLET, LH |
MB280405 |
US $56.24 |
||
|
73043R
|
73043R
MB280406 DUCT, INSTRUMENT PANEL AIR OUTLET, RH |
MB280406 |
US $56.24 |
||
|
73076
|
73076
MB244050 KNOB, INSTRUMENT PANEL AIR OUTLET |
MB244050 |
US $4.74 |
||
|
73094B
|
73094B
MB440924
PAD,INSTRUMENT PANEL
|
MB440924 |
— | ||
|
73094B
|
73094B
MB440925
PAD,INSTRUMENT PANEL
|
MB440925 |
— | ||
|
73094B
|
73094B
MB454059
PAD,INSTRUMENT PANEL
|
MB454059 |
— | ||
|
73094B
|
73094B
MB493085
PAD,INSTRUMENT PANEL
|
MB493085 |
— | ||
|
73094B
|
73094B
MB718584
PAD,INSTRUMENT PANEL
|
MB718584 |
— | ||
|
73094B
|
73094B
MB756887
PAD,INSTRUMENT PANEL
|
MB756887 |
— | ||
|
73094C
|
73094C
MB440929
PAD,INSTRUMENT PANEL
|
MB440929 |
— | ||
|
73094C
|
73094C
MB440930
PAD,INSTRUMENT PANEL
|
MB440930 |
— | ||
|
73094C
|
73094C
MB454060
PAD,INSTRUMENT PANEL
|
MB454060 |
— | ||
|
73094C
|
73094C
MB493086
PAD,INSTRUMENT PANEL
|
MB493086 |
— | ||
|
73094C
|
73094C
MB718585
PAD,INSTRUMENT PANEL
|
MB718585 |
— | ||
|
73094C
|
73094C
MB756888
PAD,INSTRUMENT PANEL
|
MB756888 |
— | ||
|
73104B
|
73104B
MB440941
TRIM,INSTRUMENT PANEL
|
MB440941 |
— | ||
|
73104B
|
73104B
MB440942
TRIM,INSTRUMENT PANEL
|
MB440942 |
— | ||
|
73104B
|
73104B
MB454071
TRIM,INSTRUMENT PANEL
|
MB454071 |
— | ||
|
73104B
|
73104B
MB493099
TRIM,INSTRUMENT PANEL
|
MB493099 |
— | ||
|
73104B
|
73104B
MB493100
TRIM,INSTRUMENT PANEL
|
MB493100 |
— | ||
|
73104B
|
73104B
MB493101
TRIM,INSTRUMENT PANEL
|
MB493101 |
— | ||
|
73104B
|
73104B
MB718587
TRIM,INSTRUMENT PANEL
|
MB718587 |
— | ||
|
73104B
|
73104B
MB756890
TRIM,INSTRUMENT PANEL
|
MB756890 |
— | ||
|
73104C
|
73104C
MB440943
TRIM,INSTRUMENT PANEL
|
MB440943 |
— | ||
|
73104C
|
73104C
MB440944
TRIM,INSTRUMENT PANEL
|
MB440944 |
— | ||
|
73104C
|
73104C
MB454072
TRIM,INSTRUMENT PANEL
|
MB454072 |
— | ||
|
73104C
|
73104C
MB493098
TRIM,INSTRUMENT PANEL
|
MB493098 |
— | ||
|
73104C
|
73104C
MB718586
TRIM,INSTRUMENT PANEL
|
MB718586 |
— | ||
|
73104C
|
73104C
MB756889
TRIM,INSTRUMENT PANEL
|
MB756889 |
— | ||
|
73156
|
73156
MB493081
TRAY,INSTRUMENT PANEL
|
MB493081 |
— | ||
|
73156
|
73156
MB493082
TRAY,INSTRUMENT PANEL
|
MB493082 |
— | ||
|
73156
|
73156
MB493083
TRAY,INSTRUMENT PANEL
|
MB493083 |
— | ||
|
73156
|
73156
MB718639
TRAY,INSTRUMENT PANEL
|
MB718639 |
— | ||
|
73156
|
73156
MB756961
TRAY,INSTRUMENT PANEL
|
MB756961 |
— | ||
|
73928C
|
73928C
MF453016 SCREW, GEARSHIFT LINKTapping,4x10 |
MF453016 |
US $2.74 |
||
|
73928C
|
73928C
MF453032 SCREW, STEERING WHEELTapping,5x14 |
MF453032 |
from US $1.27 |
||
|
73933
|
73933
MB189910
CLIP, FR DOOR TRIM
|
MB189910 |
— | ||
|
73933
|
73933
MB317746 CLIP, FR DOOR TRIM |
MB317746 |
from US $1.15 |
||
|
73933
|
73933
MB603212 CLIP, INSTRUMENT PANEL PAD |
MB603212 |
US $3.11 |
||
|
73965
|
73965
MB259950 SCREW, STEERING COLUMN COVERTapping,5x12 |
MB259950 |
US $2.66 |
||
|
73965
|
73965
MB409437 SCREW, STEERING COLUMN COVERTapping,5x12 |
MB409437 |
from US $1.91 |
||
|
73991B
|
73991B
MB045009 SOCKET, INSTRUMENT PANEL TRIM PLATE |
MB045009 |
from US $1.91 |
||
|
73991C
|
73991C
MB066067 SOCKET, INSTRUMENT PANEL TRIM PLATE |
MB066067 |
from US $2.05 |
||
|
73992B
|
73992B
MF453033 SCREW, TAPPING, 5x16Tapping,5x16 |
MF453033 |
from US $1.66 |
||
|
73992C
|
73992C
MF453688 SCREW, GLOVEBOXTapping,5x20 |
MF453688 |
from US $1.97 |
||
|
73994
|
73994
MB135995 NUT, FUEL FILLER LID LOCKINGSpring,5 |
MB135995 |
from US $1.46 |
||
|
73997B
|
73997B
MF820572 BULB, GLOVEBOX |
MF820572 |
US $1.50 |
||
| replacement | |||||
|
73997B
|
73997B
MB439505
BULB, HEATER CONTROL EQUIP
|
MB439505 |
— | ||
|
73997C
|
73997C
MS820083 BULB, GEARSHIFT LINK |
MS820083 |
from US $2.15 |
||
|
80735
|
80735
MB280512 SHADE, COMBINATION METER LAMP |
MB280512 |
US $5.92 |
||
|
81103
|
81103
MB280516
BOARD,COMBINATION METER PRINTED CIRCUIT
|
MB280516 |
— | ||
|
81115B
|
81115B
MB280514 COVER, COMBINATION METER HOOD HOLE |
MB280514 |
US $9.92 |
||
|
81115C
|
81115C
MB280513 COVER, COMBINATION METER HOOD HOLE |
MB280513 |
US $9.92 |
||
|
81116
|
81116
MB217752 COVER, COMBINATION METER HOOD |
MB217752 |
US $19.98 |
||
|
81116
|
81116
MB217753 COVER, COMBINATION METER HOOD |
MB217753 |
US $19.98 |
||
|
81116
|
81116
MB454076 COVER, COMBINATION METER HOOD |
MB454076 |
US $19.98 |
||
|
81116
|
81116
MB493125
COVER,COMBINATION METER HOOD
|
MB493125 |
— | ||
|
81116
|
81116
MB718594
COVER,COMBINATION METER HOOD
|
MB718594 |
— | ||
|
81116
|
81116
MB756896
COVER,COMBINATION METER HOOD
|
MB756896 |
— | ||
|
81137
|
81137
MB440951
HOOD,COMBINATION METER
|
MB440951 |
— | ||
|
81137
|
81137
MB440952
HOOD,COMBINATION METER
|
MB440952 |
— | ||
|
81137
|
81137
MB454077
HOOD,COMBINATION METER
|
MB454077 |
— | ||
|
81137
|
81137
MB493126
HOOD,COMBINATION METER
|
MB493126 |
— | ||
|
81137
|
81137
MB718603
HOOD,COMBINATION METER
|
MB718603 |
— | ||
|
81137
|
81137
MB756905
HOOD,COMBINATION METER
|
MB756905 |
— | ||
|
81562
|
81562
MB280522
LENS,INSTRUMENT PANEL WARNING INDICATOR
|
MB280522 |
— | ||
|
81562
|
81562
MB562723
LENS,INSTRUMENT PANEL WARNING INDICATOR
|
MB562723 |
— | ||
|
86515L
|
86515L
MB326794 GARNISH, DEFROSTER, LH |
MB326794 |
US $44.40 |
||
|
86515L
|
86515L
MB326795 GARNISH, DEFROSTER, LH |
MB326795 |
US $44.40 |
||
|
86515L
|
86515L
MB454061 GARNISH, DEFROSTER, LH |
MB454061 |
US $44.40 |
||
|
86515L
|
86515L
MB493087
GARNISH,DEFROSTER,LH
|
MB493087 |
— | ||
|
86515L
|
86515L
MB718595
GARNISH,DEFROSTER,LH
|
MB718595 |
— | ||
|
86515L
|
86515L
MB756897
GARNISH,DEFROSTER,LH
|
MB756897 |
— | ||
|
86515R
|
86515R
MB326796 GARNISH, DEFROSTER, RH |
MB326796 |
US $44.40 |
||
|
86515R
|
86515R
MB326797 GARNISH, DEFROSTER, RH |
MB326797 |
US $44.40 |
||
|
86515R
|
86515R
MB454062 GARNISH, DEFROSTER, RH |
MB454062 |
US $44.40 |
||
|
86515R
|
86515R
MB493088
GARNISH,DEFROSTER,RH
|
MB493088 |
— | ||
|
86515R
|
86515R
MB718596
GARNISH,DEFROSTER,RH
|
MB718596 |
— | ||
|
86515R
|
86515R
MB756898
GARNISH,DEFROSTER,RH
|
MB756898 |
— | ||
|
86521L
|
86521L
MB326798 GRILLE, SIDE DEFROSTER, LH |
MB326798 |
US $12.14 |
||
|
86521L
|
86521L
MB326799 GRILLE, SIDE DEFROSTER, LH |
MB326799 |
US $12.14 |
||
|
86521L
|
86521L
MB454100 GRILLE, SIDE DEFROSTER, LH |
MB454100 |
US $12.14 |
||
|
86521L
|
86521L
MB493152
GRILLE,SIDE DEFROSTER,LH
|
MB493152 |
— | ||
|
86521L
|
86521L
MB718597
GRILLE,SIDE DEFROSTER,LH
|
MB718597 |
— | ||
|
86521L
|
86521L
MB756899
GRILLE,SIDE DEFROSTER,LH
|
MB756899 |
— | ||
|
86521R
|
86521R
MB326800 GRILLE, SIDE DEFROSTER, RH |
MB326800 |
US $12.14 |
||
|
86521R
|
86521R
MB326801 GRILLE, SIDE DEFROSTER, RH |
MB326801 |
US $12.14 |
||
|
86521R
|
86521R
MB454101 GRILLE, SIDE DEFROSTER, RH |
MB454101 |
US $12.14 |
||
|
86521R
|
86521R
MB493153
GRILLE,SIDE DEFROSTER,RH
|
MB493153 |
— | ||
|
86521R
|
86521R
MB718598
GRILLE,SIDE DEFROSTER,RH
|
MB718598 |
— | ||
|
86521R
|
86521R
MB756900
GRILLE,SIDE DEFROSTER,RH
|
MB756900 |
— | ||
|
86595
|
86595
MB259950 SCREW, STEERING COLUMN COVERTapping,5x12 |
MB259950 |
US $2.66 |
||
|
86595
|
86595
MB409437 SCREW, STEERING COLUMN COVERTapping,5x12 |
MB409437 |
from US $1.91 |
||
