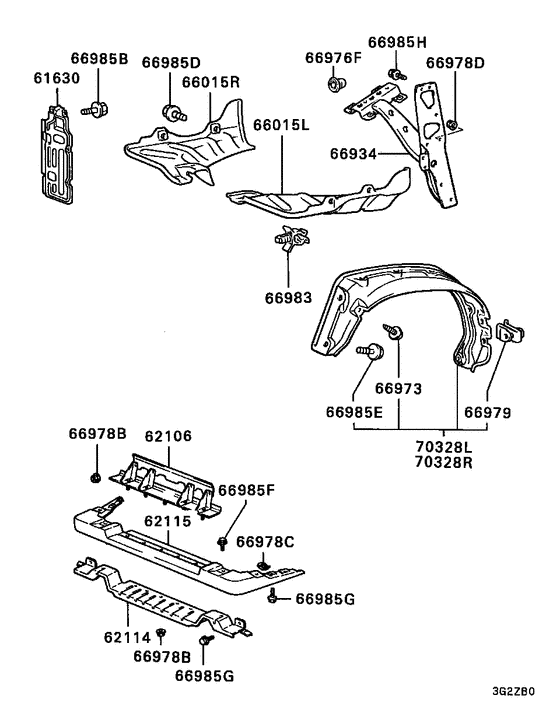

Loose panel Diagram Mitsubishi SPACE WAGON
- Year
- 1983 - 1991
- Sales region
- PUERTO RICO&GUAM
- Note
- MEDIUM LINE,3FA/T DOD-FED
- drive
- 2WD
- transmission
- 3FA/T
- grade
- MEDIUM LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61630
|
61630
MB343461 PANEL, FR END COVER |
MB343461 |
US $45.88 |
||
|
62106
|
62106
MB325337 BRACKET, AIR DAM AIR GUIDE, UPR |
MB325337 |
US $70.30 |
||
|
62114
|
62114
MB325336 PANEL, AIR DAM AIR GUIDE, LWR |
MB325336 |
US $70.30 |
||
|
62115
|
62115
MB325883
PANEL,AIR DAM SKIRT
|
MB325883 |
— | ||
|
62115
|
62115
MB325884 PANEL, AIR DAM SKIRT |
MB325884 |
US $856.13 |
||
|
62115
|
62115
MB325885
PANEL,AIR DAM SKIRT
|
MB325885 |
— | ||
|
62115
|
62115
MB325886
PANEL,AIR DAM SKIRT
|
MB325886 |
— | ||
|
62115
|
62115
MB325937
PANEL,AIR DAM SKIRT
|
MB325937 |
— | ||
|
62115
|
62115
MB453973
PANEL,AIR DAM SKIRT
|
MB453973 |
— | ||
|
62115
|
62115
MB453974 PANEL, AIR DAM SKIRT |
MB453974 |
US $856.13 |
||
|
62115
|
62115
MB453975 PANEL, AIR DAM SKIRT |
MB453975 |
US $821.18 |
||
|
62115
|
62115
MB453976
PANEL,AIR DAM SKIRT
|
MB453976 |
— | ||
|
62115
|
62115
MB453977
PANEL,AIR DAM SKIRT
|
MB453977 |
— | ||
|
62115
|
62115
MB457370
PANEL,AIR DAM SKIRT
|
MB457370 |
— | ||
|
62115
|
62115
MB457371 PANEL, AIR DAM SKIRT |
MB457371 |
US $856.13 |
||
|
62115
|
62115
MB480032 PANEL, AIR DAM SKIRT |
MB480032 |
US $856.13 |
||
|
62115
|
62115
MB480033 PANEL, AIR DAM SKIRT |
MB480033 |
US $856.13 |
||
|
62115
|
62115
MB706545
PANEL,AIR DAM SKIRT
|
MB706545 |
— | ||
|
62115
|
62115
MB706550 PANEL, AIR DAM SKIRT |
MB706550 |
US $856.13 |
||
|
66015L
|
66015L
MB246843 COVER, ENG ROOM UNDER, LH |
MB246843 |
US $59.94 |
||
|
66015R
|
66015R
MB343422 COVER, ENG ROOM UNDER, RHKyouka a/t |
MB343422 |
US $16.28 |
||
|
66015R
|
66015R
MB480135 COVER, ENG ROOM UNDER, RH |
MB480135 |
US $17.02 |
||
|
66934
|
66934
MB480000
STAY,BODY LOOSE PANEL
|
MB480000 |
— | ||
|
66973
|
66973
MS452348 SCREW, STEERING COLUMN |
MS452348 |
from US $2.34 |
||
|
66976F
|
66976F
MB118900
PLUG, BODY
|
MB118900 |
— | ||
| replacement | |||||
|
66976F
|
66976F
MU670031 PLUG, FR DOORPlastic,10 |
MU670031 |
from US $2.81 |
||
|
66976F
|
66976F
MB123623 PLUG, CRUISE CONTROL EQUIPRubber,9 |
MB123623 |
US $2.37 |
||
|
66978B
|
66978B
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
66978C
|
66978C
MS440192 NUT, RADIATOR SHROUDSpring,6 |
MS440192 |
US $3.55 |
||
|
66978D
|
66978D
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
66979
|
66979
MB138567 GROMMET, SPLASH SHIELD6 |
MB138567 |
from US $2.13 |
||
|
66983
|
66983
MB251401 CLIP, ENG ROOM COVER9 |
MB251401 |
US $10.95 |
||
|
66985B
|
66985B
MS100221 BOLT, RADIATOR SHROUDFlange,6x12 |
MS100221 |
US $2.46 |
||
|
66985D
|
66985D
MF140021 BOLT, ACCEL CABLE SUPPORTFlange,8x12 |
MF140021 |
from US $0.43 |
||
|
66985D
|
66985D
MS100065 BOLT, FR FENDERFlange,8x16 |
MS100065 |
US $2.66 |
||
|
66985E
|
66985E
MS100223 BOLT, BODYFlange,6x10 |
MS100223 |
US $2.74 |
||
|
66985F
|
66985F
MB233737 BOLT, AIR DAMWasher assembled,6x18 |
MB233737 |
US $3.26 |
||
|
66985G
|
66985G
MS240142 BOLT, FUEL TANKWasher assembled,6x20 |
MS240142 |
from US $1.07 |
||
|
66985H
|
66985H
MS240126 BOLT, RADIATOR CONDENSER TANKWasher assembled,8x25 |
MS240126 |
from US $1.07 |
||
|
70328L
|
70328L
MB527445 SHIELD KIT, SPLASH, FR LH |
MB527445 |
US $97.68 |
||
|
70328R
|
70328R
MB527446 SHIELD KIT, SPLASH, FR RH |
MB527446 |
US $97.68 |
||
