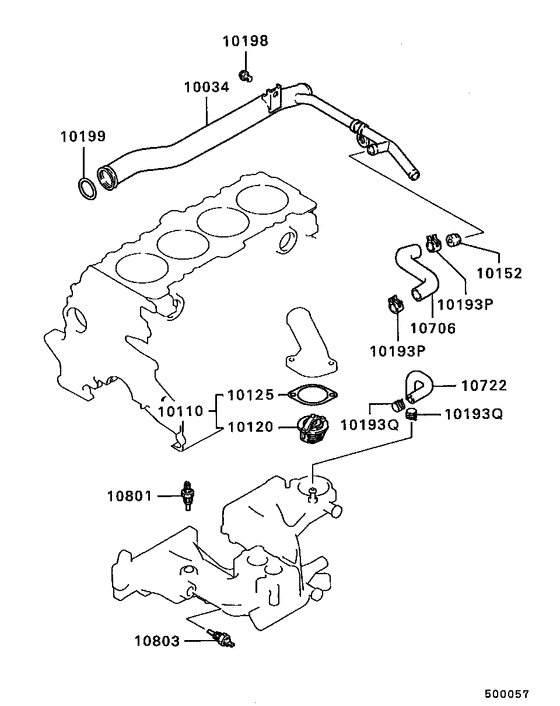

Water pipe & thermostat (CARBURETOR) Diagram Mitsubishi SPACE WAGON
- Year
- 1983 - 1991
- Sales region
- PUERTO RICO&GUAM
- Note
- HIGH LINE,3FA/T DOD-FED
- drive
- 2WD
- transmission
- 3FA/T
- grade
- HIGH LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
10034
|
10034
MD011758
PIPE, WATER PUMP INLET
|
MD011758 |
— | ||
|
10034
|
10034
MD096851
PIPE,WATER PUMP INLET
|
MD096851 |
— | ||
|
10110
|
10110
MD997221
THERMOSTAT KIT
|
MD997221 |
— | ||
| replacement | |||||
|
10110
|
10110
MD972903 THERMOSTAT KIT88 |
MD972903 |
from US $32.92 |
||
|
10110
|
10110
MD997604 THERMOSTAT KIT88 |
MD997604 |
US $45.83 |
||
| replacement | |||||
|
10110
|
10110
MD972903 THERMOSTAT KIT88 |
MD972903 |
from US $32.92 |
||
|
10120
|
10120
MD005131 THERMOSTAT88 |
MD005131 |
US $48.10 |
||
|
10125
|
10125
MD000551 GASKET, THERMOSTAT WATER HOSE FITTING |
MD000551 |
US $3.70 |
||
|
10125
|
10125
MD083109 GASKET, THERMOSTAT WATER HOSE FITTING |
MD083109 |
US $3.70 |
||
|
10125
|
10125
MD118040
GASKET, THERMOSTAT WATER HOSE FITTING
|
MD118040 |
— | ||
| replacement | |||||
|
10125
|
10125
MD184011 GASKET, THERMOSTAT WATER HOSE FITTING |
MD184011 |
from US $6.44 |
||
|
10125
|
10125
MD143639
GASKET, THERMOSTAT WATER HOSE FITTING
|
MD143639 |
— | ||
| replacement | |||||
|
10125
|
10125
MD184011 GASKET, THERMOSTAT WATER HOSE FITTING |
MD184011 |
from US $6.44 |
||
|
10125
|
10125
MD171446 GASKET, THERMOSTAT WATER HOSE FITTING |
MD171446 |
US $7.55 |
||
|
10152
|
10152
MD080341 VALVE, COOLING WATER BY-PASS FLOW CUT |
MD080341 |
US $11.99 |
||
|
10193P
|
10193P
MS660222 CLIP, COOLING WATER LINE21.7 |
MS660222 |
US $5.20 |
||
|
10193Q
|
10193Q
MS660164 CLAMP, T/M OIL COOLER LINED=13.1 |
MS660164 |
from US $1.13 |
||
|
10198
|
10198
MF140021 BOLT, ACCEL CABLE SUPPORTFlange,8x12 |
MF140021 |
from US $0.43 |
||
|
10199
|
10199
MD030764 O-RING, WATER PUMP INRD=33.4 |
MD030764 |
from US $2.81 |
||
|
10706
|
10706
MD009016 HOSE, INLET MANIFOLD WATER BY-PASS |
MD009016 |
from US $13.98 |
||
|
10722
|
10722
MD030630 HOSE, CARB WATER FEED |
MD030630 |
US $8.73 |
||
|
10801
|
10801
MD017918 GAUGE UNIT, WATER TEMPERATURE |
MD017918 |
US $66.60 |
||
|
10801
|
10801
MD091056 GAUGE UNIT, WATER TEMPERATURE |
MD091056 |
from US $33.01 |
||
|
10803
|
10803
MD069879
SENSOR UNIT, WATER TEMPERATURE
|
MD069879 |
— | ||
