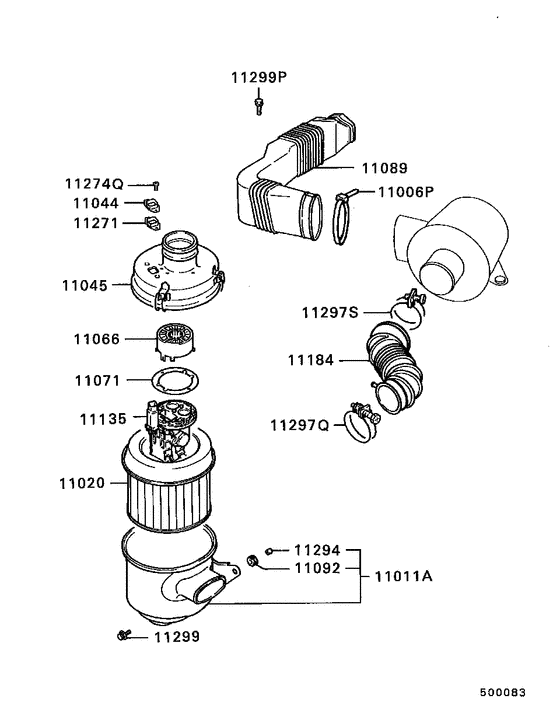

Air cleaner (8612.1-) Diagram Mitsubishi SPACE WAGON
- Year
- 1983 - 1984
- Sales region
- PUERTO RICO&GUAM
- Note
- MEDIUM LINE,5FM/T DOD-FED
- drive
- 2WD
- transmission
- 5FM/T
- grade
- MEDIUM LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11006P
|
11006P
MD107967 BAND, AIR CLEANER370 |
MD107967 |
US $6.51 |
||
|
11011A
|
11011A
MD604548
BODY ASSY,AIR CLEANER
|
MD604548 |
— | ||
|
11011A
|
11011A
MD604972
BODY ASSY,AIR CLEANER
|
MD604972 |
— | ||
|
11011A
|
11011A
MD620137 BODY ASSY, AIR CLEANER |
MD620137 |
US $192.40 |
||
|
11020
|
11020
MD603932
ELEMENT, AIR CLEANER
|
MD603932 |
— | ||
| replacement | |||||
|
11020
|
11020
MR571477 ELEMENT, AIR CLEANER |
MR571477 |
US $73.19 |
||
|
11020
|
11020
MD604952 ELEMENT, AIR CLEANER |
MD604952 |
US $53.28 |
||
|
11044
|
11044
MD620005
COVER, AIR CLEANER FLOW SENSOR CONNECTOR
|
MD620005 |
— | ||
|
11045
|
11045
MD604951 COVER, AIR CLEANER |
MD604951 |
US $29.60 |
||
|
11045
|
11045
MD620138 COVER, AIR CLEANER |
MD620138 |
US $45.88 |
||
|
11045
|
11045
MD620372
COVER,AIR CLEANER
|
MD620372 |
— | ||
|
11066
|
11066
MD620000 FILTER, AIR CLEANER NOISE REDUCTION |
MD620000 |
US $86.58 |
||
|
11066
|
11066
MD620090 FILTER, AIR CLEANER NOISE REDUCTION |
MD620090 |
US $79.18 |
||
|
11071
|
11071
MD620002 GASKET, AIR CLEANER AIR FLOW SENSOR |
MD620002 |
US $13.47 |
||
|
11071
|
11071
MD620340 GASKET, AIR CLEANER AIR FLOW SENSOR |
MD620340 |
US $10.21 |
||
|
11089
|
11089
MD066906 DUCT, AIR CLEANER INTAKE |
MD066906 |
US $23.68 |
||
|
11089
|
11089
MD108412 DUCT,AIR CLEANER INTAKE |
MD108412 |
US $54.76 |
||
|
11089
|
11089
MD132286 DUCT, AIR CLEANER INTAKE |
MD132286 |
US $46.62 |
||
|
11092
|
11092
MD040886 INSULATOR, AIR CLEANER SUPPORT |
MD040886 |
US $3.83 |
||
|
11135
|
11135
MD124550 SENSOR, AIR CLEANER AIR FLOW |
MD124550 |
US $671.22 |
||
|
11135
|
11135
MD124877 SENSOR, AIR CLEANER AIR FLOW |
MD124877 |
US $671.22 |
||
|
11184
|
11184
MD108411 DUCT, AIR CLEANER TO THROTTLE BODY |
MD108411 |
US $132.46 |
||
|
11271
|
11271
MD620003 GROMMET, AIR CLEANER |
MD620003 |
US $7.52 |
||
|
11274Q
|
11274Q
MF350744 SCREW, ENG BREATHERWasher assembled,4x10 |
MF350744 |
US $2.05 |
||
|
11274Q
|
11274Q
MF351284
SCREW, AIR CLEANER INR
|
MF351284 |
— | ||
|
11294
|
11294
MT206583 COLLAR, AIR CLEANER |
MT206583 |
US $2.74 |
||
|
11297Q
|
11297Q
MD124342 CLAMP, AIR CLEANER75 |
MD124342 |
US $4.14 |
||
|
11297Q
|
11297Q
MF661035 CLAMP, AIR CLEANERD=75 |
MF661035 |
from US $2.66 |
||
|
11297S
|
11297S
MD122530
CLAMP, AIR CLEANER
|
MD122530 |
— | ||
|
11297S
|
11297S
MF661041 CLAMP, AIR CLEANERD=90 |
MF661041 |
US $4.38 |
||
|
11299
|
11299
MD041968 BOLT, AIR CLEANERWasher assembled,6x25 |
MD041968 |
US $3.97 |
||
|
11299P
|
11299P
MF244823 BOLT, 6x14Washer assembled,6x14 |
MF244823 |
US $3.01 |
||
|
11299P
|
11299P
MF245423 BOLT, ACCEL CABLE SUPPORTWasher assembled,6x14 |
MF245423 |
US $2.46 |
||
