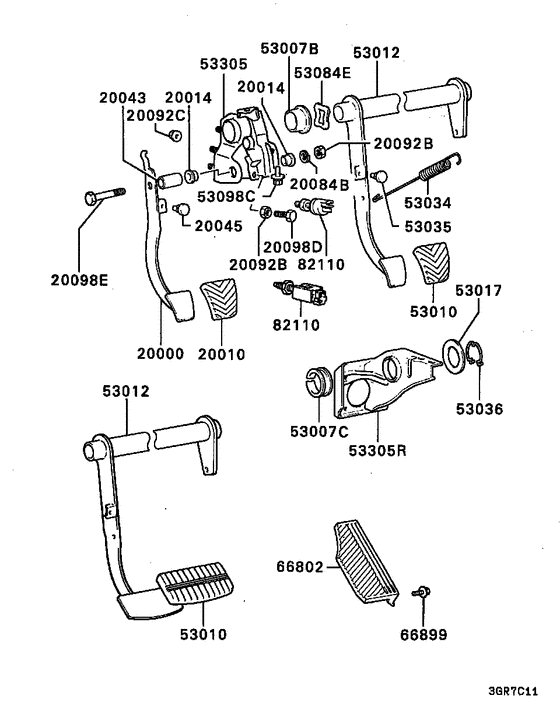

Brake & clutch pedal Diagram Mitsubishi SPACE WAGON
- Year
- 1983 - 1984
- Sales region
- PUERTO RICO&GUAM
- Note
- MEDIUM LINE,5FM/T DOD-FED
- drive
- 2WD
- transmission
- 5FM/T
- grade
- MEDIUM LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20000
|
20000
MB277673
PEDAL,CLUTCH
|
MB277673 |
— | ||
|
20010
|
20010
MB193884 PAD, BRAKE PEDAL62x58-40 |
MB193884 |
from US $3.26 |
||
|
20014
|
20014
MB058634 BUSHING, CLUTCH PEDAL18.3x10 |
MB058634 |
US $3.56 |
||
|
20043
|
20043
MB151139 SPACER, CLUTCH PEDAL56 |
MB151139 |
US $6.70 |
||
|
20045
|
20045
MB004185 STOPPER, ACCEL PEDAL ARM |
MB004185 |
US $4.38 |
||
|
20084B
|
20084B
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.41 |
||
|
20092B
|
20092B
MF430006 NUT10 |
MF430006 |
from US $1.35 |
||
|
20092C
|
20092C
MB133765 NUT, ENG FR MOUNTINGWasher assembled,8 |
MB133765 |
US $1.92 |
||
|
20098D
|
20098D
MS100135 BOLT, CLUTCH PEDAL10x35 |
MS100135 |
US $2.87 |
||
|
20098E
|
20098E
MF104898 BOLT, ENG RR MOUNTING10x75 |
MF104898 |
US $2.52 |
||
|
53007B
|
53007B
MB193194 BUSHING, BRAKE PEDAL |
MB193194 |
US $10.36 |
||
|
53007C
|
53007C
MB193879 BUSHING, BRAKE PEDAL50x14 |
MB193879 |
US $9.18 |
||
|
53010
|
53010
MA152260 PAD, BRAKE PEDAL61x112 |
MA152260 |
from US $5.19 |
||
|
53010
|
53010
MB193884 PAD, BRAKE PEDAL62x58-40 |
MB193884 |
from US $3.26 |
||
|
53012
|
53012
MB277664
PEDAL,BRAKE
|
MB277664 |
— | ||
|
53012
|
53012
MB277665
PEDAL,BRAKE
|
MB277665 |
— | ||
|
53017
|
53017
MB316165 PLATE, BRAKE PEDAL ROD STOPPER |
MB316165 |
US $8.88 |
||
|
53034
|
53034
MB134768 SPRING, BRAKE PEDAL RETURN |
MB134768 |
US $5.18 |
||
|
53034
|
53034
MB151295 SPRING, BRAKE PEDAL RETURN |
MB151295 |
US $4.44 |
||
|
53035
|
53035
MB004185 STOPPER, ACCEL PEDAL ARM |
MB004185 |
US $4.38 |
||
|
53036
|
53036
MB193837
STOPPER,BRAKE PEDAL SHAFT
|
MB193837 |
— | ||
|
53084E
|
53084E
MB193195 WASHER, CLUTCH PEDALWave,41 |
MB193195 |
US $4.74 |
||
|
53098C
|
53098C
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
53305
|
53305
MB277675
MEMBER,PEDAL SUPPORT
|
MB277675 |
— | ||
|
53305
|
53305
MB366399
MEMBER,PEDAL SUPPORT
|
MB366399 |
— | ||
|
53305R
|
53305R
MB277668
MEMBER,PEDAL SUPPORT,RH
|
MB277668 |
— | ||
|
66802
|
66802
MB318889
FOOTREST
|
MB318889 |
— | ||
|
66899
|
66899
MS240055 BOLT, RR BUMPERWasher assembled,6x20 |
MS240055 |
US $2.07 |
||
|
82110
|
82110
MB229024 SWITCH, STOP LAMP |
MB229024 |
from US $13 |
||
|
82110
|
82110
MB435457 SWITCH, STOP LAMP |
MB435457 |
from US $11.02 |
