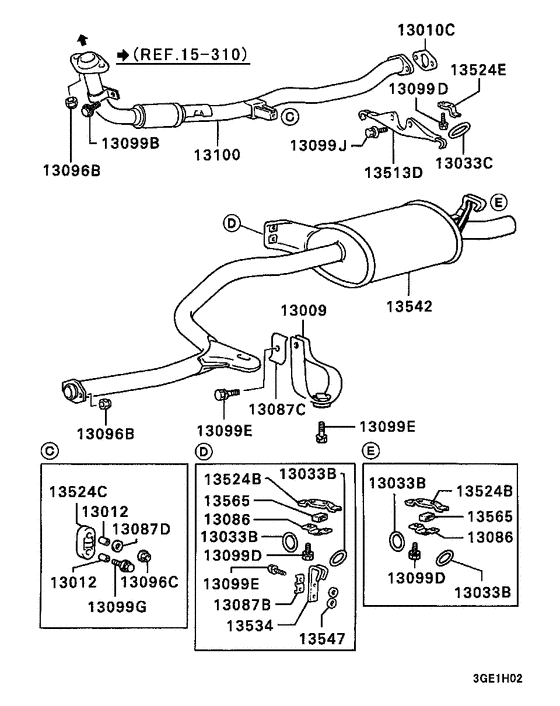

Exhaust pipe & muffler (EXHAUST PIPE,MUFFLER -8611.3) Diagram Mitsubishi SPACE WAGON
- Year
- 1983 - 1984
- Sales region
- PUERTO RICO&GUAM
- Note
- MEDIUM LINE,5FM/T DOD-FED
- drive
- 2WD
- transmission
- 5FM/T
- grade
- MEDIUM LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13009
|
13009
MB111800 BAND, EXHAUST PIPE |
MB111800 |
US $9.77 |
||
|
13009
|
13009
MB376516 BAND, EXHAUST PIPE |
MB376516 |
US $9.32 |
||
|
13009
|
13009
MB514743 BAND, EXHAUST PIPE |
MB514743 |
US $14.36 |
||
|
13010C
|
13010C
MB156180
GASKET, EXHAUST PIPE
|
MB156180 |
— | ||
| replacement | |||||
|
13010C
|
13010C
MB687001 GASKET, EXHAUST PIPE |
MB687001 |
from US $7.88 |
||
|
13010C
|
13010C
MB548649 GASKET, EXHAUST PIPE |
MB548649 |
US $5.33 |
||
|
13010C
|
13010C
MB687002 GASKET, EXHAUST PIPE |
MB687002 |
from US $5.73 |
||
|
13012
|
13012
MB059938 COLLAR, EXHAUST PIPE |
MB059938 |
US $3.01 |
||
|
13012
|
13012
MB514690 COLLAR, EXHAUST PIPE |
MB514690 |
from US $1.85 |
||
|
13033B
|
13033B
MB313732 O-RING, EXHAUST PIPE34 |
MB313732 |
US $3.55 |
||
|
13033C
|
13033C
MB059522 O-RING, EXHAUST PIPE34 |
MB059522 |
US $14.21 |
||
|
13086
|
13086
MB059524
BRACKET, EXHAUST PIPE
|
MB059524 |
— | ||
| replacement | |||||
|
13086
|
13086
MB514746 BRACKET, EXHAUST PIPE |
MB514746 |
US $3.83 |
||
|
13086
|
13086
MB514746 BRACKET, EXHAUST PIPE |
MB514746 |
US $3.83 |
||
|
13087B
|
13087B
MB059526 WASHER, EXHAUST PIPE |
MB059526 |
US $3.55 |
||
|
13087B
|
13087B
MB514750
WASHER,EXHAUST PIPE
|
MB514750 |
— | ||
|
13087C
|
13087C
MB111792 WASHER, EXHAUST PIPE9 |
MB111792 |
US $2.66 |
||
|
13087C
|
13087C
MB514692 WASHER, EXHAUST PIPE9 |
MB514692 |
US $5.77 |
||
|
13087D
|
13087D
MF450005 WASHER, FLYWHEEL HOUSINGPlain,8 |
MF450005 |
from US $1.01 |
||
|
13096B
|
13096B
MB059333 NUT, EXHAUST PIPESelf locking,10 |
MB059333 |
from US $2.11 |
||
|
13096B
|
13096B
MB059359 NUT, CATALYTIC CONVERTERSelf locking,6t,12 |
MB059359 |
from US $2.07 |
||
|
13096C
|
13096C
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
13099B
|
13099B
MF244884 BOLT, ENG RR MOUNTINGWasher assembled,10x35 |
MF244884 |
from US $1.37 |
||
|
13099D
|
13099D
MF240050 BOLT, ROCKER COVERWasher assembled,8x14 |
MF240050 |
from US $1.07 |
||
|
13099E
|
13099E
MF240055 BOLT, CYLINDER HEADWasher assembled,8x25 |
MF240055 |
from US $1.23 |
||
|
13099G
|
13099G
MF243659
BOLT, INTER COOLER
|
MF243659 |
— | ||
| replacement | |||||
|
13099G
|
13099G
MF244859 BOLT, A/C COMPRESSORWasher assembled,8x40 |
MF244859 |
from US $1.44 |
||
|
13099J
|
13099J
MF241309 BOLT, ENG MOUNTINGWasher assembled,12x30 |
MF241309 |
from US $1.50 |
||
|
13100
|
13100
MB313857
PIPE,EXHAUST,FR
|
MB313857 |
— | ||
|
13100
|
13100
MB313858
PIPE,EXHAUST,FR
|
MB313858 |
— | ||
|
13100
|
13100
MB514620 PIPE, EXHAUST, FR |
MB514620 |
US $700.34 |
||
|
13100
|
13100
MB577272
PIPE,EXHAUST,FR
|
MB577272 |
— | ||
|
13513D
|
13513D
MB179666
BRACKET,EXHAUST PIPE HANGER
|
MB179666 |
— | ||
|
13524B
|
13524B
MB156319
HANGER, EXHAUST MUFFLER
|
MB156319 |
— | ||
| replacement | |||||
|
13524B
|
13524B
MB548658 HANGER, EXHAUST MUFFLER |
MB548658 |
US $9.03 |
||
|
13524B
|
13524B
MB252404 HANGER, EXHAUST MUFFLER |
MB252404 |
US $6.66 |
||
|
13524B
|
13524B
MB548658 HANGER, EXHAUST MUFFLER |
MB548658 |
US $9.03 |
||
|
13524C
|
13524C
MB059936
HANGER, EXHAUST MUFFLER
|
MB059936 |
— | ||
| replacement | |||||
|
13524C
|
13524C
MB906124 HANGER, EXHAUST MUFFLER |
MB906124 |
from US $9.36 |
||
|
13524E
|
13524E
MB179464 HANGER, EXHAUST MUFFLER |
MB179464 |
US $7.55 |
||
|
13534
|
13534
MB313835 HOOK, EXHAUST MUFFLER HANGER O-RING |
MB313835 |
US $11.84 |
||
|
13534
|
13534
MB514749
HOOK,EXHAUST MUFFLER HANGER O-RING
|
MB514749 |
— | ||
|
13542
|
13542
MB252561
MUFFLER,EXHAUST MAIN
|
MB252561 |
— | ||
|
13542
|
13542
MB548559 MUFFLER,EXHAUST MAIN |
MB548559 |
US $426.61 |
||
|
13542
|
13542
MB577289
MUFFLER,EXHAUST MAIN
|
MB577289 |
— | ||
|
13547
|
13547
MB179930 SEAT, EXHAUST MUFFLER HANGER |
MB179930 |
US $5.33 |
||
|
13547
|
13547
MB651931 SEAT, EXHAUST MUFFLER HANGER |
MB651931 |
from US $2.52 |
||
|
13565
|
13565
MB059523
STOPPER, EXHAUST MUFFLER HANGER BRACKET
|
MB059523 |
— | ||
| replacement | |||||
|
13565
|
13565
MB111791 STOPPER, EXHAUST MUFFLER HANGER BRACKET |
MB111791 |
US $3.28 |
||
