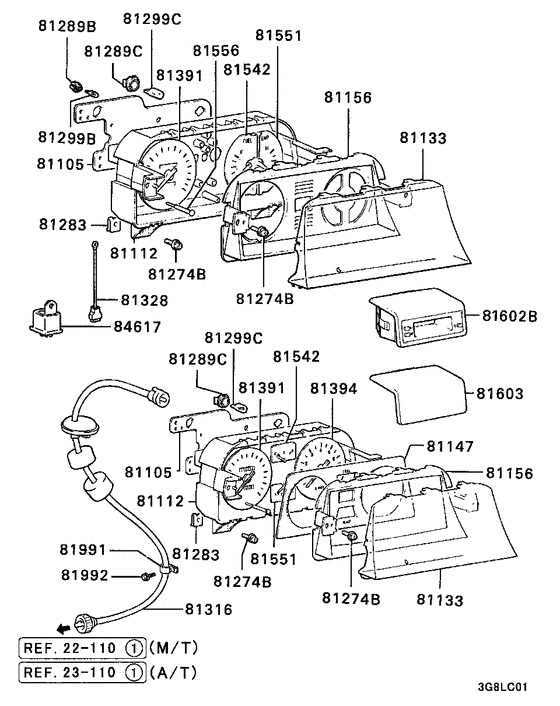

Meter,gauge & clock Diagram Mitsubishi SPACE WAGON
- Year
- 1983 - 1984
- Sales region
- PUERTO RICO&GUAM
- Note
- MEDIUM LINE,5FM/T DOD-FED
- drive
- 2WD
- transmission
- 5FM/T
- grade
- MEDIUM LINE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81105
|
81105
MB280602
BOARD,INSTRUMENT PANEL PRINTED CIRCUIT
|
MB280602 |
— | ||
|
81112
|
81112
MB280479
CASE,COMBINATION METER
|
MB280479 |
— | ||
|
81133
|
81133
MB135287
GLASS,COMBINATION METER
|
MB135287 |
— | ||
|
81156
|
81156
MB186431
PLATE,COMBINATION METER WINDOW
|
MB186431 |
— | ||
|
81274B
|
81274B
MF453033 SCREW, TAPPING, 5x16Tapping,5x16 |
MF453033 |
from US $1.66 |
||
|
81283
|
81283
MB135995 NUT, FUEL FILLER LID LOCKINGSpring,5 |
MB135995 |
from US $1.46 |
||
|
81289C
|
81289C
MF825001 SOCKET, INSTRUMENT PANEL METER |
MF825001 |
US $5.62 |
||
|
81299C
|
81299C
MF820572 BULB, GLOVEBOX |
MF820572 |
US $1.50 |
||
| replacement | |||||
|
81299C
|
81299C
MB439505
BULB, HEATER CONTROL EQUIP
|
MB439505 |
— | ||
|
81316
|
81316
MB286148
CABLE,SPEEDOMETER
|
MB286148 |
— | ||
|
81328
|
81328
MB522214 CABLE, SPEEDOMETER REED SWITCH |
MB522214 |
US $12.28 |
||
|
81391
|
81391
MB280589
Speedometer
|
MB280589 |
— | ||
|
81542
|
81542
MB281984 GAUGE,FUEL |
MB281984 |
US $59.20 |
||
|
81551
|
81551
MB281985 GAUGE, WATER TEMPERATURE |
MB281985 |
US $56.24 |
||
|
81603
|
81603
MB217774 COVER, CLOCK HOLE |
MB217774 |
US $10.66 |
||
|
81603
|
81603
MB217775
COVER,CLOCK HOLE
|
MB217775 |
— | ||
|
81991
|
81991
MF477023 CLIP, ENG RR MOUNTINGD=8 |
MF477023 |
US $1.78 |
||
|
81992
|
81992
MB249413
BOLT, FUEL LINE
|
MB249413 |
— | ||
| replacement | |||||
|
81992
|
81992
MB330946 BOLT, FUEL LINEWasher assembled,6x20 |
MB330946 |
US $1.92 |
||
|
84617
|
84617
MB037710 BUZZER, ELECTRIC |
MB037710 |
US $15.05 |
||
|
22 110
|
M/t case
22 110
|
||||
|
22 110
|
M/t case
22 110
|
||||
|
22 110
|
M/t case
22 110
|
||||
