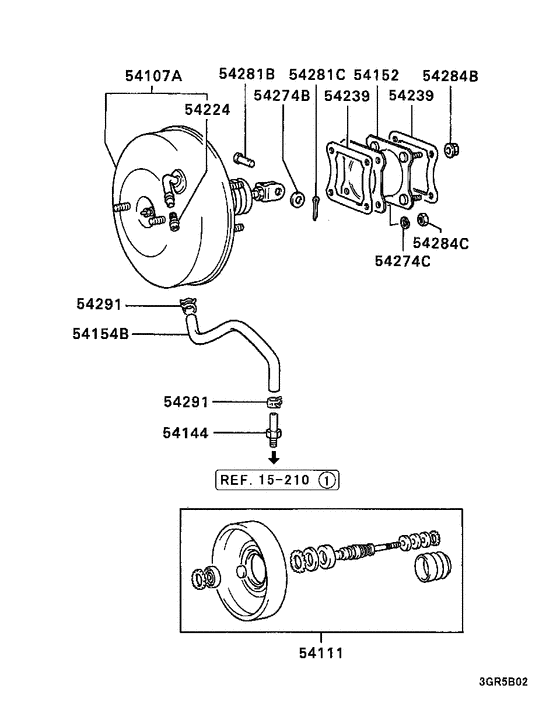

Power brake booster Diagram Mitsubishi SPACE WAGON
- Year
- 1983 - 1984
- Sales region
- PUERTO RICO&GUAM
- Note
- MEDIUM LINE,5FM/T DOD-FED
- drive
- 2WD
- transmission
- 5FM/T
- grade
- MEDIUM LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
54107A
|
54107A
MB238092 BOOSTER ASSY, BRAKE |
MB238092 |
US $368.37 |
||
|
54107A
|
54107A
MB500910 BOOSTER ASSY, BRAKE |
MB500910 |
US $368.37 |
||
|
54107A
|
54107A
MB618710 BOOSTER ASSY, BRAKE |
MB618710 |
US $426.61 |
||
|
54111
|
54111
MB277030
BOOSTER KIT, BRAKE
|
MB277030 |
— | ||
|
54111
|
54111
MB500952
BOOSTER KIT, BRAKE
|
MB500952 |
— | ||
|
54144
|
54144
MA140192
FITTING, BRAKE BOOSTER VACUUM HOSE
|
MA140192 |
— | ||
| replacement | |||||
|
54144
|
54144
MR493617 FITTING, INLET MANIFOLD VACUUM HOSE |
MR493617 |
US $5.06 |
||
|
54152
|
54152
MB277322 HOLDER, BRAKE BOOSTER |
MB277322 |
US $27.38 |
||
|
54154B
|
54154B
MB277832
HOSE,BRAKE BOOSTER VACUUM
|
MB277832 |
— | ||
|
54154B
|
54154B
MB500919 HOSE, BRAKE BOOSTER VACUUMRubber |
MB500919 |
US $36.26 |
||
|
54154B
|
54154B
MB668228 HOSE, BRAKE BOOSTER VACUUMRubber |
MB668228 |
US $55.50 |
||
|
54224
|
54224
MB277029
CHECK VALVE, BRAKE BOOSTER VACUUM
|
MB277029 |
— | ||
|
54239
|
54239
MB238089
SEAL, BRAKE BOOSTER BODY
|
MB238089 |
— | ||
| replacement | |||||
|
54239
|
54239
MB928711 SEAL, BRAKE BOOSTER BODY |
MB928711 |
from US $3.30 |
||
|
54274B
|
54274B
MB151106 WASHER, CLUTCH M/CYL10 |
MB151106 |
US $2.74 |
||
|
54274C
|
54274C
MF450405 WASHER, CYLINDER HEADSpring,8 |
MF450405 |
from US $0.43 |
||
|
54281B
|
54281B
MF473000 PIN, CLUTCH PEDALClevis,10x23 |
MF473000 |
US $2.07 |
||
|
54281B
|
54281B
MF473492 PIN, CLUTCH M/CYLClevis,10x23 |
MF473492 |
from US $2.67 |
||
|
54281C
|
54281C
MF472042 PIN, CLUTCH PEDALSplit,2x30 |
MF472042 |
US $0.96 |
||
|
54284B
|
54284B
MB133765 NUT, ENG FR MOUNTINGWasher assembled,8 |
MB133765 |
US $1.92 |
||
|
54284B
|
54284B
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
54284C
|
54284C
MF430005 NUT, ROCKER COVER8 |
MF430005 |
from US $1.01 |
||
|
54291
|
54291
MB058828 CLIP, BRAKE BOOSTER16 |
MB058828 |
from US $1.07 |
||
|
15 210
|
Inlet manifold
15 210
|
||||
|
15 210
|
Inlet manifold
15 210
|
||||
