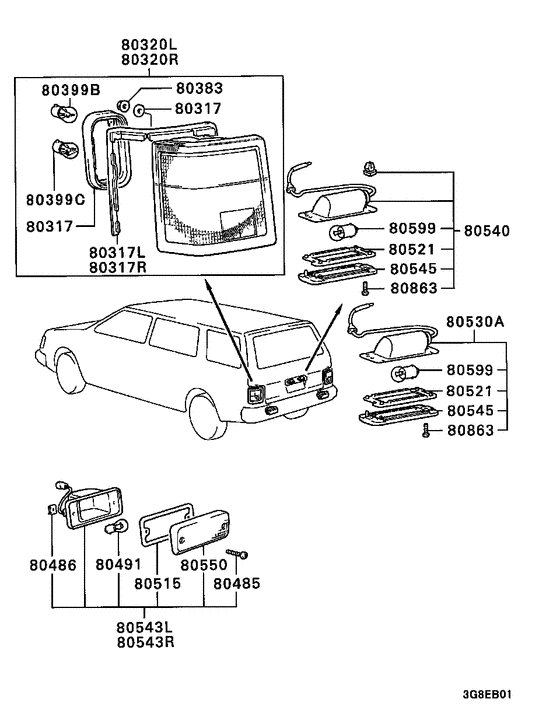

Rear exterior lamp (TAIL LAMP,BACKUP LAMP & LICENSE LAMP) Diagram Mitsubishi SPACE WAGON
- Year
- 1983 - 1984
- Sales region
- PUERTO RICO&GUAM
- Note
- MEDIUM LINE,5FM/T DOD-FED
- drive
- 2WD
- transmission
- 5FM/T
- grade
- MEDIUM LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
80317
|
80317
MB338006 GASKET, RR COMBINATION LAMP |
MB338006 |
US $4.88 |
||
|
80317
|
80317
MB338009 GASKET, RR COMBINATION LAMP |
MB338009 |
US $1.92 |
||
|
80317L
|
80317L
MB338007 GASKET, RR COMBINATION LAMP, LH |
MB338007 |
US $19.98 |
||
|
80317R
|
80317R
MB338008 GASKET, RR COMBINATION LAMP, RH |
MB338008 |
US $19.98 |
||
|
80320L
|
80320L
MB283845
LAMP KIT,COMBINATION,RR LH
|
MB283845 |
— | ||
|
80320L
|
80320L
MB527802
LAMP KIT,COMBINATION,RR LH
|
MB527802 |
— | ||
|
80320R
|
80320R
MB283846
LAMP KIT,COMBINATION,RR RH
|
MB283846 |
— | ||
|
80320R
|
80320R
MB527803
LAMP KIT,COMBINATION,RR RH
|
MB527803 |
— | ||
|
80383
|
80383
MB133764
NUT, FUEL LINE
|
MB133764 |
— | ||
| replacement | |||||
|
80383
|
80383
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
80383
|
80383
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
80399B
|
80399B
MS820043 BULB, FR TURN SIGNAL LAMP12v-27w |
MS820043 |
US $5.77 |
||
|
80399C
|
80399C
MS820035 BULB, FR TURN SIGNAL LAMP12v-27/8w |
MS820035 |
US $16.28 |
||
|
80485
|
80485
MB305656 SCREW, BACKUP LAMPTapping,5x25 |
MB305656 |
US $3.70 |
||
|
80486
|
80486
MB543902 NUT, RR BUMPERSpring,4 |
MB543902 |
US $4.59 |
||
|
80491
|
80491
MS820043 BULB, FR TURN SIGNAL LAMP12v-27w |
MS820043 |
US $5.77 |
||
|
80515
|
80515
MB305872 GASKET, BACKUP LAMP |
MB305872 |
US $4.14 |
||
|
80515
|
80515
MB605641 GASKET, BACKUP LAMP |
MB605641 |
US $4.88 |
||
|
80521
|
80521
MB031496 GASKET, LICENSE PLATE LAMP LENS |
MB031496 |
US $6.70 |
||
|
80530A
|
80530A
MB114927 LAMP ASSY, LICENSE PLATE12v-10w |
MB114927 |
US $38.48 |
||
|
80530A
|
80530A
MB529990 LAMP ASSY, LICENSE PLATE12v-10w |
MB529990 |
US $49.58 |
||
|
80540
|
80540
MB527807 LAMP KIT, LICENSE PLATE12v-10w |
MB527807 |
US $53.28 |
||
|
80543L
|
80543L
MB283595
LAMP KIT,BACKUP,LH
|
MB283595 |
— | ||
|
80543R
|
80543R
MB283596
LAMP KIT,BACKUP,RH
|
MB283596 |
— | ||
|
80545
|
80545
MB070870 LENS, LICENSE PLATE LAMP |
MB070870 |
from US $5.25 |
||
|
80550
|
80550
MB415984 LENS, BACKUP LAMP |
MB415984 |
US $14.21 |
||
|
80599
|
80599
MF820183 BULB, FR TURN SIGNAL LAMP12v-10w |
MF820183 |
US $2.66 |
||
|
80863
|
80863
MB070412 SCREW, RR END EXTERIOR LAMP4x12 |
MB070412 |
US $2.66 |
||
