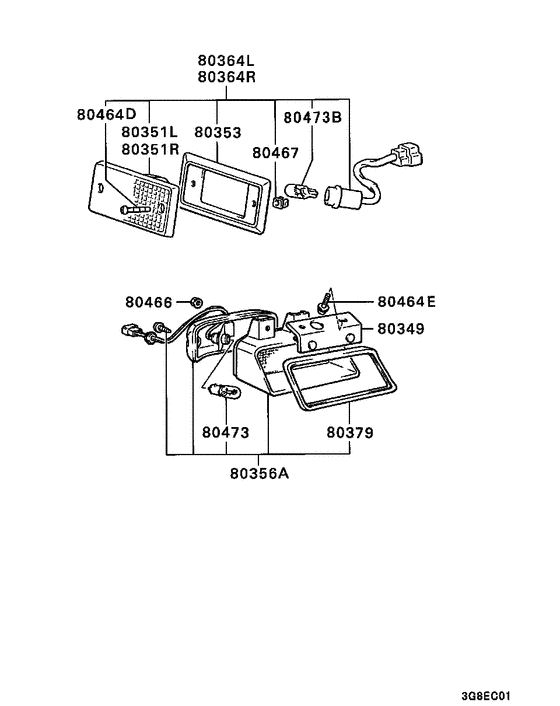

Rear exterior lamp (SIDE TURN SIGNAL LAMP,REAR ETC.) Diagram Mitsubishi SPACE WAGON
- Year
- 1983 - 1984
- Sales region
- PUERTO RICO&GUAM
- Note
- MEDIUM LINE,5FM/T DOD-FED
- drive
- 2WD
- transmission
- 5FM/T
- grade
- MEDIUM LINE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
80349
|
80349
MB435279
BRACKET,HIGH MOUNTED STOP LAMP
|
MB435279 |
— | ||
|
80351L
|
80351L
MB196651
LAMP UNIT,SIDE MARKER,RR LH
|
MB196651 |
— | ||
|
80351R
|
80351R
MB196652
LAMP UNIT,SIDE MARKER,RR RH
|
MB196652 |
— | ||
|
80353
|
80353
MB196650
GASKET,RR SIDE MARKER LAMP
|
MB196650 |
— | ||
|
80356A
|
80356A
MB435221
LAMP ASSY,HIGH MOUNTED STOP
|
MB435221 |
— | ||
|
80364L
|
80364L
MB185839
LAMP KIT,SIDE MARKER,RR LH
|
MB185839 |
— | ||
|
80364R
|
80364R
MB185840
LAMP KIT,SIDE MARKER,RR RH
|
MB185840 |
— | ||
|
80379
|
80379
MB530462
GASKET,HIGH MOUNTED STOP LAMP
|
MB530462 |
— | ||
|
80464D
|
80464D
MB070414 SCREW,RR LAMP |
MB070414 |
US $4.29 |
||
|
80464E
|
80464E
MF351008 SCREW, FUEL TANKWasher assembled,5x12 |
MF351008 |
from US $0.98 |
||
|
80466
|
80466
MS440531 NUT, RR LAMPWasher assembled,5 |
MS440531 |
US $0.59 |
||
|
80467
|
80467
MB023930 GROMMET, RR END PANEL GARNISHScrew,4 |
MB023930 |
US $3.69 |
||
|
80473
|
80473
MS820079 BULB, STOP LAMP12v-18w |
MS820079 |
US $9.52 |
||
| replacement | |||||
|
80473
|
80473
MS820023 BULB,RR LAMP |
MS820023 |
from US $4.51 |
||
|
80473B
|
80473B
MS820085
BULB, GEARSHIFT LINK
|
MS820085 |
— | ||
