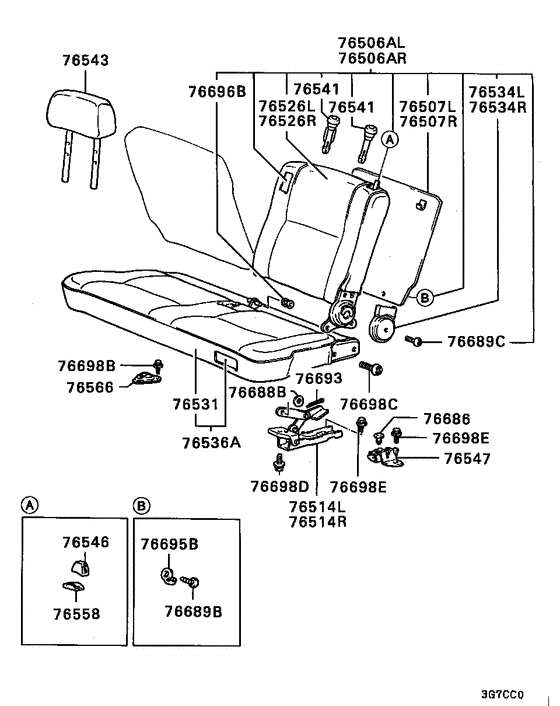

Third seat (-'86MODEL) Diagram Mitsubishi SPACE WAGON
- Year
- 1983 - 1984
- Sales region
- PUERTO RICO&GUAM
- Note
- MEDIUM LINE,5FM/T DOD-FED
- drive
- 2WD
- transmission
- 5FM/T
- grade
- MEDIUM LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
76506AL
|
76506AL
MB440644
BACK ASSY,3RD SEAT,LH
|
MB440644 |
— | ||
|
76506AL
|
76506AL
MB440645
BACK ASSY,3RD SEAT,LH
|
MB440645 |
— | ||
|
76506AR
|
76506AR
MB440646
BACK ASSY,3RD SEAT,RH
|
MB440646 |
— | ||
|
76506AR
|
76506AR
MB440647
BACK ASSY,3RD SEAT,RH
|
MB440647 |
— | ||
|
76507L
|
76507L
MB440648 BOARD, 3RD SEAT BACK, LH |
MB440648 |
US $68.82 |
||
|
76507L
|
76507L
MB440650 BOARD, 3RD SEAT BACK, LH |
MB440650 |
US $68.82 |
||
|
76507L
|
76507L
MB457603 BOARD, 3RD SEAT BACK, LH |
MB457603 |
US $91.76 |
||
|
76507L
|
76507L
MB492414
BOARD,3RD SEAT BACK,LH
|
MB492414 |
— | ||
|
76507L
|
76507L
MB492415
BOARD,3RD SEAT BACK,LH
|
MB492415 |
— | ||
|
76507L
|
76507L
MB492416
BOARD,3RD SEAT BACK,LH
|
MB492416 |
— | ||
|
76507L
|
76507L
MB706580
BOARD,3RD SEAT BACK,LH
|
MB706580 |
— | ||
|
76507L
|
76507L
MB706581
BOARD,3RD SEAT BACK,LH
|
MB706581 |
— | ||
|
76507L
|
76507L
MB706582
BOARD,3RD SEAT BACK,LH
|
MB706582 |
— | ||
|
76507L
|
76507L
MB722234
BOARD,3RD SEAT BACK,LH
|
MB722234 |
— | ||
|
76507L
|
76507L
MB761856
BOARD,3RD SEAT BACK,LH
|
MB761856 |
— | ||
|
76507R
|
76507R
MB440652 BOARD, 3RD SEAT BACK, RH |
MB440652 |
US $91.76 |
||
|
76507R
|
76507R
MB440654 BOARD, 3RD SEAT BACK, RH |
MB440654 |
US $91.76 |
||
|
76507R
|
76507R
MB457604 BOARD, 3RD SEAT BACK, RH |
MB457604 |
US $91.76 |
||
|
76507R
|
76507R
MB492417
BOARD,3RD SEAT BACK,RH
|
MB492417 |
— | ||
|
76507R
|
76507R
MB492418
BOARD,3RD SEAT BACK,RH
|
MB492418 |
— | ||
|
76507R
|
76507R
MB492419
BOARD,3RD SEAT BACK,RH
|
MB492419 |
— | ||
|
76507R
|
76507R
MB706583
BOARD,3RD SEAT BACK,LH
|
MB706583 |
— | ||
|
76507R
|
76507R
MB706584
BOARD,3RD SEAT BACK,LH
|
MB706584 |
— | ||
|
76507R
|
76507R
MB706585
BOARD,3RD SEAT BACK,LH
|
MB706585 |
— | ||
|
76507R
|
76507R
MB722235
BOARD,3RD SEAT BACK,LH
|
MB722235 |
— | ||
|
76507R
|
76507R
MB761857
BOARD,3RD SEAT BACK,RH
|
MB761857 |
— | ||
|
76514L
|
76514L
MB342818 BRACKET, 3RD SEAT HINGE, LH |
MB342818 |
US $58.46 |
||
|
76514L
|
76514L
MB342819 BRACKET, 3RD SEAT HINGE, LH |
MB342819 |
US $58.46 |
||
|
76514L
|
76514L
MB457721 BRACKET, 3RD SEAT HINGE, LH |
MB457721 |
US $58.46 |
||
|
76514L
|
76514L
MB492503
BRACKET,3RD SEAT HINGE,LH
|
MB492503 |
— | ||
|
76514L
|
76514L
MB492504 BRACKET, 3RD SEAT HINGE, LH |
MB492504 |
US $14.36 |
||
|
76514L
|
76514L
MB492505 BRACKET, 3RD SEAT HINGE, LH |
MB492505 |
US $14.36 |
||
|
76514L
|
76514L
MB712911
BRACKET,3RD SEAT HINGE,LH
|
MB712911 |
— | ||
|
76514L
|
76514L
MB712912 BRACKET, 3RD SEAT HINGE, LH |
MB712912 |
US $126.54 |
||
|
76514L
|
76514L
MB712913 BRACKET, 3RD SEAT HINGE, LH |
MB712913 |
US $126.54 |
||
|
76514L
|
76514L
MB722240
BRACKET,3RD SEAT HINGE,LH
|
MB722240 |
— | ||
|
76514L
|
76514L
MB756815
BRACKET,3RD SEAT HINGE,LH
|
MB756815 |
— | ||
|
76514R
|
76514R
MB342820 BRACKET, 3RD SEAT HINGE, RH |
MB342820 |
US $68.08 |
||
|
76514R
|
76514R
MB342821 BRACKET, 3RD SEAT HINGE, RH |
MB342821 |
US $68.08 |
||
|
76514R
|
76514R
MB457722 BRACKET, 3RD SEAT HINGE, RH |
MB457722 |
US $68.08 |
||
|
76514R
|
76514R
MB492506
BRACKET,3RD SEAT HINGE,RH
|
MB492506 |
— | ||
|
76514R
|
76514R
MB492507 BRACKET, 3RD SEAT HINGE, RH |
MB492507 |
US $14.36 |
||
|
76514R
|
76514R
MB492508 BRACKET, 3RD SEAT HINGE, RH |
MB492508 |
US $14.36 |
||
|
76514R
|
76514R
MB712914
BRACKET,3RD SEAT HINGE,RH
|
MB712914 |
— | ||
|
76514R
|
76514R
MB712915 BRACKET, 3RD SEAT HINGE, RH |
MB712915 |
US $126.54 |
||
|
76514R
|
76514R
MB712916 BRACKET, 3RD SEAT HINGE, RH |
MB712916 |
US $126.54 |
||
|
76514R
|
76514R
MB722241
BRACKET,3RD SEAT HINGE,RH
|
MB722241 |
— | ||
|
76514R
|
76514R
MB756817
BRACKET,3RD SEAT HINGE,RH
|
MB756817 |
— | ||
|
76526L
|
76526L
MB440770
COVER,3RD SEAT BACK,LH
|
MB440770 |
— | ||
|
76526L
|
76526L
MB440771
COVER,3RD SEAT BACK,LH
|
MB440771 |
— | ||
|
76526R
|
76526R
MB440772
COVER,3RD SEAT BACK,RH
|
MB440772 |
— | ||
|
76526R
|
76526R
MB440773
COVER,3RD SEAT BACK,RH
|
MB440773 |
— | ||
|
76531
|
76531
MB440746
COVER,3RD SEAT CUSHION
|
MB440746 |
— | ||
|
76531
|
76531
MB440747
COVER,3RD SEAT CUSHION
|
MB440747 |
— | ||
|
76534L
|
76534L
MB342195 COVER, 3RD SEAT RECLINING ADJUSTER, LH |
MB342195 |
US $6.81 |
||
|
76534L
|
76534L
MB342196 COVER, 3RD SEAT RECLINING ADJUSTER, LH |
MB342196 |
US $8.73 |
||
|
76534L
|
76534L
MB457511 COVER, 3RD SEAT RECLINING ADJUSTER, LH |
MB457511 |
US $6.96 |
||
|
76534L
|
76534L
MB492327
COVER,3RD SEAT RECLINING ADJUSTER,LH
|
MB492327 |
— | ||
|
76534L
|
76534L
MB492328 COVER, 3RD SEAT RECLINING ADJUSTER, LH |
MB492328 |
US $9.32 |
||
|
76534L
|
76534L
MB492329 COVER, 3RD SEAT RECLINING ADJUSTER, LH |
MB492329 |
US $9.32 |
||
|
76534L
|
76534L
MB717553 COVER, 3RD SEAT RECLINING ADJUSTER, LH |
MB717553 |
US $7.55 |
||
|
76534L
|
76534L
MB741726 COVER, 3RD SEAT RECLINING ADJUSTER, LH |
MB741726 |
US $9.32 |
||
|
76534R
|
76534R
MB342197 COVER, 3RD SEAT RECLINING ADJUSTER, RH |
MB342197 |
US $6.81 |
||
|
76534R
|
76534R
MB342198 COVER, 3RD SEAT RECLINING ADJUSTER, RH |
MB342198 |
US $6.81 |
||
|
76534R
|
76534R
MB457512 COVER, 3RD SEAT RECLINING ADJUSTER, RH |
MB457512 |
US $6.96 |
||
|
76534R
|
76534R
MB492330
COVER,3RD SEAT RECLINING ADJUSTER,RH
|
MB492330 |
— | ||
|
76534R
|
76534R
MB492331 COVER, 3RD SEAT RECLINING ADJUSTER, RH |
MB492331 |
US $9.32 |
||
|
76534R
|
76534R
MB492332 COVER, 3RD SEAT RECLINING ADJUSTER, RH |
MB492332 |
US $7.55 |
||
|
76534R
|
76534R
MB717554 COVER, 3RD SEAT RECLINING ADJUSTER, RH |
MB717554 |
US $7.55 |
||
|
76534R
|
76534R
MB741727 COVER, 3RD SEAT RECLINING ADJUSTER, RH |
MB741727 |
US $9.32 |
||
|
76536A
|
76536A
MB440616
CUSHION ASSY,3RD SEAT
|
MB440616 |
— | ||
|
76536A
|
76536A
MB440617
CUSHION ASSY,3RD SEAT
|
MB440617 |
— | ||
|
76541
|
76541
MB372612 GUIDE, FR SEAT HEADRESTW/o lock |
MB372612 |
US $11.40 |
||
|
76541
|
76541
MB372613 GUIDE, FR SEAT HEADRESTW/o lock |
MB372613 |
US $11.40 |
||
|
76541
|
76541
MB372614 GUIDE, FR SEAT HEADRESTW/lock |
MB372614 |
US $11.40 |
||
|
76541
|
76541
MB372615 GUIDE, FR SEAT HEADRESTW/lock |
MB372615 |
US $11.40 |
||
|
76541
|
76541
MB372861 GUIDE, FR SEAT HEADRESTW/o lock |
MB372861 |
US $10.21 |
||
|
76541
|
76541
MB372862 GUIDE, FR SEAT HEADRESTW/lock |
MB372862 |
US $10.21 |
||
|
76541
|
76541
MB469983 GUIDE, FR SEAT HEADRESTW/o lock |
MB469983 |
US $10.21 |
||
|
76541
|
76541
MB469984 GUIDE, FR SEAT HEADRESTW/lock |
MB469984 |
US $10.21 |
||
|
76541
|
76541
MB492422 GUIDE,FR SEAT HEADREST |
MB492422 |
US $11.40 |
||
|
76541
|
76541
MB492423
GUIDE,FR SEAT HEADREST
|
MB492423 |
— | ||
|
76541
|
76541
MB722217 GUIDE, FR SEAT HEADRESTW/o lock |
MB722217 |
US $10.80 |
||
|
76541
|
76541
MB722218 GUIDE, FR SEAT HEADRESTW/lock |
MB722218 |
US $10.80 |
||
|
76541
|
76541
MB735785 GUIDE, FR SEAT HEADRESTW/o lock |
MB735785 |
US $11.84 |
||
|
76541
|
76541
MB735787 GUIDE, FR SEAT HEADRESTW/lock |
MB735787 |
US $11.84 |
||
|
76546
|
76546
MB355242 KNOB, RR SEAT FOLDING |
MB355242 |
US $11.69 |
||
|
76546
|
76546
MB355243 KNOB, RR SEAT FOLDING |
MB355243 |
US $11.69 |
||
|
76546
|
76546
MB453358 KNOB, RR SEAT FOLDING |
MB453358 |
US $11.69 |
||
|
76546
|
76546
MB457754 KNOB, RR SEAT FOLDING |
MB457754 |
US $11.69 |
||
|
76546
|
76546
MB492578 KNOB,RR SEAT FOLDING |
MB492578 |
US $12.43 |
||
|
76546
|
76546
MB492580 KNOB, RR SEAT FOLDING |
MB492580 |
US $10.80 |
||
|
76546
|
76546
MB722214 KNOB, RR SEAT FOLDING |
MB722214 |
US $11.69 |
||
|
76546
|
76546
MB742644 KNOB, RR SEAT FOLDING |
MB742644 |
US $13.32 |
||
|
76547
|
76547
MB300916 LATCH, 3RD SEAT |
MB300916 |
US $48.84 |
||
|
76558
|
76558
MB355240 GARNISH, 3RD SEAT FOLDING KNOB |
MB355240 |
US $6.07 |
||
|
76558
|
76558
MB355241 GARNISH, 3RD SEAT FOLDING KNOB |
MB355241 |
US $5.48 |
||
|
76558
|
76558
MB389440 GARNISH, 3RD SEAT FOLDING KNOB |
MB389440 |
US $5.48 |
||
|
76558
|
76558
MB410451 GARNISH, 3RD SEAT FOLDING KNOB |
MB410451 |
US $6.07 |
||
|
76558
|
76558
MB492576 GARNISH,3RD SEAT FOLDING KNOB |
MB492576 |
US $6.66 |
||
|
76558
|
76558
MB492577 GARNISH, 3RD SEAT FOLDING KNOB |
MB492577 |
US $4.44 |
||
|
76558
|
76558
MB722205 GARNISH, 3RD SEAT FOLDING KNOB |
MB722205 |
US $5.92 |
||
|
76558
|
76558
MB742628 GARNISH, 3RD SEAT FOLDING KNOB |
MB742628 |
US $5.92 |
||
|
76566
|
76566
MB300574 PLATE, 3RD SEAT ANCHOR |
MB300574 |
US $28.86 |
||
|
76686
|
76686
MU670014 PLUG, 3RD SEATNylon |
MU670014 |
US $3.85 |
||
|
76688B
|
76688B
MF450006 WASHER, CYLINDER HEADPlain,10 |
MF450006 |
from US $1.01 |
||
|
76689B
|
76689B
MF453737 SCREW, FR SEATTapping,4x25 |
MF453737 |
US $1.92 |
||
|
76689C
|
76689C
MF200333 SCREW, FR SEATMachine,6x8 |
MF200333 |
US $2.22 |
||
|
76693
|
76693
MF472305 PIN, ACCEL CONTROL EQUIPSnap,10x32.6 |
MF472305 |
from US $1.05 |
||
|
76695B
|
76695B
MB299314 CAP, FR DOOR TRIM SCREW |
MB299314 |
US $3.11 |
||
|
76695B
|
76695B
MB371750 CAP, FR DOOR TRIM SCREW |
MB371750 |
US $2.81 |
||
|
76695B
|
76695B
MB371751 CAP,FR DOOR TRIM SCREW |
MB371751 |
US $2.81 |
||
|
76695B
|
76695B
MB411154 CAP, FR DOOR TRIM SCREW |
MB411154 |
US $1.92 |
||
|
76695B
|
76695B
MB450993 CAP, FR DOOR TRIM SCREW |
MB450993 |
US $3.11 |
||
|
76695B
|
76695B
MB450995 CAP, FR DOOR TRIM SCREW |
MB450995 |
US $3.11 |
||
|
76695B
|
76695B
MB722219
CAP,FR DOOR TRIM SCREW
|
MB722219 |
— | ||
|
76695B
|
76695B
MB727414
CAP,FR DOOR TRIM SCREW
|
MB727414 |
— | ||
|
76696B
|
76696B
MB341450 BUSHING, 3RD SEAT |
MB341450 |
US $2.33 |
||
|
76698B
|
76698B
MF244880 BOLT, ENG RR MOUNTINGWasher assembled,10x25 |
MF244880 |
from US $1.50 |
||
|
76698C
|
76698C
MB342190 BOLT, 3RD SEAT10x27.5 |
MB342190 |
US $4.74 |
||
|
76698D
|
76698D
MB190985 BOLT, FR SEAT8x20 |
MB190985 |
US $2.81 |
||
|
76698D
|
76698D
MF241253 BOLT, CRANKCASEWasher assembled,8x20 |
MF241253 |
from US $0.82 |
||
|
76698D
|
76698D
MF244851 BOLT, WATER HEATERWasher assembled,8x20 |
MF244851 |
from US $1.19 |
||
|
76698E
|
76698E
MS240189 BOLT, BRAKE PEDALWasher assembled,10x25 |
MS240189 |
US $3.28 |
