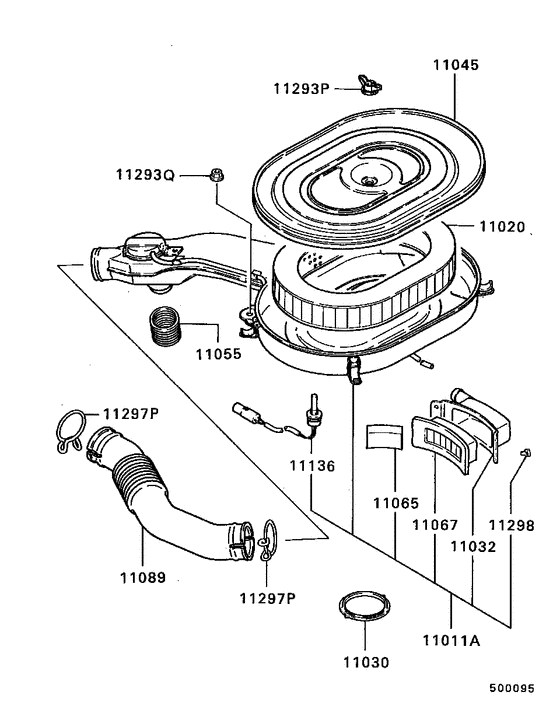

Air cleaner (CARBURETOR) Diagram Mitsubishi SPACE WAGON
- Year
- 1986 - 1988
- Sales region
- EUR
- Note
- GLX(ANTI-POLL),5FM/T LHD
- drive
- 2WD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011A
|
11011A
MD148733 BODY ASSY, AIR CLEANER |
MD148733 |
US $623.17 |
||
|
11011A
|
11011A
MD604548
BODY ASSY,AIR CLEANER
|
MD604548 |
— | ||
|
11020
|
11020
MD603932
ELEMENT, AIR CLEANER
|
MD603932 |
— | ||
| replacement | |||||
|
11020
|
11020
MR571477 ELEMENT, AIR CLEANER |
MR571477 |
US $73.19 |
||
|
11020
|
11020
MD604952 ELEMENT, AIR CLEANER |
MD604952 |
US $53.28 |
||
|
11030
|
11030
MD025181 GASKET, AIR CLEANER TO CARB |
MD025181 |
US $9.44 |
||
|
11032
|
11032
MD604549
CASE,AIR CLEANER SECONDARY AIR FILTER
|
MD604549 |
— | ||
|
11045
|
11045
MD604951 COVER, AIR CLEANER |
MD604951 |
US $29.60 |
||
|
11045
|
11045
MD620415
COVER,AIR CLEANER
|
MD620415 |
— | ||
|
11055
|
11055
MD041420 HEAT DUCT, AIR CLEANER42x55 |
MD041420 |
US $10.80 |
||
|
11065
|
11065
MD603131 FILTER, AIR CLEANER CRANKCASE VENTILATION |
MD603131 |
US $3.11 |
||
|
11067
|
11067
MD604953 FILTER, AIR CLEANER SECONDARY |
MD604953 |
US $14.50 |
||
|
11089
|
11089
MD066906 DUCT, AIR CLEANER INTAKE |
MD066906 |
US $23.68 |
||
|
11089
|
11089
MD132286 DUCT, AIR CLEANER INTAKE |
MD132286 |
US $46.62 |
||
|
11136
|
11136
MD071065
SENSOR,AIR CLEANER AIR TEMPERATURE
|
MD071065 |
— | ||
|
11293P
|
11293P
MD031789
NUT, AIR CLEANER
|
MD031789 |
— | ||
| replacement | |||||
|
11293P
|
11293P
MD154913 NUT, AIR CLEANERWing,8 |
MD154913 |
from US $5.40 |
||
|
11293Q
|
11293Q
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
11293Q
|
11293Q
MS440518 NUT, ENG OIL COOLERWasher assembled,8 |
MS440518 |
from US $0.82 |
||
|
11297P
|
11297P
MD040913 CLAMP, AIR CLEANER56 |
MD040913 |
US $6.70 |
||
|
11298
|
11298
MF244201 BOLT, AIR CLEANER INR5x10 |
MF244201 |
US $2.66 |
||
