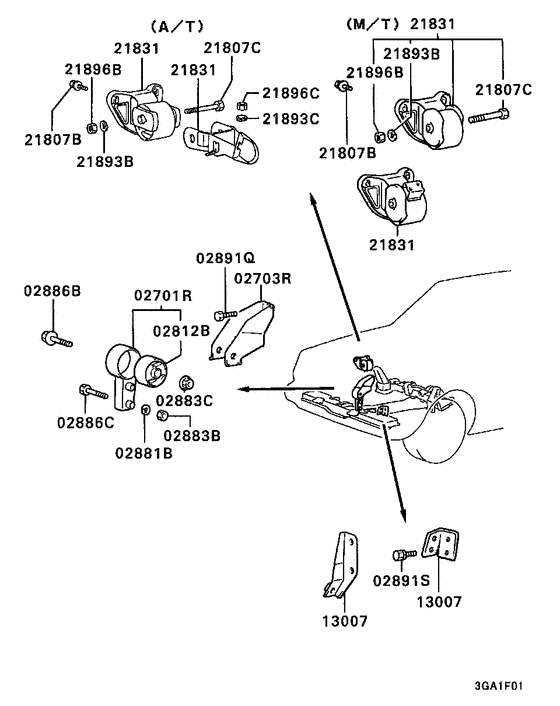

Engine mounting & support (RH..STOPPER ETC.) Diagram Mitsubishi SPACE WAGON
- Year
- 1986 - 1988
- Sales region
- EUR
- Note
- GLX(ANTI-POLL),5FM/T LHD
- drive
- 2WD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02701R
|
02701R
MB309535 BRACKET, ENG ROLL STOPPER, RHM/t |
MB309535 |
US $130.98 |
||
|
02703R
|
02703R
MD076732 BRACKET, CYLINDER BLOCK ROLL STOPPER, RH |
MD076732 |
US $87.32 |
||
|
02703R
|
02703R
MD092760 BRACKET, CYLINDER BLOCK ROLL STOPPER, RH |
MD092760 |
US $107.30 |
||
|
02812B
|
02812B
MB309485 CUSHION, ENG SUPPORT RODM/t |
MB309485 |
US $43.66 |
||
|
02881B
|
02881B
MS450043 WASHER, ENG RR MOUNTINGSpring,10 |
MS450043 |
from US $1.76 |
||
|
02883B
|
02883B
MF430122 NUT, ENG RR MOUNTING10 |
MF430122 |
from US $0.99 |
||
|
02883C
|
02883C
MB288462 NUT, ENG SUPPORT RODFlange self locking,10 |
MB288462 |
from US $2.07 |
||
| replacement | |||||
|
02883C
|
02883C
MB288462V
nut
|
MB288462V |
— | ||
|
02886B
|
02886B
MF140473
BOLT, ENG SUPPORT ROD
|
MF140473 |
— | ||
| replacement | |||||
|
02886B
|
02886B
MF911704 BOLT, COOLING FAN |
MF911704 |
from US $2.65 |
||
|
02886C
|
02886C
MF101297 BOLT, ENG RR MOUNTING10x70 |
MF101297 |
from US $2.77 |
||
|
02891Q
|
02891Q
MF241307 BOLTWasher assembled,12x25 |
MF241307 |
US $1.64 |
||
|
02891S
|
02891S
MF241279 BOLT, ENG RR MOUNTINGWasher assembled,10x18 |
MF241279 |
US $1.50 |
||
|
13007
|
13007
MD071081 BRACKET, EXHAUST PIPE SUPPORT |
MD071081 |
US $9.77 |
||
|
13007
|
13007
MD083606 BRACKET, EXHAUST PIPE SUPPORT |
MD083606 |
US $11.25 |
||
|
21807B
|
21807B
MB007176 BOLT, ENG RR MOUNTINGWasher assembled,10x25 |
MB007176 |
US $5.88 |
||
|
21807C
|
21807C
MF104927 BOLT, ENG FR MOUNTING12x100 |
MF104927 |
US $4.92 |
||
|
21831
|
21831
MB309552 BRACKET, T/M MOUNTING BODY SIDEM/t |
MB309552 |
US $90.28 |
||
|
21893B
|
21893B
MF450407 WASHERSpring,12 |
MF450407 |
from US $0.82 |
||
|
21893C
|
21893C
MF450407 WASHERSpring,12 |
MF450407 |
from US $0.82 |
||
|
21896B
|
21896B
MF430007 NUT12 |
MF430007 |
from US $1.29 |
||
|
21896C
|
21896C
MF430007 NUT12 |
MF430007 |
from US $1.29 |
||
