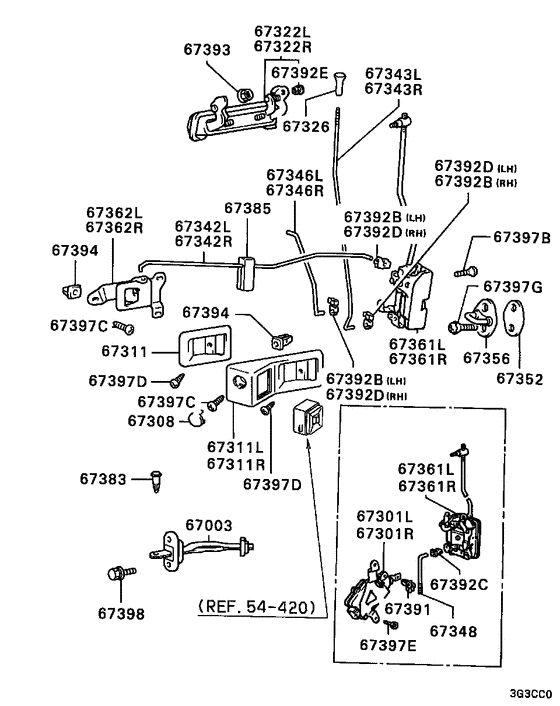

Front door locking Diagram Mitsubishi SPACE WAGON
- Year
- 1986 - 1988
- Sales region
- EUR
- Note
- GLX(ANTI-POLL),5FM/T LHD
- drive
- 2WD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67003
|
67003
MB257677
CHECK, FR DOOR
|
MB257677 |
— | ||
|
67301L
|
67301L
MB320451 ACTUATOR, FR DOOR LOCK, LH |
MB320451 |
US $167.24 |
||
|
67301R
|
67301R
MB320452 ACTUATOR,FR DOOR LOCK,RH |
MB320452 |
US $298.48 |
||
|
67308
|
67308
MB717515 CAP, FR DOOR INSIDE HANDLE COVER |
MB717515 |
US $4.74 |
||
|
67308
|
67308
MB717516 CAP, FR DOOR INSIDE HANDLE COVER |
MB717516 |
US $4.14 |
||
|
67311
|
67311
MB320527 COVER, FR DOOR INSIDE HANDLE |
MB320527 |
US $6.96 |
||
|
67311
|
67311
MB493301 COVER, FR DOOR INSIDE HANDLE |
MB493301 |
US $6.96 |
||
|
67311
|
67311
MB717481 COVER, FR DOOR INSIDE HANDLE |
MB717481 |
US $6.96 |
||
|
67311L
|
67311L
MB717511
COVER,FR DOOR INSIDE HANDLE,LH
|
MB717511 |
— | ||
|
67311L
|
67311L
MB717512
COVER,FR DOOR INSIDE HANDLE,LH
|
MB717512 |
— | ||
|
67322L
|
67322L
MB134411
HANDLE, FR DOOR OUTSIDE, LH
|
MB134411 |
— | ||
| replacement | |||||
|
67322L
|
67322L
MB321071 HANDLE, FR DOOR OUTSIDE, LH |
MB321071 |
US $91.66 |
||
|
67322L
|
67322L
MB321071 HANDLE, FR DOOR OUTSIDE, LH |
MB321071 |
US $91.66 |
||
|
67322R
|
67322R
MB134412 HANDLE, FR DOOR OUTSIDE, RH |
MB134412 |
US $48.10 |
||
|
67322R
|
67322R
MB321072 HANDLE, FR DOOR OUTSIDE, RH |
MB321072 |
US $91.66 |
||
|
67326
|
67326
MB321038
KNOB,FR DOOR INSIDE LOCK
|
MB321038 |
— | ||
|
67326
|
67326
MB461463
KNOB,FR DOOR INSIDE LOCK
|
MB461463 |
— | ||
|
67326
|
67326
MB717402
KNOB,FR DOOR INSIDE LOCK
|
MB717402 |
— | ||
|
67342L
|
67342L
MB258057 ROD, FR DOOR INSIDE HANDLE, LH |
MB258057 |
US $11.69 |
||
|
67342R
|
67342R
MB258058 ROD, FR DOOR INSIDE HANDLE, RH |
MB258058 |
US $11.69 |
||
|
67343L
|
67343L
MB258055 ROD, FR DOOR INSIDE LOCK, LH |
MB258055 |
US $10.06 |
||
|
67343R
|
67343R
MB258056 ROD, FR DOOR INSIDE LOCK, RH |
MB258056 |
US $10.06 |
||
|
67346L
|
67346L
MB258053 ROD, FR DOOR OUTSIDE LOCK, LH |
MB258053 |
US $10.06 |
||
|
67346R
|
67346R
MB258054 ROD, FR DOOR OUTSIDE LOCK, RH |
MB258054 |
US $10.06 |
||
|
67348
|
67348
MB258980 ROD, FR DOOR LOCK ACTUATOR |
MB258980 |
US $10.06 |
||
|
67352
|
67352
MB365679
SHIM, FR DOOR LATCH STRIKER
|
MB365679 |
— | ||
| replacement | |||||
|
67352
|
67352
MB574973 SHIM, FR DOOR LATCH STRIKER0.8 |
MB574973 |
US $5.20 |
||
|
67356
|
67356
MB365671
STRIKER, FR DOOR LATCH
|
MB365671 |
— | ||
| replacement | |||||
|
67356
|
67356
MB574965
STRIKER, FR DOOR LATCH
|
MB574965 |
— | ||
|
67361L
|
67361L
MB258059 LATCH, FR DOOR, LH |
MB258059 |
US $117.66 |
||
|
67361L
|
67361L
MB258969 LATCH, FR DOOR, LH |
MB258969 |
US $117.66 |
||
|
67361R
|
67361R
MB258060 LATCH, FR DOOR, RH |
MB258060 |
US $117.66 |
||
|
67361R
|
67361R
MB258970 LATCH, FR DOOR, RH |
MB258970 |
US $105.82 |
||
|
67362L
|
67362L
MB320545 HANDLE, FR DOOR INSIDE, LH |
MB320545 |
US $22.94 |
||
|
67362L
|
67362L
MB493294 HANDLE, FR DOOR INSIDE, LH |
MB493294 |
US $22.94 |
||
|
67362L
|
67362L
MB717478 HANDLE, FR DOOR INSIDE, LH |
MB717478 |
US $20.72 |
||
|
67362R
|
67362R
MB320546 HANDLE, FR DOOR INSIDE, RH |
MB320546 |
US $22.94 |
||
|
67362R
|
67362R
MB493296 HANDLE, FR DOOR INSIDE, RH |
MB493296 |
US $22.94 |
||
|
67362R
|
67362R
MB717479 HANDLE, FR DOOR INSIDE, RH |
MB717479 |
US $20.72 |
||
|
67383
|
67383
MB321177 SPRING PIN, FR DOOR PANEL6x27 |
MB321177 |
US $5.62 |
||
|
67383
|
67383
MB632510 SPRING PIN, FR DOOR LOCKING6x27 |
MB632510 |
US $3.56 |
||
|
67385
|
67385
MB134382 CUSHION, FR DOOR |
MB134382 |
US $3.97 |
||
|
67391
|
67391
MU481006
HOLDER, FR DOOR LOCK
|
MU481006 |
— | ||
| replacement | |||||
|
67391
|
67391
MU481239 HOLDER, RR DOOR LOCK |
MU481239 |
from US $2.13 |
||
|
67392B
|
67392B
MB257146 SNAP, FR DOOR LOCKING |
MB257146 |
US $4 |
||
|
67392C
|
67392C
MB421330 SNAP, FR DOOR LOCKING |
MB421330 |
US $4.74 |
||
|
67392D
|
67392D
MB257145 SNAP, FR DOOR LOCKING |
MB257145 |
US $4.05 |
||
|
67392E
|
67392E
MA166086 SNAP, FR DOOR LOCKING |
MA166086 |
US $3.83 |
||
|
67393
|
67393
MB133764
NUT, FUEL LINE
|
MB133764 |
— | ||
| replacement | |||||
|
67393
|
67393
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
67393
|
67393
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
67394
|
67394
MS480003 GROMMET, FUEL FILLER LID PANELScrew,6 |
MS480003 |
from US $1.11 |
||
|
67397B
|
67397B
MB365637 SCREW, FR DOOR LOCKINGWasher assembled,6x12 |
MB365637 |
US $2.66 |
||
|
67397B
|
67397B
MU340020 SCREW, FR DOOR LOCKINGWasher assembled(plus),6x12 |
MU340020 |
US $4.24 |
||
|
67397B
|
67397B
MU340025 SCREW, FR DOOR LOCKINGWasher assembled,6x12 |
MU340025 |
US $2.66 |
||
|
67397C
|
67397C
MF453046 SCREW, FUEL LINETapping,6x14 |
MF453046 |
US $2.60 |
||
|
67397D
|
67397D
MF457293
SCREW, FR DOOR LOCKING
|
MF457293 |
— | ||
|
67397E
|
67397E
MF360790 SCREW, M/T GEARSHIFT EQUIPWasher assembled,6x12 |
MF360790 |
US $1.92 |
||
|
67397G
|
67397G
MB365635
SCREW, FR DOOR LOCKING
|
MB365635 |
— | ||
| replacement | |||||
|
67397G
|
67397G
MU340023 SCREW, FR DOOR LOCKINGWasher assembled(plus),8x22.5 |
MU340023 |
from US $0.96 |
||
|
67397G
|
67397G
MU340023 SCREW, FR DOOR LOCKINGWasher assembled(plus),8x22.5 |
MU340023 |
from US $0.96 |
||
|
67397G
|
67397G
MU340028
SCREW, FR DOOR LOCKING
|
MU340028 |
— | ||
| replacement | |||||
|
67397G
|
67397G
MU340023 SCREW, FR DOOR LOCKINGWasher assembled(plus),8x22.5 |
MU340023 |
from US $0.96 |
||
|
67398
|
67398
MS240042 BOLT, RADIATORWasher assembled,6x20 |
MS240042 |
from US $0.49 |
||
|
67398
|
67398
MS240055 BOLT, RR BUMPERWasher assembled,6x20 |
MS240055 |
US $2.07 |
||
|
