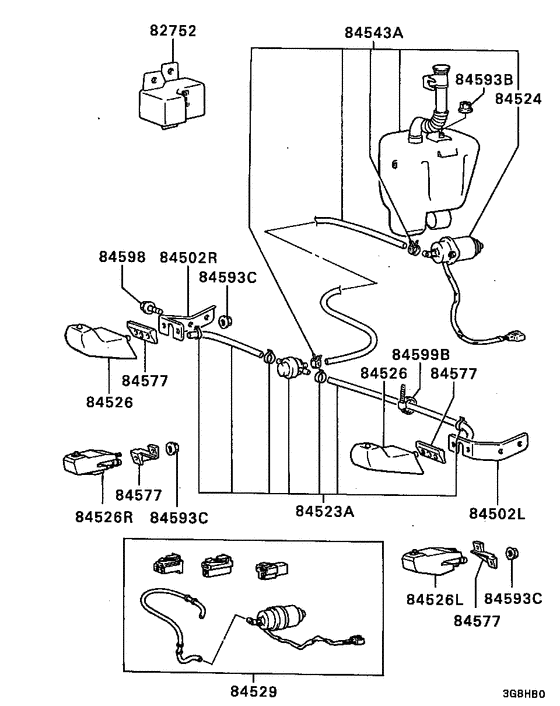

Headlamp wiper & washer (ALL) Diagram Mitsubishi SPACE WAGON
- Year
- 1986 - 1988
- Sales region
- EUR
- Note
- GLX(ANTI-POLL),5FM/T LHD
- drive
- 2WD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82752
|
82752
MB354831 RELAY, HEADLAMP WASHER35600-37273 |
MB354831 |
US $141.34 |
||
|
84502L
|
84502L
MB338389 BRACKET, HEADLAMP WASHER NOZZLE, LH |
MB338389 |
US $8.73 |
||
|
84502R
|
84502R
MB338390 BRACKET, HEADLAMP WASHER NOZZLE, RH |
MB338390 |
US $8.73 |
||
|
84523A
|
84523A
MB337923 HOSE & VALVE ASSY, HEADLAMP WASHER |
MB337923 |
US $93.98 |
||
|
84524
|
84524
MB543163
MOTOR,HEADLAMP WASHER
|
MB543163 |
— | ||
|
84526
|
84526
MB337925 NOZZLE, HEADLAMP WASHER |
MB337925 |
US $83.62 |
||
|
84543A
|
84543A
MB286158
TANK ASSY,HEADLAMP WASHER
|
MB286158 |
— | ||
|
84577
|
84577
MB337924 SPACER, HEADLAMP WASHER |
MB337924 |
US $2.96 |
||
|
84593B
|
84593B
MB133764
NUT, FUEL LINE
|
MB133764 |
— | ||
| replacement | |||||
|
84593B
|
84593B
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
84593B
|
84593B
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
84593C
|
84593C
MS440501 NUT, FUEL TANKWasher assembled,5 |
MS440501 |
from US $1.03 |
||
|
84598
|
84598
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
84599B
|
84599B
MB249338 BAND, ROCKER COVERL=129.5 |
MB249338 |
US $2.87 |
||
