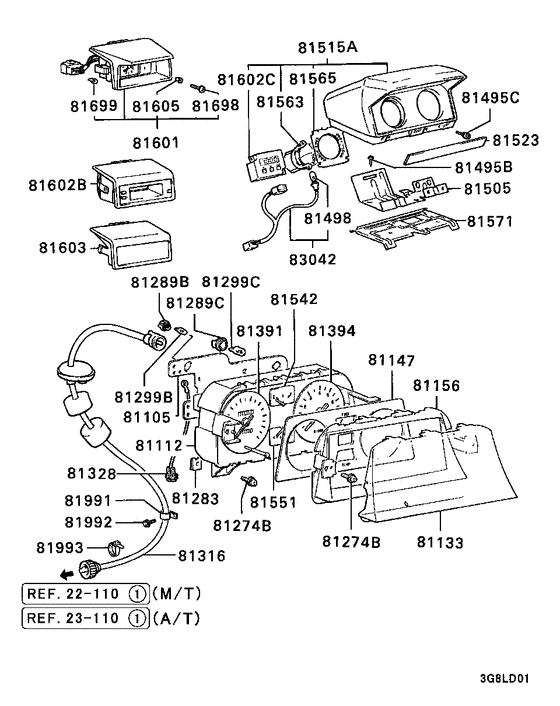

Meter,gauge & clock Diagram Mitsubishi SPACE WAGON
- Year
- 1986 - 1988
- Sales region
- EUR
- Note
- GLX(ANTI-POLL),5FM/T LHD
- drive
- 2WD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81105
|
81105
MB280604
BOARD,INSTRUMENT PANEL PRINTED CIRCUIT
|
MB280604 |
— | ||
|
81112
|
81112
MB424484
CASE,COMBINATION METER
|
MB424484 |
— | ||
|
81133
|
81133
MB135287
GLASS,COMBINATION METER
|
MB135287 |
— | ||
|
81147
|
81147
MB186434
PANEL,COMBINATION METER WINDOW BACK
|
MB186434 |
— | ||
|
81156
|
81156
MB186285
PLATE,COMBINATION METER WINDOW
|
MB186285 |
— | ||
|
81274B
|
81274B
MF453033 SCREW, TAPPING, 5x16Tapping,5x16 |
MF453033 |
from US $1.66 |
||
|
81283
|
81283
MB135995 NUT, FUEL FILLER LID LOCKINGSpring,5 |
MB135995 |
from US $1.46 |
||
|
81289C
|
81289C
MB045009 SOCKET, INSTRUMENT PANEL TRIM PLATE |
MB045009 |
from US $1.91 |
||
|
81299C
|
81299C
MB357314 BULB, GEARSHIFT LINK12v-3.4w |
MB357314 |
US $3.11 |
||
|
81316
|
81316
MB286148
CABLE,SPEEDOMETER
|
MB286148 |
— | ||
|
81328
|
81328
MB522214 CABLE, SPEEDOMETER REED SWITCH |
MB522214 |
US $12.28 |
||
|
81391
|
81391
MB280618
Speedometer
|
MB280618 |
— | ||
|
81391
|
81391
MB280619
Speedometer
|
MB280619 |
— | ||
|
81394
|
81394
MB281917 TACHOMETER |
MB281917 |
US $503.78 |
||
|
81542
|
81542
MB281982
GAUGE,FUEL
|
MB281982 |
— | ||
|
81551
|
81551
MB281983
GAUGE,WATER TEMPERATURE
|
MB281983 |
— | ||
|
81601
|
81601
MB217776 CLOCK, ANALOGUE |
MB217776 |
US $393.12 |
||
|
81601
|
81601
MB457214 CLOCK, ANALOGUE |
MB457214 |
US $400.40 |
||
|
81601
|
81601
MB717158 CLOCK, ANALOGUE |
MB717158 |
US $400.40 |
||
|
81602B
|
81602B
MB217778 CLOCK, DIGITAL |
MB217778 |
US $233.84 |
||
|
81602B
|
81602B
MB717159 CLOCK, DIGITAL |
MB717159 |
US $508.14 |
||
|
81605
|
81605
MB187045 KNOB, CLOCK CORRECTION |
MB187045 |
US $3.11 |
||
|
81698
|
81698
MB187046 SCREW, CLOCK1.4x5 |
MB187046 |
US $3.11 |
||
|
81699
|
81699
MB357314 BULB, GEARSHIFT LINK12v-3.4w |
MB357314 |
US $3.11 |
||
|
81991
|
81991
MF477023 CLIP, ENG RR MOUNTINGD=8 |
MF477023 |
US $1.78 |
||
|
81992
|
81992
MB249413
BOLT, FUEL LINE
|
MB249413 |
— | ||
| replacement | |||||
|
81992
|
81992
MB330946 BOLT, FUEL LINEWasher assembled,6x20 |
MB330946 |
US $1.92 |
||
|
