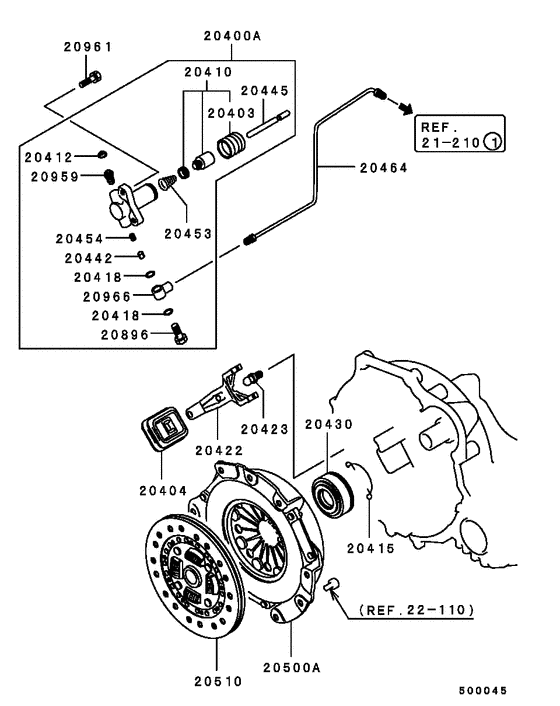

Clutch & clutch release (ALL) Diagram Mitsubishi SPACE WAGON
- Year
- 1989 - 1991
- Sales region
- EUR
- Note
- FULL TIME 4WD(MPI/ANTI-POLL),5FM/T LHD
- drive
- 4WD/4WD
- transmission
- 5FM/T
- grade
- FULL TIME
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20400A
|
20400A
MD716975 Cylinder Assy, Clutch Release |
MD716975 |
US $118.40 |
||
|
20403
|
20403
MD603464 BOOT, CLUTCH RELEASE CYLINDER |
MD603464 |
US $7.25 |
||
|
20404
|
20404
MD714142 BOOT, CLUTCH RELEASE FORK |
MD714142 |
US $11.54 |
||
|
20410
|
20410
MD997786
CYLINDER KIT, CLUTCH RELEASE
|
MD997786 |
— | ||
| replacement | |||||
|
20410
|
20410
MD979428 CYLINDER KIT, CLUTCH RELEASE |
MD979428 |
from US $11.15 |
||
|
20412
|
20412
MD701140 CAP, CLUTCH RELEASE CYLINDER BLEEDER SCREW |
MD701140 |
US $2.74 |
||
|
20415
|
20415
MD706185 CLIP, CLUTCH RELEASE BEARING RETURN |
MD706185 |
from US $3.97 |
||
|
20418
|
20418
MD603695
GASKET, CLUTCH RELEASE CYLINDER
|
MD603695 |
— | ||
| replacement | |||||
|
20418
|
20418
2324A056 GASKET, CLUTCH RELEASE CYLINDER |
2324A056 |
from US $1.99 |
||
|
20422
|
20422
MD714139 FORK, CLUTCH RELEASE |
MD714139 |
US $119.88 |
||
|
20423
|
20423
MD715650 FULCRUM, CLUTCH RELEASE FORK |
MD715650 |
from US $4.15 |
||
|
20430
|
20430
MD706180
BEARING, CLUTCH RELEASE
|
MD706180 |
— | ||
| replacement | |||||
|
20430
|
20430
MD749998 BEARING, CLUTCH RELEASEBall,62.2 |
MD749998 |
from US $29.07 |
||
|
20430
|
20430
MD722744 BEARING, CLUTCH RELEASEBall,65.6 |
MD722744 |
from US $52.67 |
||
|
20442
|
20442
MD603469
PLATE, CLUTCH RELEASE CYLINDER VALVE
|
MD603469 |
— | ||
|
20445
|
20445
MD603466 PUSH ROD, CLUTCH RELEASE CYLINDER |
MD603466 |
US $14.36 |
||
|
20445
|
20445
MD620232 PUSH ROD, CLUTCH RELEASE CYLINDER |
MD620232 |
US $14.50 |
||
|
20453
|
20453
MD603467 SPRING, CLUTCH RELEASE CYLINDER PISTON RETURN |
MD603467 |
US $3.28 |
||
|
20454
|
20454
MD603470
SPRING, CLUTCH RELEASE CYLINDER PLATE VALVE
|
MD603470 |
— | ||
|
20464
|
20464
MD719130 TUBE, CLUTCH RELEASE CYLINDER |
MD719130 |
US $8.73 |
||
|
20500A
|
20500A
MD721341 COVER ASSY, CLUTCH |
MD721341 |
US $198.32 |
||
|
20500A
|
20500A
MD732565 COVER ASSY, CLUTCH |
MD732565 |
US $189.44 |
||
|
20510
|
20510
MD721401 DISC, CLUTCH215 |
MD721401 |
US $189.44 |
||
|
20510
|
20510
MD728699 DISC, CLUTCH215 |
MD728699 |
US $189.44 |
||
|
20510
|
20510
MD737562
DISC,CLUTCH
|
MD737562 |
— | ||
|
20896
|
20896
MD603696 EYEBOLT, M/T CLUTCH CONTROL EQUIP |
MD603696 |
US $7.25 |
||
|
20959
|
20959
MD704268 PLUG, M/T CLUTCH CONTROL EQUIP |
MD704268 |
US $4.51 |
||
|
20966
|
20966
MD603694 UNION, M/T CLUTCH CONTROL EQUIP |
MD603694 |
US $10.66 |
||
|
20966
|
20966
MD621013
UNION, M/T CLUTCH CONTROL EQUIP
|
MD621013 |
— | ||
| replacement | |||||
|
20966
|
20966
2324A057 UNION, M/T CLUTCH CONTROL EQUIP |
2324A057 |
US $7.25 |
||
|
21 210
|
Clutch control
21 210
|
||||
|
21 210
|
Clutch control
21 210
|
||||
|
22 110
|
M/t case
22 110
|
||||
|
22 110
|
M/t case
22 110
|
||||
|
22 110
|
M/t case
22 110
|
||||
