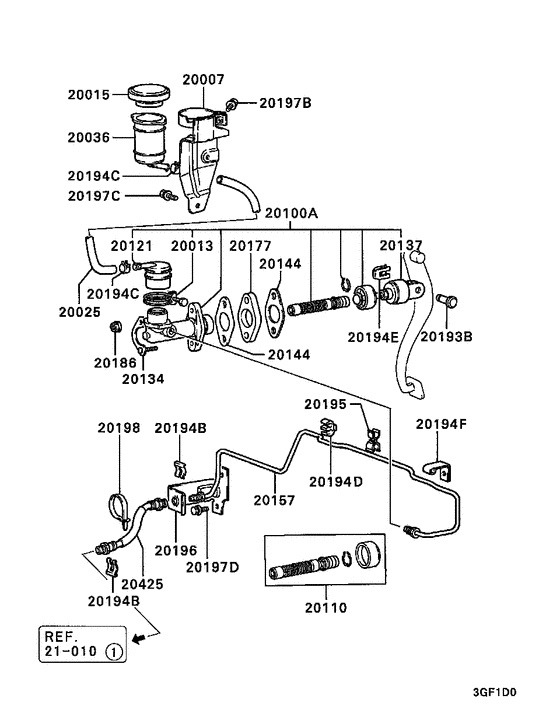

Clutch control (HYDRAULIC TYPE) Diagram Mitsubishi SPACE WAGON
- Year
- 1986 - 1990
- Sales region
- EUR
- Note
- GLX(TURBO),5FM/T LHD
- transmission
- 5FM/T
- grade
- GLX
- body
- VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20007
|
20007
MB012342
BRACKET,CLUTCH FLUID RESERVOIR
|
MB012342 |
— | ||
|
20013
|
20013
MB012155 BAND, CLUTCH FLUID RESERVOIR |
MB012155 |
US $6.02 |
||
|
20015
|
20015
MA143774
CAP, CLUTCH FLUID RESERVOIR
|
MA143774 |
— | ||
| replacement | |||||
|
20015
|
20015
MA161577
CAP, CLUTCH FLUID RESERVOIR
|
MA161577 |
— | ||
|
20015
|
20015
MB555135 CAP, CLUTCH FLUID RESERVOIR |
MB555135 |
from US $8.17 |
||
|
20025
|
20025
MB082024 HOSE, CLUTCH FLUID RESERVOIR9x1100 |
MB082024 |
from US $8 |
||
|
20036
|
20036
MB012095 RESERVOIR, CLUTCH FLUID |
MB012095 |
from US $8.88 |
||
|
20100A
|
20100A
MB012629
CYLINDER ASSY,CLUTCH MASTER
|
MB012629 |
— | ||
|
20110
|
20110
MB012161 CYLINDER KIT, CLUTCH MASTER |
MB012161 |
from US $64.68 |
||
|
20134
|
20134
MB012578
PLATE,CLUTCH M/CYL ATTACHING
|
MB012578 |
— | ||
|
20137
|
20137
MB012124 PUSH ROD, CLUTCH M/CYL |
MB012124 |
US $20.72 |
||
|
20144
|
20144
MB012077 SEAL, CLUTCH M/CYL |
MB012077 |
from US $1.50 |
||
|
20157
|
20157
MB012575
TUBE,CLUTCH M/CYL
|
MB012575 |
— | ||
|
20177
|
20177
MB012137 SPACER,CLUTCH M/CYL |
MB012137 |
US $15.54 |
||
|
20186
|
20186
MB133765 NUT, ENG FR MOUNTINGWasher assembled,8 |
MB133765 |
US $1.92 |
||
|
20193B
|
20193B
MB012614
PIN,CLUTCH M/CYL
|
MB012614 |
— | ||
|
20194C
|
20194C
MB058362 CLIP, FUEL VAPOR CONTROL LINE13.2 |
MB058362 |
US $3.28 |
||
|
20194D
|
20194D
MB082164 CLIP, FUEL RETURN LINE4.6 |
MB082164 |
US $3.97 |
||
|
20194E
|
20194E
MB366788
CLIP,CLUTCH M/CYL
|
MB366788 |
— | ||
|
20194F
|
20194F
MB012556
CLIP,CLUTCH M/CYL
|
MB012556 |
— | ||
|
20196
|
20196
MB012625
BRACKET,CLUTCH M/CYL TUBE
|
MB012625 |
— | ||
|
20197B
|
20197B
MF243623 BOLT, FLYWHEEL HOUSINGWasher assembled,6x14 |
MF243623 |
US $2.74 |
||
|
20197C
|
20197C
MF240050 BOLT, ROCKER COVERWasher assembled,8x14 |
MF240050 |
from US $1.07 |
||
|
20197D
|
20197D
MS240085 BOLT, ENG OIL LINEWasher assembled,8x20 |
MS240085 |
from US $1.07 |
||
|
20198
|
20198
MB249338 BAND, ROCKER COVERL=129.5 |
MB249338 |
US $2.87 |
||
|
20425
|
20425
MB012553
HOSE,CLUTCH RELEASE CYLINDER
|
MB012553 |
— | ||
|
20425
|
20425
MB012617
HOSE,CLUTCH RELEASE CYLINDER
|
MB012617 |
— | ||
|
21 010
|
Clutch & clutch release
21 010
|
||||
|
21 010
|
Clutch & clutch release
21 010
|
||||
