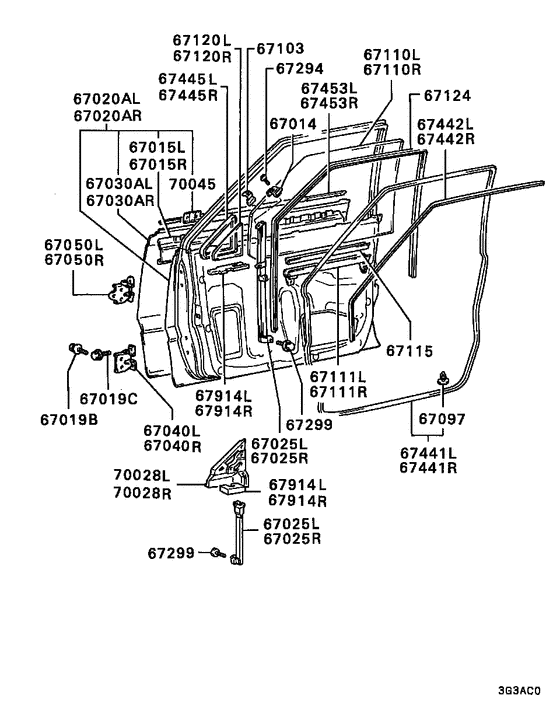

Front door panel & glass Diagram Mitsubishi SPACE WAGON
- Year
- 1986 - 1990
- Sales region
- EUR
- Note
- GLX(TURBO),5FM/T LHD
- transmission
- 5FM/T
- grade
- GLX
- body
- VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67015L
|
67015L
MB343089 REINFORCEMENT,FR DOOR BELT LINE,LH |
MB343089 |
US $80.66 |
||
|
67015R
|
67015R
MB343090 REINFORCEMENT,FR DOOR BELT LINE,RH |
MB343090 |
US $80.66 |
||
|
67019B
|
67019B
MB364894 BOLT, FR DOOR HINGEWasher assembled,10x25 |
MB364894 |
US $9.77 |
||
|
67019C
|
67019C
MB177701 BOLT, FR DOOR HINGEWasher assembled,8x25 |
MB177701 |
US $3.11 |
||
|
67019C
|
67019C
MU240075 BOLT, FR DOOR HINGEWasher assembled,8x25 |
MU240075 |
US $3.40 |
||
|
67020AL
|
67020AL
MB408075 PANEL ASSY, FR DOOR, LH |
MB408075 |
US $924.56 |
||
|
67020AL
|
67020AL
MB408077 PANEL ASSY, FR DOOR, LH |
MB408077 |
US $955.14 |
||
|
67020AR
|
67020AR
MB408076 PANEL ASSY, FR DOOR, RH |
MB408076 |
US $924.56 |
||
|
67020AR
|
67020AR
MB408078 PANEL ASSY, FR DOOR, RH |
MB408078 |
US $955.14 |
||
|
67025L
|
67025L
MB321521 SASH, FR DOOR WINDOW, LH |
MB321521 |
US $19.98 |
||
|
67025R
|
67025R
MB321522 SASH, FR DOOR WINDOW, RH |
MB321522 |
US $19.98 |
||
|
67030AL
|
67030AL
MB408087
PANEL,FR DOOR,OTR LH
|
MB408087 |
— | ||
|
67030AR
|
67030AR
MB408088
PANEL,FR DOOR,OTR RH
|
MB408088 |
— | ||
|
67040L
|
67040L
MB257953 HINGE, FR DOOR |
MB257953 |
US $48.10 |
||
|
67040L
|
67040L
MB257955 HINGE, FR DOOR |
MB257955 |
US $49.58 |
||
|
67040R
|
67040R
MB257954 HINGE, FR DOOR |
MB257954 |
US $48.10 |
||
|
67040R
|
67040R
MB257956 HINGE, FR DOOR |
MB257956 |
US $49.58 |
||
|
67050L
|
67050L
MB227222 HINGE, FR DOOR, LWR RH |
MB227222 |
US $59.51 |
||
|
67050L
|
67050L
MB227226 HINGE, FR DOOR, LWR RH |
MB227226 |
US $61.42 |
||
|
67050R
|
67050R
MB227221 HINGE, FR DOOR, LWR LH |
MB227221 |
US $61.42 |
||
|
67050R
|
67050R
MB227225 HINGE, FR DOOR, LWR LH |
MB227225 |
US $61.42 |
||
|
67097
|
67097
MB105489 CLIP, HOOD5.2 |
MB105489 |
US $4.10 |
||
|
67103
|
67103
MB134450 CATCH, FR DOOR WINDOW GLASS |
MB134450 |
US $4.88 |
||
|
67110L
|
67110L
MB257765 GLASS, FR DOOR WINDOW, LH |
MB257765 |
US $155.40 |
||
|
67110R
|
67110R
MB257766 GLASS, FR DOOR WINDOW, RH |
MB257766 |
US $155.40 |
||
|
67111L
|
67111L
MB257855 HOLDER, FR DOOR WINDOW GLASS |
MB257855 |
US $17.02 |
||
|
67111R
|
67111R
MB257856 HOLDER, FR DOOR WINDOW GLASS |
MB257856 |
US $17.02 |
||
|
67115
|
67115
MB364465 PAD, FR DOOR WINDOW GLASS720 |
MB364465 |
from US $7.18 |
||
|
67124
|
67124
MB257848 RUNCHANNEL, FR DOOR WINDOW GLASS |
MB257848 |
US $56.24 |
||
|
67299
|
67299
MB036396 BOLT, QTR WINDOWWasher assembled,6x10 |
MB036396 |
US $6.36 |
||
|
67441L
|
67441L
MB257787 WEATHERSTRIP, FR DOOR OPENING, LH |
MB257787 |
US $100.64 |
||
|
67441R
|
67441R
MB257788 WEATHERSTRIP, FR DOOR OPENING, RH |
MB257788 |
US $100.64 |
||
|
67442L
|
67442L
MB364155 WEATHERSTRIP, FR DOOR OPENING, INR LH |
MB364155 |
US $78.44 |
||
|
67442R
|
67442R
MB364156 WEATHERSTRIP, FR DOOR OPENING, INR RH |
MB364156 |
US $78.44 |
||
|
67453L
|
67453L
MB257549 WEATHERSTRIP, FR DOOR WINDOW, OTR LH |
MB257549 |
US $79.18 |
||
|
67453R
|
67453R
MB257550 WEATHERSTRIP, FR DOOR WINDOW, OTR RH |
MB257550 |
US $79.18 |
||
|
67914L
|
67914L
MB321992 PAD, FR DOOR DELTA |
MB321992 |
US $3.70 |
||
|
67914R
|
67914R
MB321992 PAD, FR DOOR DELTA |
MB321992 |
US $3.70 |
||
|
70028L
|
70028L
MB422945 SEAL, FR DOOR DELTARubber |
MB422945 |
US $32.56 |
||
|
70028R
|
70028R
MB422945 SEAL, FR DOOR DELTARubber |
MB422945 |
US $32.56 |
