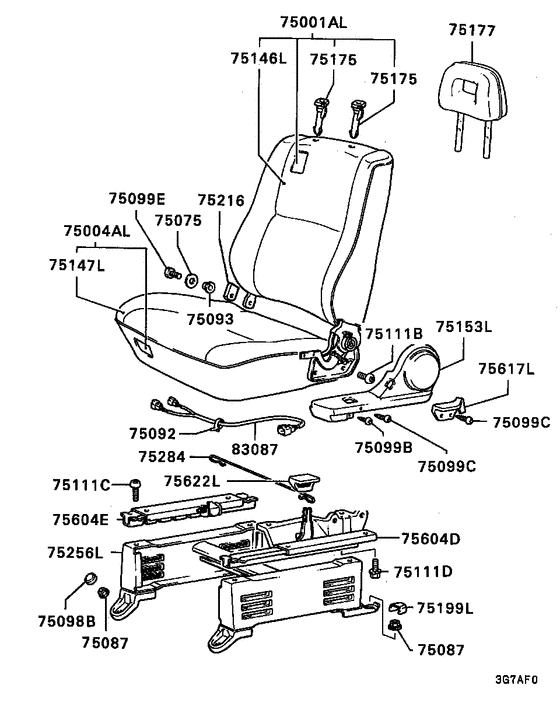

Front seat (LH) Diagram Mitsubishi SPACE WAGON
- Year
- 1986 - 1990
- Sales region
- EUR
- Note
- GLX(TURBO),5FM/T LHD
- transmission
- 5FM/T
- grade
- GLX
- body
- VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75001AL
|
75001AL
MB708656
BACK ASSY,FR SEAT,LH
|
MB708656 |
— | ||
|
75001AL
|
75001AL
MB708657
BACK ASSY,FR SEAT,LH
|
MB708657 |
— | ||
|
75001AL
|
75001AL
MB723825
BACK ASSY,FR SEAT,LH
|
MB723825 |
— | ||
|
75001AL
|
75001AL
MB723826
BACK ASSY,FR SEAT,LH
|
MB723826 |
— | ||
|
75001AL
|
75001AL
MB761901
BACK ASSY,FR SEAT,LH
|
MB761901 |
— | ||
|
75001AL
|
75001AL
MB761902
BACK ASSY,FR SEAT,LH
|
MB761902 |
— | ||
|
75004AL
|
75004AL
MB710621
CUSHION ASSY,FR SEAT,LH
|
MB710621 |
— | ||
|
75004AL
|
75004AL
MB710622
CUSHION ASSY,FR SEAT,LH
|
MB710622 |
— | ||
|
75004AL
|
75004AL
MB723829
CUSHION ASSY,FR SEAT,LH
|
MB723829 |
— | ||
|
75004AL
|
75004AL
MB723830
CUSHION ASSY,FR SEAT,LH
|
MB723830 |
— | ||
|
75004AL
|
75004AL
MB761909
CUSHION ASSY,FR SEAT,LH
|
MB761909 |
— | ||
|
75004AL
|
75004AL
MB761910
CUSHION ASSY,FR SEAT,LH
|
MB761910 |
— | ||
|
75075
|
75075
MB190981 WASHER, FR SEAT6 |
MB190981 |
US $2.96 |
||
|
75087
|
75087
MS440514 NUT, FR BUMPERWasher assembled,10 |
MS440514 |
US $2.07 |
||
|
75092
|
75092
MB592210 CLIP, FR SEAT |
MB592210 |
US $4.59 |
||
|
75093
|
75093
MB079118 BUSHING, FR SEAT12x5.5 |
MB079118 |
US $3.11 |
||
|
75098B
|
75098B
MB341418 CAP, FR SEAT |
MB341418 |
US $3.11 |
||
|
75098B
|
75098B
MB457509 CAP, FR SEAT |
MB457509 |
US $3.70 |
||
|
75098B
|
75098B
MB721824 CAP, FR SEAT |
MB721824 |
US $4.59 |
||
|
75099B
|
75099B
MF453075 SCREW, WINDSHIELD PANELTapping,4x8 |
MF453075 |
from US $1.77 |
||
|
75099C
|
75099C
MS200037 SCREW, FR SEATMachine,4x6 |
MS200037 |
from US $2.62 |
||
|
75099E
|
75099E
MB074040 SCREW, FR SEAT6x12 |
MB074040 |
US $3.85 |
||
|
75111B
|
75111B
MB144649 BOLT, FR SEAT10x21 |
MB144649 |
US $3.69 |
||
|
75111C
|
75111C
MA148040 BOLT, FR SEAT8x17 |
MA148040 |
US $4.14 |
||
|
75111D
|
75111D
MB190985 BOLT, FR SEAT8x20 |
MB190985 |
US $2.81 |
||
|
75146L
|
75146L
MB710617
COVER,FR SEAT BACK,LH
|
MB710617 |
— | ||
|
75146L
|
75146L
MB710618
COVER,FR SEAT BACK,LH
|
MB710618 |
— | ||
|
75146L
|
75146L
MB723827
COVER,FR SEAT BACK,LH
|
MB723827 |
— | ||
|
75146L
|
75146L
MB723828
COVER,FR SEAT BACK,LH
|
MB723828 |
— | ||
|
75146L
|
75146L
MB762333
COVER,FR SEAT BACK,LH
|
MB762333 |
— | ||
|
75146L
|
75146L
MB762334
COVER,FR SEAT BACK,LH
|
MB762334 |
— | ||
|
75147L
|
75147L
MB710625
COVER,FR SEAT CUSHION,LH
|
MB710625 |
— | ||
|
75147L
|
75147L
MB710626
COVER,FR SEAT CUSHION,LH
|
MB710626 |
— | ||
|
75147L
|
75147L
MB723833
COVER,FR SEAT CUSHION,LH
|
MB723833 |
— | ||
|
75147L
|
75147L
MB723834
COVER,FR SEAT CUSHION,LH
|
MB723834 |
— | ||
|
75147L
|
75147L
MB762345
COVER,FR SEAT CUSHION,LH
|
MB762345 |
— | ||
|
75147L
|
75147L
MB762346
COVER,FR SEAT CUSHION,LH
|
MB762346 |
— | ||
|
75153L
|
75153L
MB211979 COVER, FR SEAT SIDE SHIELD, LH |
MB211979 |
US $23.68 |
||
|
75153L
|
75153L
MB457737 COVER, FR SEAT SIDE SHIELD, LH |
MB457737 |
US $23.68 |
||
|
75153L
|
75153L
MB721776 COVER, FR SEAT SIDE SHIELD, LH |
MB721776 |
US $28.86 |
||
|
75175
|
75175
MB388493
GUIDE, FR SEAT HEADREST
|
MB388493 |
— | ||
|
75175
|
75175
MB446373 GUIDE, FR SEAT HEADRESTW/lock |
MB446373 |
US $9.62 |
||
|
75175
|
75175
MB715964 GUIDE, FR SEAT HEADRESTW/lock |
MB715964 |
US $14.36 |
||
|
75177
|
75177
MB498142 HEADREST, FR SEAT |
MB498142 |
US $266.40 |
||
|
75177
|
75177
MB498151
HEADREST,FR SEAT
|
MB498151 |
— | ||
|
75177
|
75177
MB721837
HEADREST,FR SEAT
|
MB721837 |
— | ||
|
75177
|
75177
MB761760
HEADREST,FR SEAT
|
MB761760 |
— | ||
|
75177
|
75177
MB761762
HEADREST,FR SEAT
|
MB761762 |
— | ||
|
75199L
|
75199L
MB341420 COVER, FR SEAT ANCHOR, RR LH |
MB341420 |
US $3.85 |
||
|
75199L
|
75199L
MB457510 COVER, FR SEAT ANCHOR, RR LH |
MB457510 |
US $3.55 |
||
|
75199L
|
75199L
MB721815 COVER, FR SEAT ANCHOR, RR LH |
MB721815 |
US $5.48 |
||
|
75216
|
75216
MB323916 PROTECTOR, FR SEAT HINGE |
MB323916 |
US $2.52 |
||
|
75256L
|
75256L
MB440774 STAND, FR SEAT, LH |
MB440774 |
US $198.32 |
||
|
75256L
|
75256L
MB457723 STAND, FR SEAT, LH |
MB457723 |
US $198.32 |
||
|
75256L
|
75256L
MB457735 STAND, FR SEAT, LH |
MB457735 |
US $229.40 |
||
|
75256L
|
75256L
MB457736 STAND, FR SEAT, LH |
MB457736 |
US $229.40 |
||
|
75256L
|
75256L
MB723814 STAND, FR SEAT, LH |
MB723814 |
US $141.34 |
||
|
75284
|
75284
MB342121 WIRE, FR SEAT |
MB342121 |
US $3.11 |
||
|
75604D
|
75604D
MB342806
ADJUSTER,FR SEAT SLIDE,LH
|
MB342806 |
— | ||
|
75604D
|
75604D
MB440597 ADJUSTER, FR SEAT SLIDE, LH |
MB440597 |
US $104.34 |
||
|
75604D
|
75604D
MB457563 ADJUSTER, FR SEAT SLIDE, LH |
MB457563 |
US $84.36 |
||
|
75604D
|
75604D
MB465617
ADJUSTER,FR SEAT SLIDE,LH
|
MB465617 |
— | ||
|
75604D
|
75604D
MB721786
ADJUSTER,FR SEAT SLIDE,LH
|
MB721786 |
— | ||
|
75604E
|
75604E
MB342808
ADJUSTER,FR SEAT SLIDE,LH
|
MB342808 |
— | ||
|
75604E
|
75604E
MB440599 ADJUSTER, FR SEAT SLIDE, LH |
MB440599 |
US $62.90 |
||
|
75604E
|
75604E
MB457564 ADJUSTER, FR SEAT SLIDE, LH |
MB457564 |
US $59.94 |
||
|
75604E
|
75604E
MB465618
ADJUSTER,FR SEAT SLIDE,LH
|
MB465618 |
— | ||
|
75604E
|
75604E
MB721787
ADJUSTER,FR SEAT SLIDE,LH
|
MB721787 |
— | ||
|
75617L
|
75617L
MB355220 KNOB, FR SEAT RECLINING ADJUSTER, LH |
MB355220 |
US $6.96 |
||
|
75617L
|
75617L
MB457739 KNOB, FR SEAT RECLINING ADJUSTER, LH |
MB457739 |
US $6.96 |
||
|
75617L
|
75617L
MB721827 KNOB, FR SEAT RECLINING ADJUSTER, LH |
MB721827 |
US $7.55 |
||
|
75622L
|
75622L
MB355198 KNOB, FR SEAT SLIDE ADJUSTER, LH |
MB355198 |
US $9.62 |
||
|
75622L
|
75622L
MB457747 KNOB, FR SEAT SLIDE ADJUSTER, LH |
MB457747 |
US $11.10 |
||
|
75622L
|
75622L
MB721825 KNOB, FR SEAT SLIDE ADJUSTER, LH |
MB721825 |
US $11.84 |
||
|
83087
|
83087
MB558543
HARNESS,SEAT HEATER
|
MB558543 |
— |
