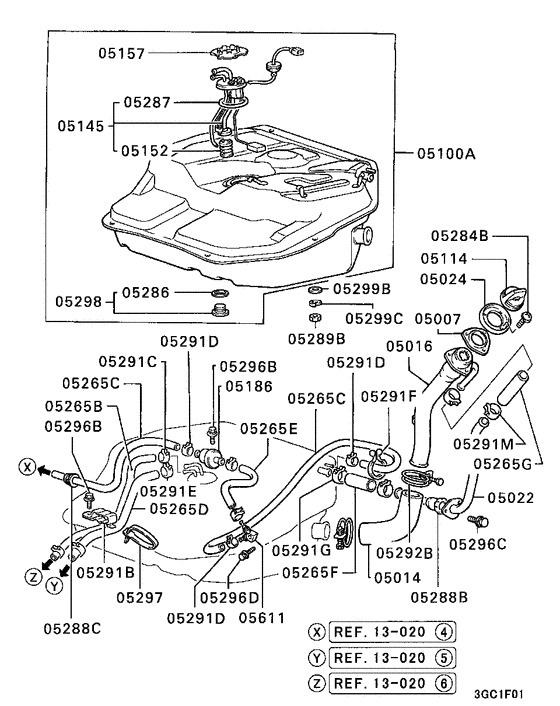

Fuel tank (-8611.3) Diagram Mitsubishi SPACE WAGON
- Year
- 1986 - 1990
- Sales region
- EUR
- Note
- GLX(TURBO),5FM/T LHD
- transmission
- 5FM/T
- grade
- GLX
- body
- VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05007
|
05007
MB247374 GASKET, FUEL FILLER NECK |
MB247374 |
US $5.77 |
||
|
05014
|
05014
MB247852
HOSE, FUEL FILLER
|
MB247852 |
— | ||
|
05016
|
05016
MB248401 NECK, FUEL FILLER |
MB248401 |
US $84.36 |
||
|
05022
|
05022
MB248402
PIPE,FUEL FILLER BREATHER
|
MB248402 |
— | ||
|
05100A
|
05100A
MB400352 FUEL TANK ASSY |
MB400352 |
US $541.63 |
||
|
05100A
|
05100A
MB503795
FUEL TANK ASSY
|
MB503795 |
— | ||
|
05114
|
05114
MB247387 CAP, FUEL TANK |
MB247387 |
from US $33.07 |
||
|
05145
|
05145
MB510787
GAUGE UNIT,FUEL TANK
|
MB510787 |
— | ||
|
05145
|
05145
MB527562
GAUGE UNIT,FUEL TANK
|
MB527562 |
— | ||
|
05152
|
05152
MB248746 FILTER, FUEL IN TANK |
MB248746 |
from US $5.27 |
||
|
05157
|
05157
MB248216 PLATE, FUEL TANK GAUGE |
MB248216 |
US $7.11 |
||
|
05186
|
05186
MB009102 VALVE, FUEL TANK VAPOR HOSE 2-WAY |
MB009102 |
US $30.78 |
||
|
05186
|
05186
MB248865
VALVE, FUEL TANK VAPOR HOSE 2-WAY
|
MB248865 |
— | ||
| replacement | |||||
|
05186
|
05186
MB845469 VALVE, FUEL TANK VAPOR HOSE 2-WAY |
MB845469 |
US $34.88 |
||
|
05265B
|
05265B
MS642596 HOSE, FUEL TANK6x2000 |
MS642596 |
from US $37.97 |
||
|
05265C
|
05265C
MS605158 HOSE, EMISSION SOLENOID VALVE6x2000 |
MS605158 |
from US $13.77 |
||
|
05265D
|
05265D
MS642896 HOSE, FUEL TANK8x2000 |
MS642896 |
US $49.58 |
||
|
05265E
|
05265E
MB503857
HOSE,FUEL TANK
|
MB503857 |
— | ||
|
05265F
|
05265F
MB247375 HOSE, FUEL TANK |
MB247375 |
US $9.18 |
||
|
05265G
|
05265G
MB329086
HOSE,FUEL TANK
|
MB329086 |
— | ||
|
05284B
|
05284B
MB400510
SCREW, FUEL TANK
|
MB400510 |
— | ||
| replacements | |||||
|
05284B
|
05284B
MU340019 SCREW, FUEL TANKWasher assembled,6x16 |
MU340019 |
US $4.51 |
||
|
05284B
|
05284B
MU340031
SCREW, FUEL TANK
|
MU340031 |
— | ||
|
05286
|
05286
MB129662
GASKET, FUEL TANK
|
MB129662 |
— | ||
|
05287
|
05287
MB248217 O-RING, FUEL TANK69.6 |
MB248217 |
US $7.80 |
||
|
05288B
|
05288B
MB247876 GROMMET, FUEL TANK22 |
MB247876 |
US $5.18 |
||
|
05288C
|
05288C
MB008421 GROMMET, FUEL TANK16 |
MB008421 |
US $6.51 |
||
|
05289B
|
05289B
MF430006 NUT10 |
MF430006 |
from US $1.35 |
||
|
05291B
|
05291B
MB075877 CLIP, FUEL TANK |
MB075877 |
US $6.07 |
||
|
05291C
|
05291C
MS660163 CLIP, ROCKER COVERD=11.6 |
MS660163 |
from US $0.84 |
||
|
05291D
|
05291D
MS660169 CLIP, FUEL TANKD=10 |
MS660169 |
from US $0.92 |
||
|
05291E
|
05291E
MS660164 CLAMP, T/M OIL COOLER LINED=13.1 |
MS660164 |
from US $1.13 |
||
|
05291F
|
05291F
MB248414 CLIP, FUEL TANK30 |
MB248414 |
US $3.40 |
||
|
05291G
|
05291G
MS660173 CLIP, FUEL TANKD=18.5 |
MS660173 |
from US $1.54 |
||
|
05291M
|
05291M
MF661011 CLAMP, FUEL TANKD=22 |
MF661011 |
US $2.33 |
||
|
05292B
|
05292B
MS660031 CLAMP, FUEL TANK52 |
MS660031 |
from US $2.81 |
||
|
05296B
|
05296B
MF240025 BOLT, ENG OIL PUMP INRWasher assembled,6x16 |
MF240025 |
US $1.92 |
||
|
05296C
|
05296C
MF243649 BOLT, FLYWHEEL HOUSINGWasher assembled,8x16 |
MF243649 |
from US $0.59 |
||
|
05296D
|
05296D
MF243630 BOLT, FUEL TANKWasher assembled,6x30 |
MF243630 |
US $2.33 |
||
|
05298
|
05298
MB129660
PLUG, FUEL TANK
|
MB129660 |
— | ||
|
05299B
|
05299B
MF450006 WASHER, CYLINDER HEADPlain,10 |
MF450006 |
from US $1.01 |
||
|
05299C
|
05299C
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.41 |
||
|
05611
|
05611
MB052878 CHECK VALVE, FUEL VAPOR CONTROL |
MB052878 |
US $12.28 |
||
|
13 020
|
Fuel line & vapor gas control
13 020
|
||||
|
13 020
|
Fuel line & vapor gas control
13 020
|
||||
