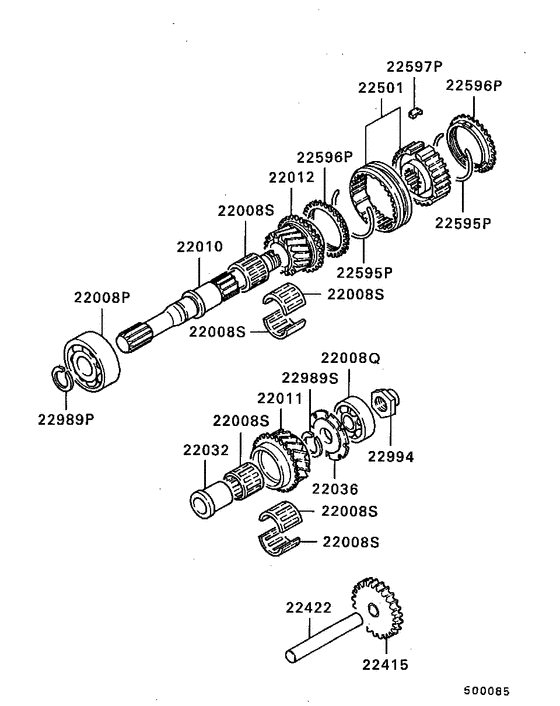

M/t gear (-8805.3 (IN/SHAFT)) Diagram Mitsubishi SPACE WAGON
- Year
- 1986 - 1990
- Sales region
- EUR
- Note
- GLX(TURBO),5FM/T LHD
- transmission
- 5FM/T
- grade
- GLX
- body
- VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22008P
|
22008P
MD700207
BEARING, M/T INPUT SHAFT
|
MD700207 |
— | ||
| replacement | |||||
|
22008P
|
22008P
2526A001 BEARING, M/T INPUT SHAFTBall,68 |
2526A001 |
from US $27.69 |
||
|
22008Q
|
22008Q
MD706496 BEARING, M/T INPUT SHAFTBall,52 |
MD706496 |
US $28.12 |
||
|
22008S
|
22008S
MD712326 BEARING, M/T INPUT HIGH GEARNeedle,33 |
MD712326 |
US $11.69 |
||
|
22010
|
22010
MD724243 SHAFT, M/T INPUT |
MD724243 |
US $281.20 |
||
|
22010
|
22010
MD724954 SHAFT, M/T INPUT |
MD724954 |
US $168.72 |
||
|
22010
|
22010
MD730508
SHAFT,M/T INPUT
|
MD730508 |
— | ||
|
22010
|
22010
MD730909
SHAFT,M/T INPUT
|
MD730909 |
— | ||
|
22010
|
22010
MD733160 SHAFT, M/T INPUT |
MD733160 |
US $205.72 |
||
|
22011
|
22011
MD717173 GEAR, M/T INPUT SHAFT HIGH SPEEDN=22 |
MD717173 |
US $152.44 |
||
|
22012
|
22012
MD716682 GEAR, M/T INPUT SHAFT LOW SPEEDN=19 |
MD716682 |
US $155.40 |
||
|
22032
|
22032
MD724956 SLEEVE, M/T INPUT SHAFT HIGH GEAR BEARING |
MD724956 |
US $40.70 |
||
|
22036
|
22036
MD724960 SPACER, M/T INPUT SHAFT5.5 |
MD724960 |
US $7.25 |
||
|
22415
|
22415
MD710065 GEAR, M/T REV IDLERN=26 |
MD710065 |
US $114.70 |
||
|
22415
|
22415
MD717748 GEAR, M/T REV IDLERN=26 |
MD717748 |
US $115.44 |
||
|
22415
|
22415
MD733605 GEAR, M/T REV IDLERN=26 |
MD733605 |
US $94.72 |
||
|
22422
|
22422
MD700222 SHAFT, M/T REV IDLER GEAR |
MD700222 |
US $22.20 |
||
|
22422
|
22422
MD717851 SHAFT, M/T REV IDLER GEAR |
MD717851 |
US $33.30 |
||
|
22501
|
22501
MD706933 HUB & SLEEVE, M/T H-L SYNCH |
MD706933 |
US $195.36 |
||
|
22595P
|
22595P
MD706675 SPRING, M/T H-L SYNCH KEY |
MD706675 |
US $3.40 |
||
|
22596P
|
22596P
MD721414 RING, M/T HIGH SPEED GEAR SYNCH |
MD721414 |
US $65.12 |
||
|
22597P
|
22597P
MD706673 KEY, M/T SYNCH |
MD706673 |
US $6.51 |
||
|
22989P
|
22989P
MD706537 SNAP RING, M/T POWER TRAIN2.24 |
MD706537 |
US $5.88 |
||
|
22989P
|
22989P
MD706538 SNAP RING, M/T POWER TRAIN2.31 |
MD706538 |
US $5.88 |
||
|
22989P
|
22989P
MD706539 SNAP RING, M/T POWER TRAIN2.38 |
MD706539 |
from US $5.66 |
||
|
22989S
|
22989S
MD725066 SNAP RING, M/T POWER TRAIN1.82 |
MD725066 |
US $7.55 |
||
|
22989S
|
22989S
MD725067 SNAP RING, M/T POWER TRAIN1.89 |
MD725067 |
US $7.55 |
||
|
22989S
|
22989S
MD725068 SNAP RING, M/T POWER TRAIN1.96 |
MD725068 |
US $7.55 |
||
|
22989S
|
22989S
MD725069 SNAP RING, M/T POWER TRAIN2.03 |
MD725069 |
US $7.55 |
||
|
22989S
|
22989S
MD725070 SNAP RING, M/T POWER TRAIN2.10 |
MD725070 |
US $7.55 |
||
|
22994
|
22994
MD718035 NUT, M/T POWER TRAINLock,22 |
MD718035 |
US $11.63 |
||
|
22994
|
22994
MD722751 NUT, M/T POWER TRAINLock,20 |
MD722751 |
US $10.95 |
||
