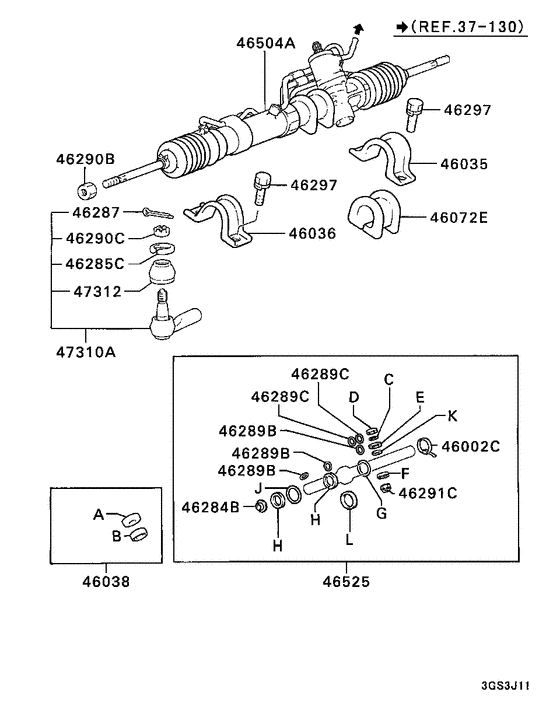

Steering gear (P/S INSTALLING PARTS -8707.3) Diagram Mitsubishi SPACE WAGON
- Year
- 1986 - 1990
- Sales region
- EUR
- Note
- GLX(TURBO),5FM/T LHD
- transmission
- 5FM/T
- grade
- GLX
- body
- VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46002C
|
46002C
MB122139 BAND, INDEPENDENT RR SUSP ARM270 |
MB122139 |
from US $4.60 |
||
|
46002C
|
46002C
MB243333 BAND, STEERING GEAR |
MB243333 |
US $9.18 |
||
|
46002C
|
46002C
MB350742 BAND, STEERING GEAR |
MB350742 |
US $8.73 |
||
|
46035
|
46035
MB192468 BRACKET, STEERING GEAR MOUNTING GEAR SIDE |
MB192468 |
US $6.96 |
||
|
46035
|
46035
MB315955 BRACKET, STEERING GEAR MOUNTING GEAR SIDE |
MB315955 |
US $8.88 |
||
|
46036
|
46036
MB192968 BRACKET,STEERING GEAR MOUNTING ROD SIDE |
MB192968 |
US $7.99 |
||
|
46036
|
46036
MB315956 BRACKET, STEERING GEAR MOUNTING ROD SIDE |
MB315956 |
US $8.58 |
||
|
46038
|
46038
MB243343 BEARING KIT, STEERING GEAR PINION |
MB243343 |
US $76.22 |
||
|
46072E
|
46072E
MB192466 CUSHION, STEERING GEAR |
MB192466 |
US $8.58 |
||
|
46284B
|
46284B
MB243330 WASHER, STEERING GEAR |
MB243330 |
US $6.22 |
||
|
46284B
|
46284B
MB266164 WASHER, STEERING GEAR |
MB266164 |
from US $6.49 |
||
|
46285C
|
46285C
MT191139 SNAP RING, FR WHEEL HUB22 |
MT191139 |
US $5.34 |
||
|
46287
|
46287
MF472054 PIN, ENG OIL PUMP INRSplit,2.5x25 |
MF472054 |
US $1.37 |
||
|
46289B
|
46289B
MB192717 O-RING, P/S OIL PUMP6 |
MB192717 |
from US $1.72 |
||
|
46289B
|
46289B
MB192820 O-RING, STEERING GEAR INR |
MB192820 |
US $4.24 |
||
|
46289C
|
46289C
MB192820 O-RING, STEERING GEAR INR |
MB192820 |
US $4.24 |
||
|
46290B
|
46290B
MF430008 NUTNUT, 14, 4T |
MF430008 |
from US $0.98 |
||
|
46290C
|
46290C
MB122128 NUT, FR SUSP LWR ARMSlotted,6t,10 |
MB122128 |
US $3.56 |
||
|
46291C
|
46291C
MB243335 NUT, STEERING GEAR |
MB243335 |
US $5.47 |
||
|
46297
|
46297
MF241305 BOLT, STEERING GEARWasher assembled,12x20 |
MF241305 |
US $2.37 |
||
|
46504A
|
46504A
MB350755
GEAR & LINK ASSY,P/S
|
MB350755 |
— | ||
|
46504A
|
46504A
MB553562
GEAR & LINK ASSY,P/S
|
MB553562 |
— | ||
|
46525
|
46525
MB351539 SEAL KIT, P/S GEAR |
MB351539 |
US $149.48 |
||
|
46525
|
46525
MB553224 SEAL KIT, P/S GEAR |
MB553224 |
US $126.54 |
||
|
46525
|
46525
MB815182 SEAL KIT, P/S GEAR |
MB815182 |
US $128.76 |
||
|
47310A
|
47310A
MB192430
END ASSY, TIE ROD
|
MB192430 |
— | ||
| replacement | |||||
|
47310A
|
47310A
MB912519 END ASSY, TIE ROD |
MB912519 |
from US $32.31 |
||
|
47310A
|
47310A
MB564991
END ASSY, TIE ROD
|
MB564991 |
— | ||
| replacement | |||||
|
47310A
|
47310A
MB912519 END ASSY, TIE ROD |
MB912519 |
from US $32.31 |
||
|
47312
|
47312
MB192988 COVER, TIE ROD END |
MB192988 |
US $19.84 |
||
|
47312
|
47312
MB616023
COVER, TIE ROD END
|
MB616023 |
— | ||
| replacement | |||||
|
47312
|
47312
4422A137 TIE ROD END BOOT |
4422A137 |
US $19.20 |
||
|
37 130
|
Power steering oil line
37 130
|
||||
